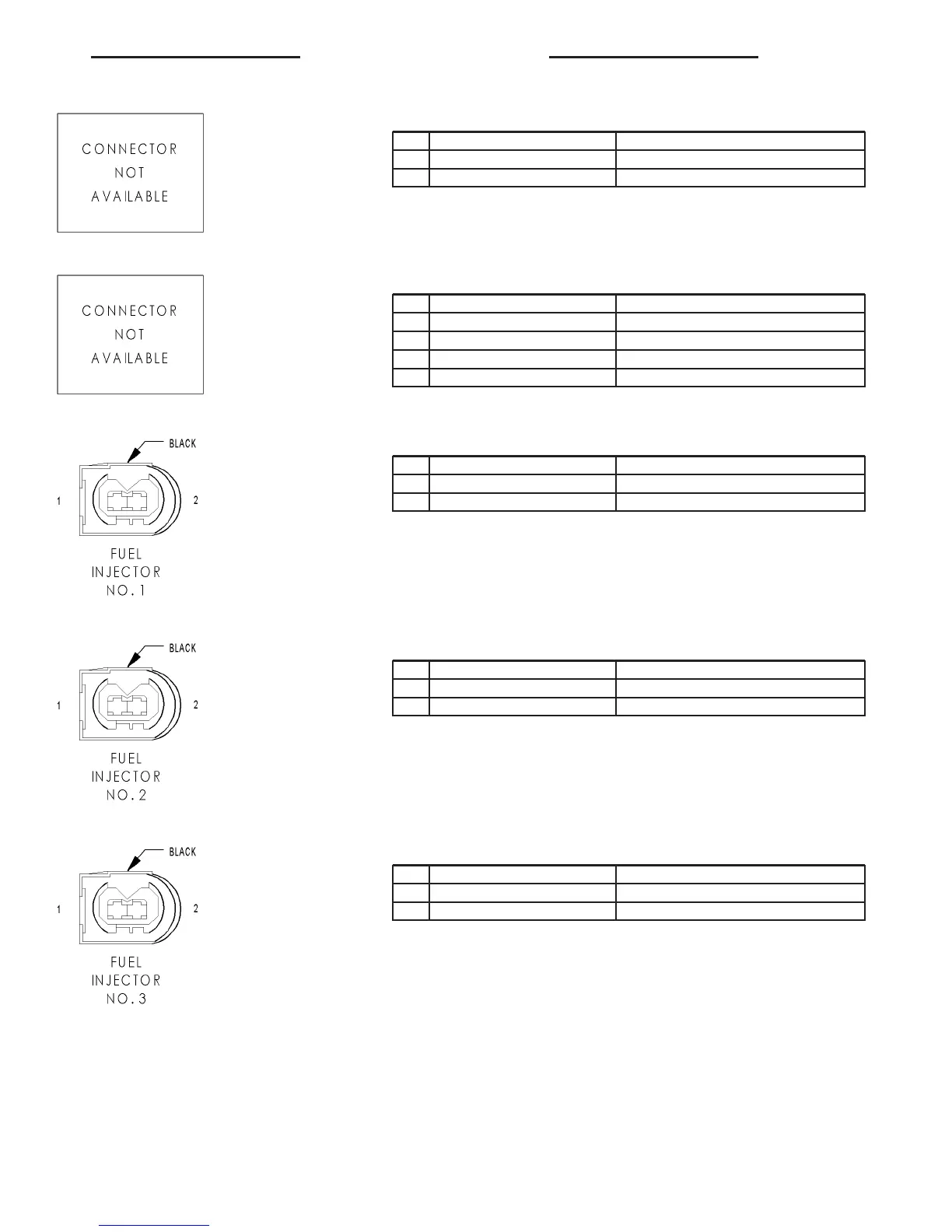

EVAPORATOR TEMPERATURE SENSOR
CAV CIRCUIT FUNCTION
1 18BR/DG EVAPORATOR TEMPERATURE SENSOR SIGNAL
2 18BR/BL SENSOR GROUND
FOG LAMP SWITCH
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
3 16RD FUSED B(+)
7 18RD/BK FOG LAMP RELAY CONTROL
10 16BR GROUND
FUEL INJECTOR NO. 1 - BLACK
CAV CIRCUIT FUNCTION
1 14BK/BL FUEL INJECTOR NO. 1 CONTROL
2 14BK COMMON INJECTOR DRIVER NO. 1
FUEL INJECTOR NO. 2 - BLACK
CAV CIRCUIT FUNCTION
1 14BK/VT FUEL INJECTOR NO. 2 CONTROL
2 14BL COMMON INJECTOR DRIVER NO. 2
FUEL INJECTOR NO. 3 - BLACK
CAV CIRCUIT FUNCTION
1 14BK/RD FUEL INJECTOR NO. 3 CONTROL
2 14BK COMMON INJECTOR DRIVER NO. 1
VA 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 35
