DOOR - FRONT
TABLE OF CONTENTS
page page
CHECK
REMOVAL .............................13
INSTALLATION .........................13
DOOR
REMOVAL .............................14
INSTALLATION .........................14
ADJUSTMENTS
ADJUSTMENT ........................15
DOOR GLASS
REMOVAL .............................15
INSTALLATION .........................15
EXTERIOR HANDLE
REMOVAL .............................16
INSTALLATION .........................16
HINGE
REMOVAL .............................17
INSTALLATION .........................17
LATCH
REMOVAL .............................18
INSTALLATION .........................18
LATCH STRIKER
REMOVAL .............................18
INSTALLATION .........................18
LOCK CYLINDER
REMOVAL .............................18
INSTALLATION .........................18
TRIM PANEL
REMOVAL .............................19
INSTALLATION .........................20
WINDOW REGULATOR - POWER
REMOVAL .............................20
INSTALLATION .........................21
WINDOW REGULATOR - MANUAL
REMOVAL .............................22
INSTALLATION .........................23
CHECK
REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Remove trim panel. (Refer to 23 - BODY/DOOR
- FRONT/TRIM PANEL - REMOVAL)
(3) Remove a-pillar bolts. (Fig. 1)
(4) Remove the bolt/nut and remove check bracket.
(Fig. 2)
(5) Remove the door fasteners and remove check
from door.
INSTALLATION
(1) Install check through door opening and install
the fasteners.

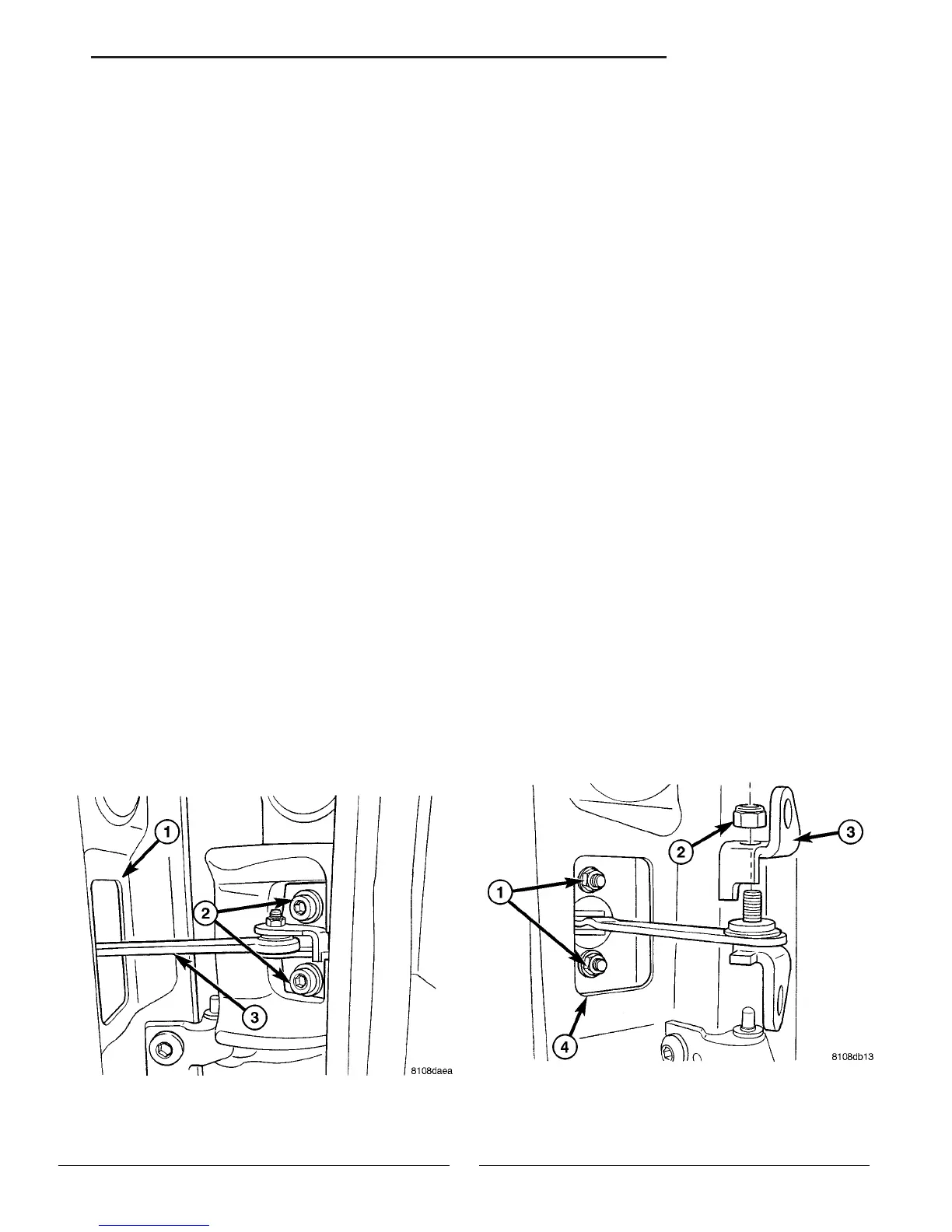

Fig. 1 FRONT DOOR CHECK - BODY
1 - DOOR
2 - A-PILLAR BOLTS
3 - DOOR CHECK
Fig. 2 FRONT DOOR CHECK - DOOR
1 - DOOR FASTENERS
2 - CHECK BRACKET NUT
3 - CHECK BRACKET
4 - DOOR OPENING
VA DOOR - FRONT 23 - 13
