TRIM PANEL
REMOVAL
(1) Disconnect and isolate battery negative cable.
(2) Using a small flat bladed tool or equivalent,
press retaining clip upward through cutout in handle
cover and remove cover. (Fig. 17)
(3) Remove switch bezel and disconnect electrical
connectors.
(4) Remove the screws. (Fig. 18)
(5) Remove mounting ring and remove window
crank, if equipped.
(6) Open pocket door. (Fig. 19)

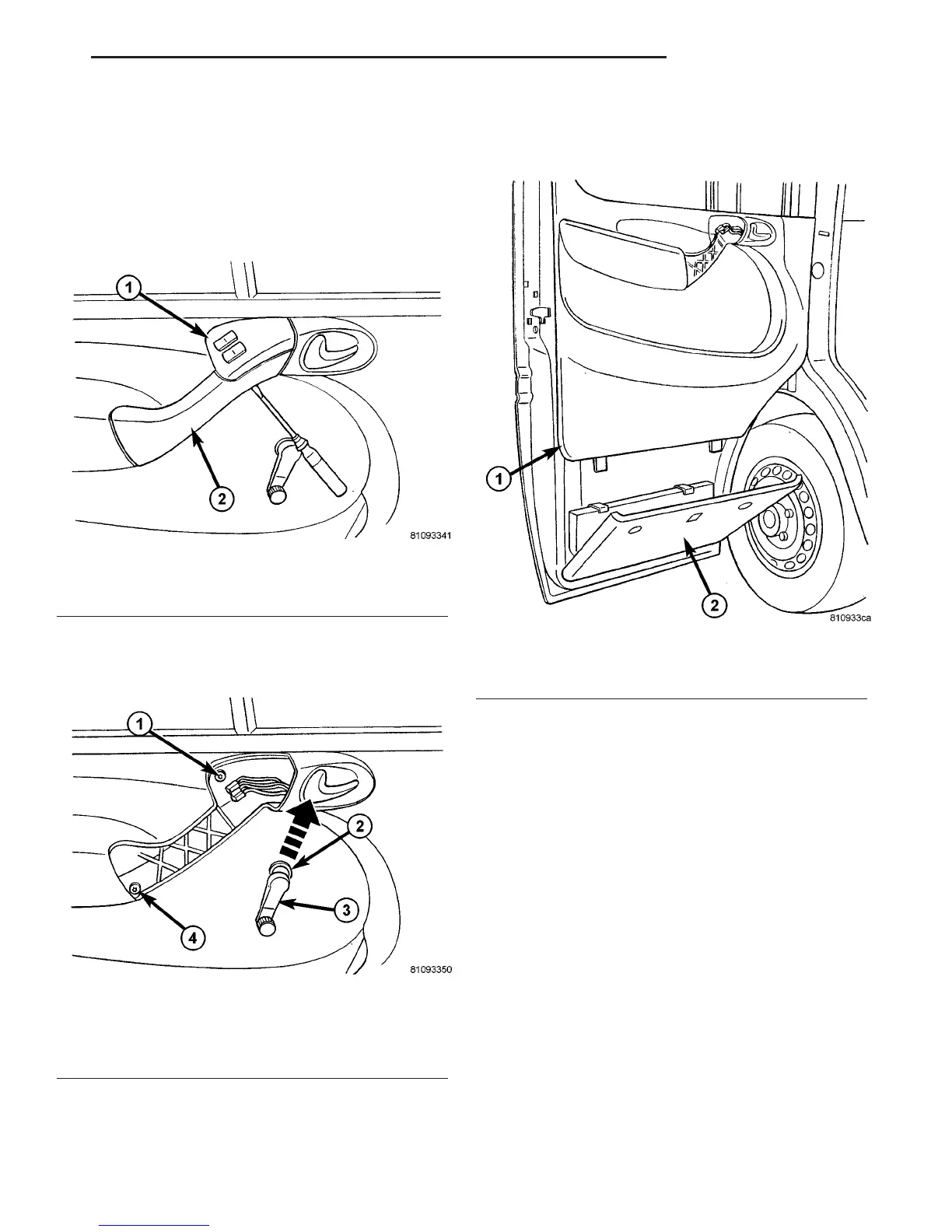

Fig. 17 TRIM PANEL HANDLE
1 - SWITCH BEZEL
2 - HANDLE COVER
Fig. 18 TRIM PANEL FASTENERS
1 - UPPER SCREW
2 - WINDOW CRANK MOUNTING RING
3 - WINDOW CRANK
4 - LOWER SCREW
Fig. 19 TRIM PANEL
1 - TRIM PANEL
2 - DOOR POCKET
VA DOOR - FRONT 23 - 19
