RESTRAINTS
DESCRIPTION
An occupant restraint system is standard factory-
installed safety equipment on this model. Available
occupant restraints for this model include both active
and passive types. Active restraints are those which
require the vehicle occupants to take some action to
employ, such as fastening a seat belt; while passive
restraints require no action by the vehicle occupants
to be employed (Fig. 1).

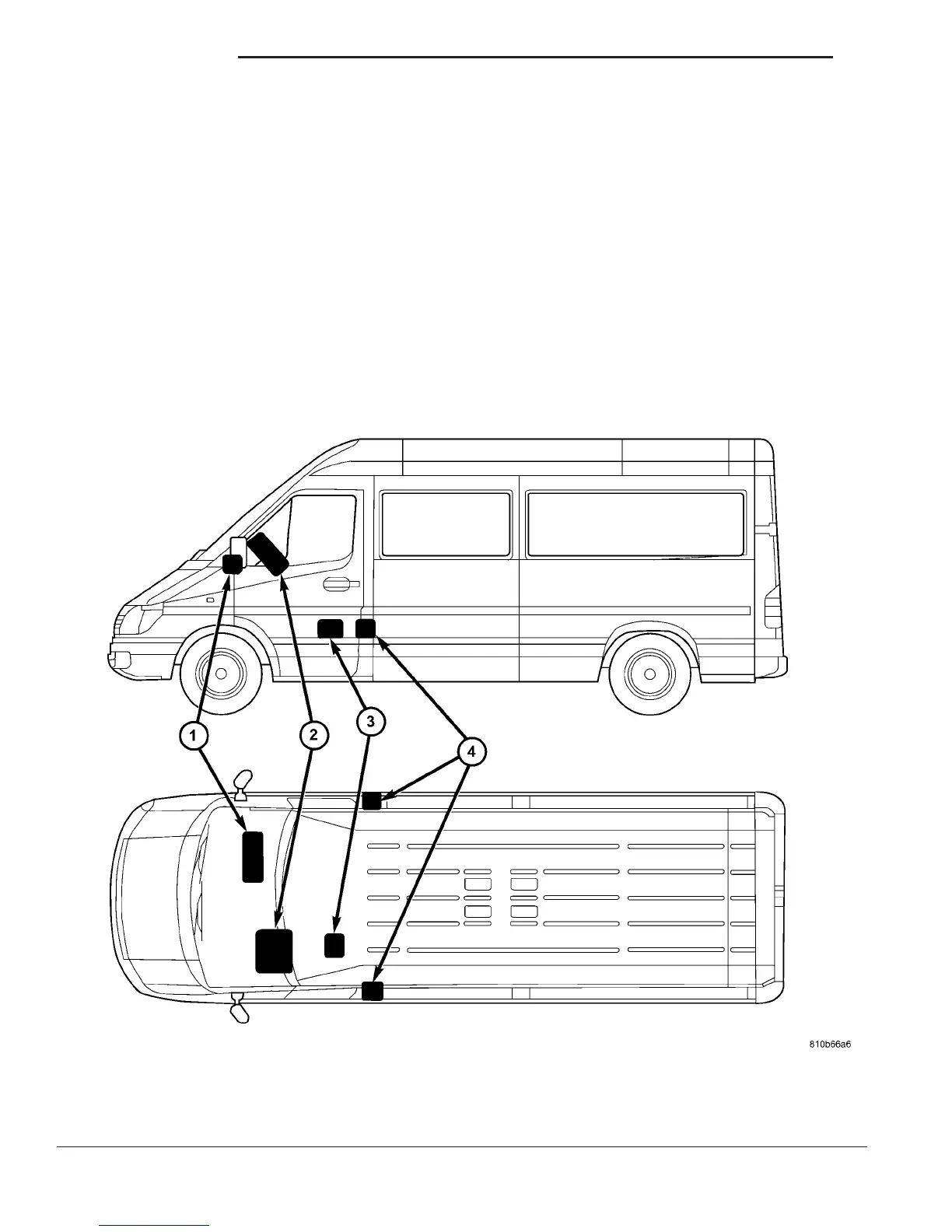

Fig. 1 Supplemental Restraint System
1 - PASSENGER AIRBAG (OPTIONAL)
2 - DRIVER AIRBAG
3 - AIRBAG CONTROL MODULE
7 - SEAT BELT TENSIONER (DRIVER SIDE - STANDARD,
PASSENGER SIDE - OPTIONAL WITH PASSENGER AIRBAG
ONLY)
8O - 2 RESTRAINTS VA
