(14) Remove timing chain to camshaft sprocket tie
straps.
(15) Connect new timing chain and old timing
chain with assembly link, assembly plate and locking
element, and secure (Fig. 74) (Fig. 75).

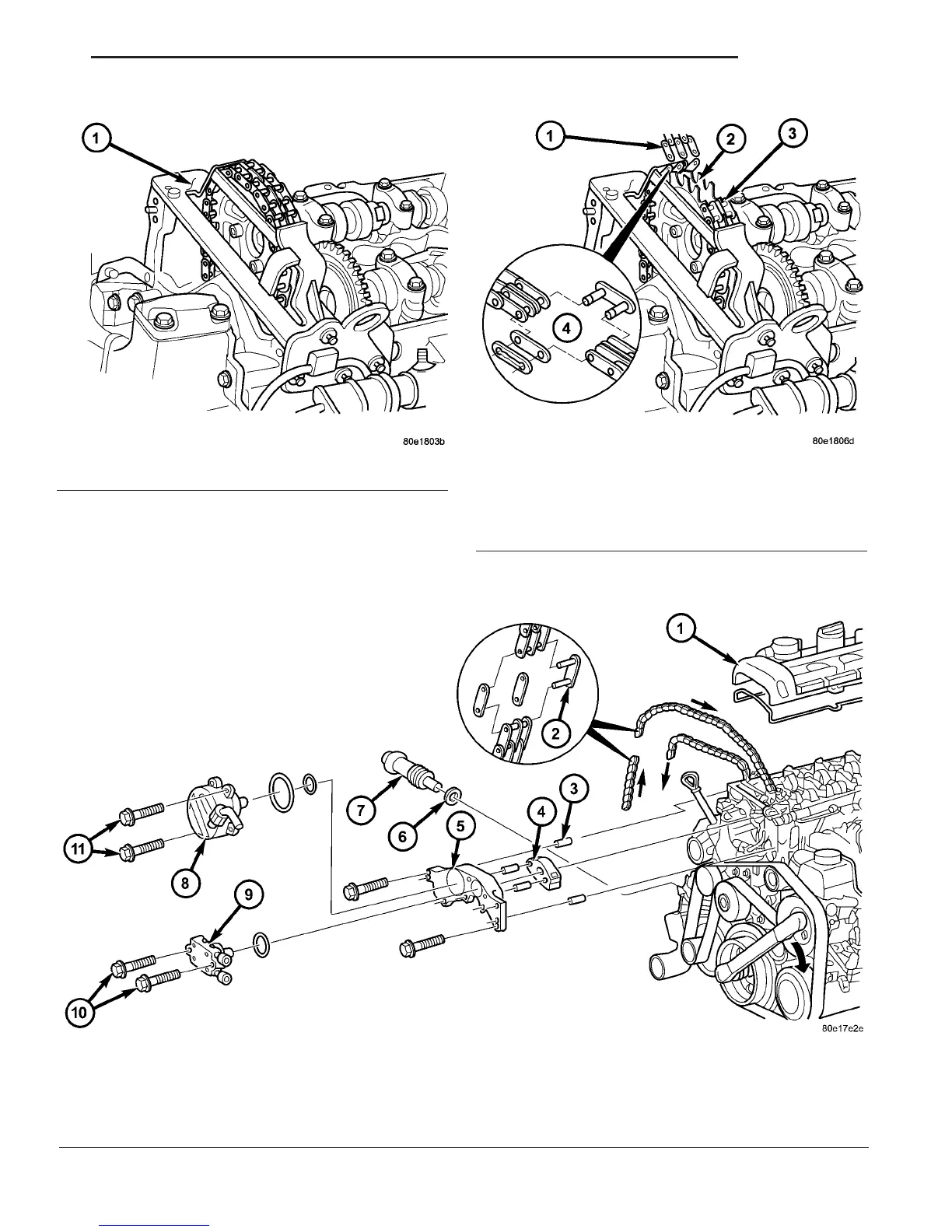

Fig. 75 TIMING CHAIN TEMPORARY LINK
1 - CYLINDER HEAD COVER
2 - TIMING CHAIN TEMPORARY LINK
3 - ALIGNMENT PINS
4 - TOP GUIDE RAIL
5 - CYLINDER HEAD FRONT COVER
6 - TIMING CHAIN TENSIONER SEAL
7 - TIMING CHAIN TENSIONER
8 - VACUUM PUMP
9 - LOW PRESSURE FUEL PUMP
10 - LOW PRESSURE PUMP MOUNTING BOLTS
11 - VACUUM PUMP MOUNTING BOLTS
Fig. 73 SPECIAL TOOL # 8931
1 - SPECIAL TOOL #8931
Fig. 74 INSTALLING TEMPORARY LINK
1 - NEW TIMING CHAIN
2 - CAMSHAFT SPROCKET
3 - OLD TIMING CHAIN
4 - TEMPORARY LINK
VA ENGINE 9 - 65
TIMING BELT/CHAIN AND SPROCKETS (Continued)
