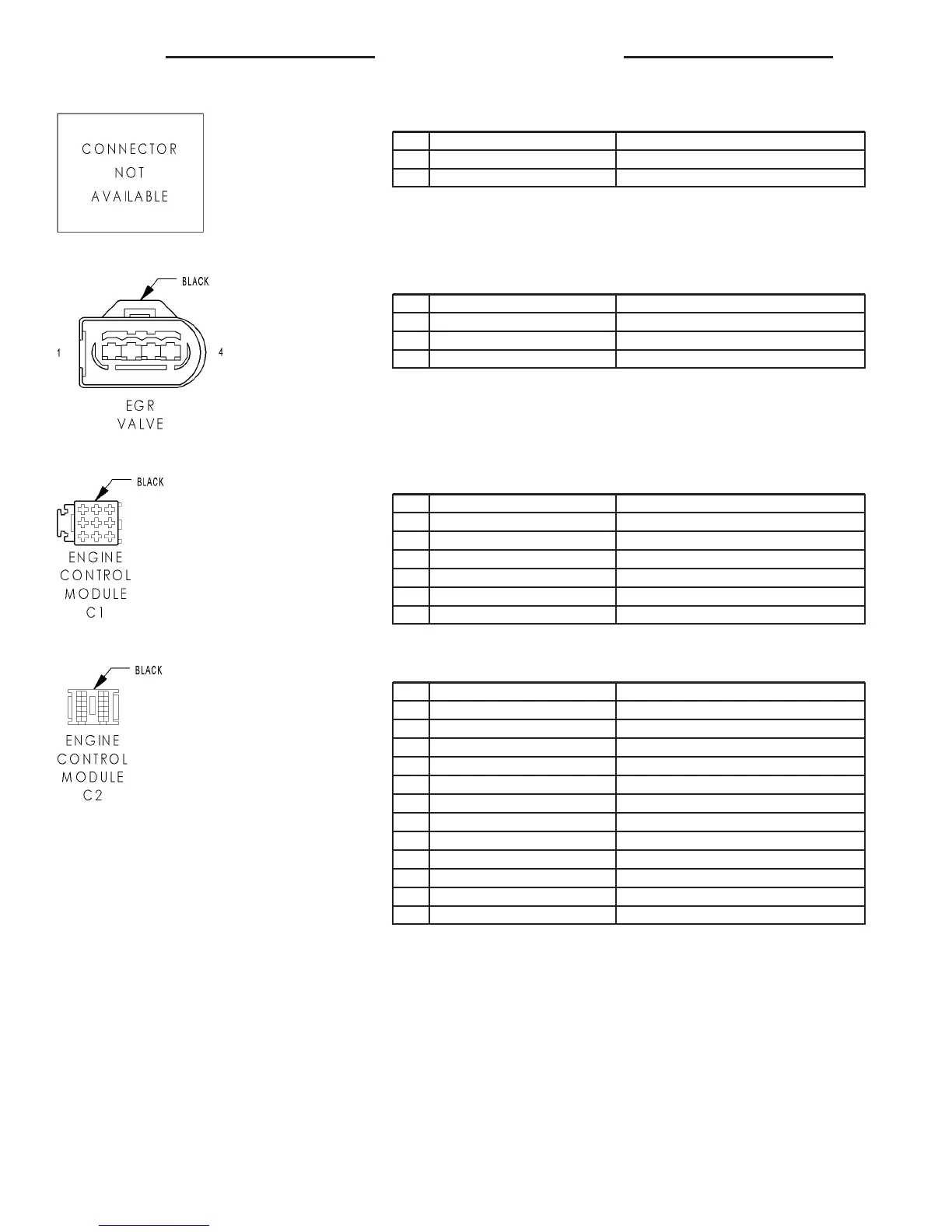

DOSING PUMP
CAV CIRCUIT FUNCTION
1 16DG DOSING PUMP CONTROL
2 16BR GROUND
EGR VALVE - BLACK
CAV CIRCUIT FUNCTION
1 20RD/YL EGR VALVE CONTROL
2 16BK/GY FUSED ENGINE CONTROL RELAY OUTPUT
3 18BR/BK SENSOR GROUND
ENGINE CONTROL MODULE C1 - BLACK
CAV CIRCUIT FUNCTION
1 16BK/RD FUSED ENGINE CONTROL RELAY OUTPUT
4 14BR GROUND
5 14BR GROUND
6 14BR GROUND
7 14BK/BL FUSED ENGINE CONTROL RELAY OUTPUT
8 14BK/BL FUSED ENGINE CONTROL RELAY OUTPUT
ENGINE CONTROL MODULE C2 - BLACK
CAV CIRCUIT FUNCTION
7 18BR/DG KICKDOWN SWITCH SIGNAL
9 18BR SENSOR GROUND
11 20DG/WT CAN C BUS (+)
12 20DG CAN C BUS (-)
13 18BK FUSED IGNITION SWITCH OUTPUT (RUN-START)
14 18DG DECEL/SET SIGNAL
16 18YL ACCEL/SET SIGNAL
17 20DG ENHANCED ACCIDENT REPORT DRIVER
19 18RD S/C SWITCH 12 VOLT SUPPLY
20 18BL RESUME SIGNAL
21 18BK VERIFICATION SIGNAL
22 18GY OFF SIGNAL
