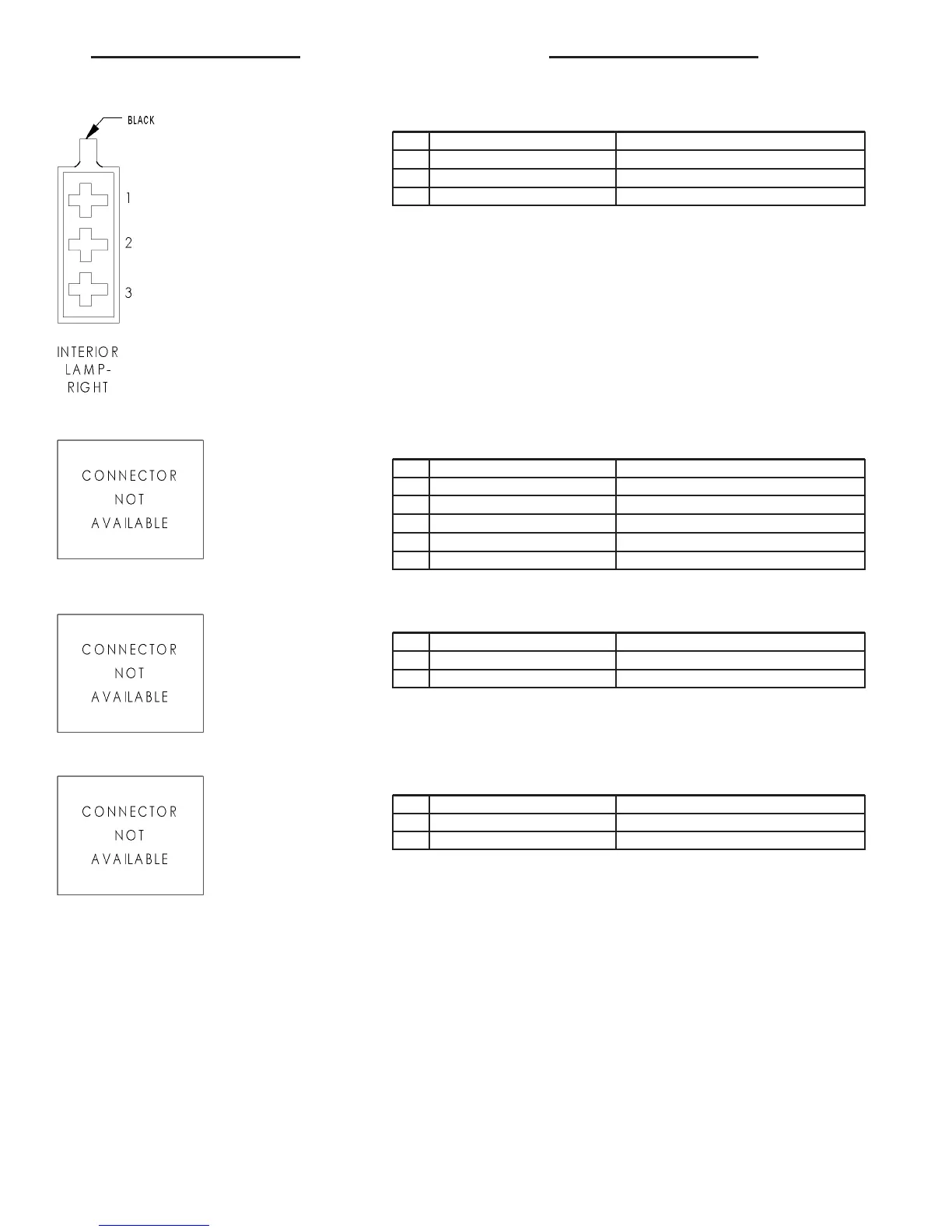

INTERIOR LAMP-RIGHT - BLACK
CAV CIRCUIT FUNCTION
1 16BR GROUND
2 16RD/YL FUSED B(+)
3 16BR/WT DOOR AJAR SWITCH SENSE
INTERIOR LIGHT SWITCH
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
3 16RD/YL FUSED B(+)
7 16YL INTERIOR LIGHT SWITCH OUTPUT
9 16DG INTERIOR LAMPS DRIVER
10 16BR GROUND
INTERIOR LIGHT SWITCH-DRIVER
CAV CIRCUIT FUNCTION
3 16RD/YL FUSED B(+)
7 16YL INTERIOR LIGHT SWITCH OUTPUT
INTERIOR LIGHT SWITCH-PASSENGER
CAV CIRCUIT FUNCTION
3 16RD/YL FUSED B(+)
7 16YL INTERIOR LIGHT SWITCH OUTPUT
VA 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 47
