DISTRIBUTION - REAR
TABLE OF CONTENTS
page page
AIR FILTER
REMOVAL .............................39
INSTALLATION .........................39
BLOWER MOTOR
REMOVAL .............................39
INSTALLATION .........................40
REAR A/C HOUSING
REMOVAL .............................40
INSTALLATION .........................41
AIR FILTER
REMOVAL
(1) Unlock the four quick-disconnect fasteners by
turning them counter clockwise (Fig. 1).
(2) Remove the air inlet grate, cover and air filter
assembly from the evaporator panel.
(3) Disconnect the retainer straps and remove the
air filter from the air inlet grate.
INSTALLATION
(1) Position the air filter onto the grate and install
the retainer straps.
(2) Install the air inlet grate, cover and air filter
assembly into the evaporator panel.
(3) Lock the four quick-disconnect fasteners by
turning them clockwise.
BLOWER MOTOR
REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Remove the rear dome light from the rear roof
duct panel (Fig. 2).
(3) Disconnect the dome light wire harness connec-
tor and remove the dome light from vehicle.
(4) Remove the six push-pin roof duct panel fasten-
ers and remove the duct panel from the vehicle.
(5) Remove the five evaporator panel screws at the
front of the panel.
(6) If equipped, remove the interior motion sensor
from the evaporator panel, disconnect the wire har-
ness connector and remove the motion sensor from
the vehicle (Fig. 3).

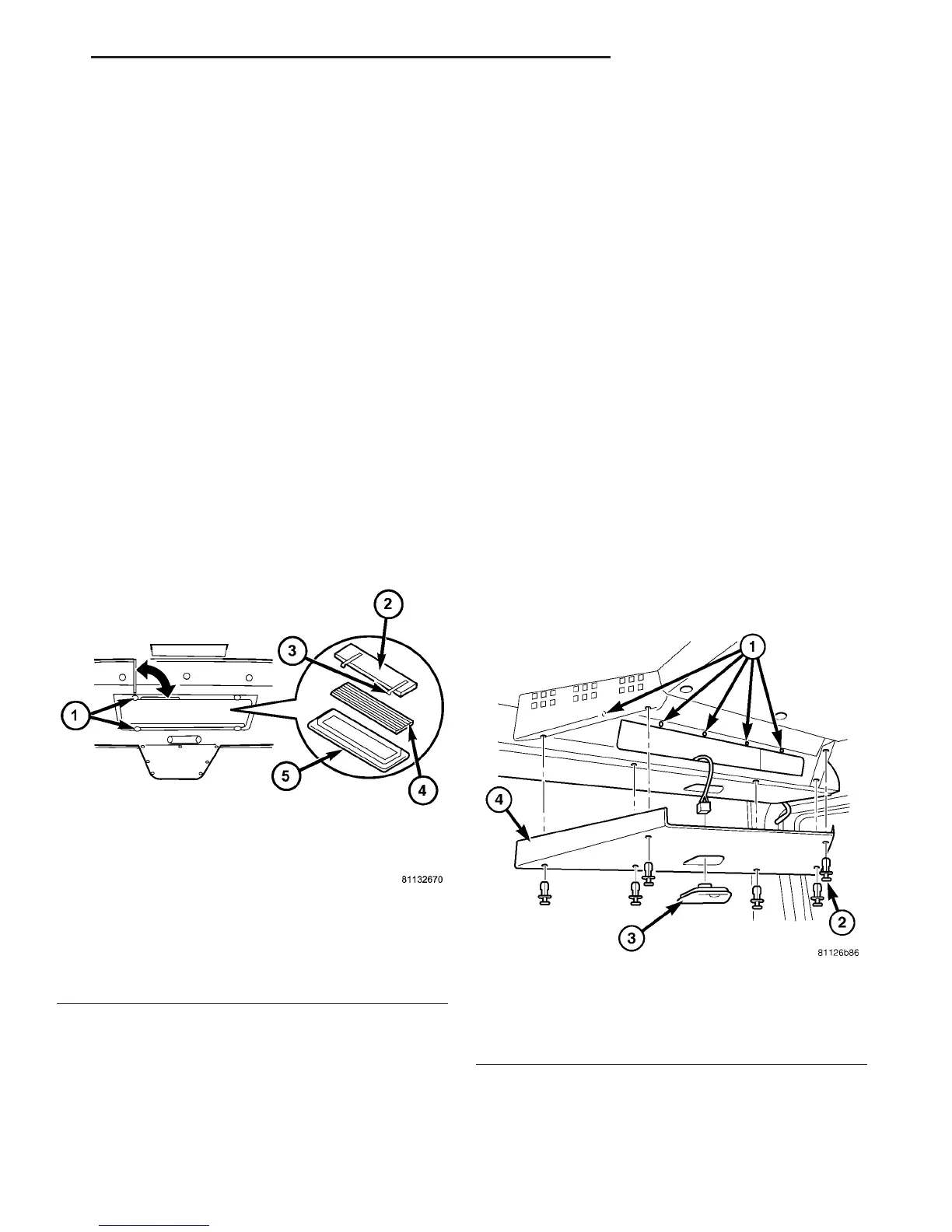

Fig. 1 Rear A/C Air Filter
1 - QUICK-DISCONNECT FASTENER (4)
2 - AIR FILTER
3 - RETAINING STRAP (2)
4 - AIR INLET GRATE
5 - COVER
Fig. 2 Rear Roof Duct Panel
1 - SCREW (5)
2 - PUSH-PIN FASTENER (6)
3 - REAR DOME LAMP
4 - ROOF DUCT PANEL
VA DISTRIBUTION - REAR 24 - 39
