SEAT CUSHION - FRONT
REMOVAL
(1) Disconnect and isolate battery negative cable.
(2) Move seat to the foremost position.
(3) On standard cushion equipped vehicles, remove
the front two screws. (Fig. 4)
(4) On comfort seat equipped vehicles, operate the
front release lever. (Fig. 5)
(5) Slide seat cushion forward and lift off the
mounting points.
(6) Disconnect the electrical connectors, if
equipped.
INSTALLATION
(1) Connect seat cushion electrical connectors, if
equipped.
(2) Place seat cushion onto mounting points.
(3) On comfort seat equipped vehicles, slide seat
cushion to the rear until the arresting mechanism
latches audibly.
(4) On standard cushion equipped vehicles, install
the front two screws.
(5) Connect battery negative cable.
SEAT ADJUSTERS - FRONT
REMOVAL
(1) Remove the seat. (Refer to 23 - BODY/SEATS/
SEAT - FRONT - REMOVAL)
(2) Remove the seat back. (Refer to 23 - BODY/
SEATS/SEAT BACK - FRONT - REMOVAL)
(3) Remove the seat cushion. (Refer to 23 - BODY/
SEATS/SEAT CUSHION - FRONT - REMOVAL)
(4) Remove the four bolts attaching adjust to seat
track.
INSTALLATION
(1) Install the adjuster onto the seat track and
install the bolts.
(2) Install the seat back. (Refer to 23 - BODY/
SEATS/SEAT BACK - FRONT - INSTALLATION)
(3) Install the seat cushion. (Refer to 23 - BODY/
SEATS/SEAT CUSHION - FRONT - INSTALLA-
TION)
(4) Install the seat. (Refer to 23 - BODY/SEATS/
SEAT - FRONT - INSTALLATION)

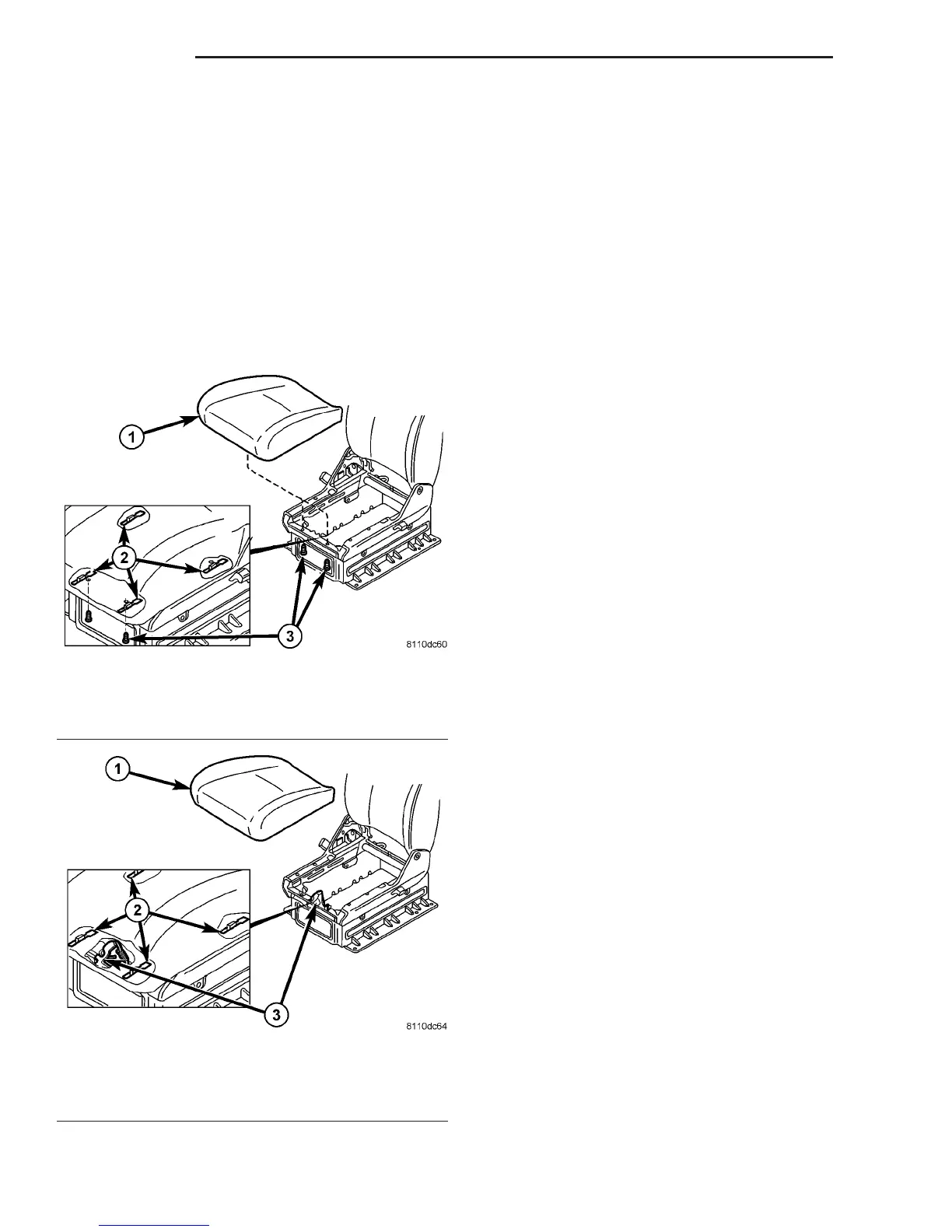

Fig. 4 STANDARD SEAT CUSHION
1 - SEAT CUSHION
2 - MOUNTING POINTS
3 - SCREWS (2)
Fig. 5 COMFORT SEAT CUSHION
1 - SEAT CUSHION
2 - MOUNTING POINTS
3 - RELEASE LEVER
23 - 78 SEATS VA
