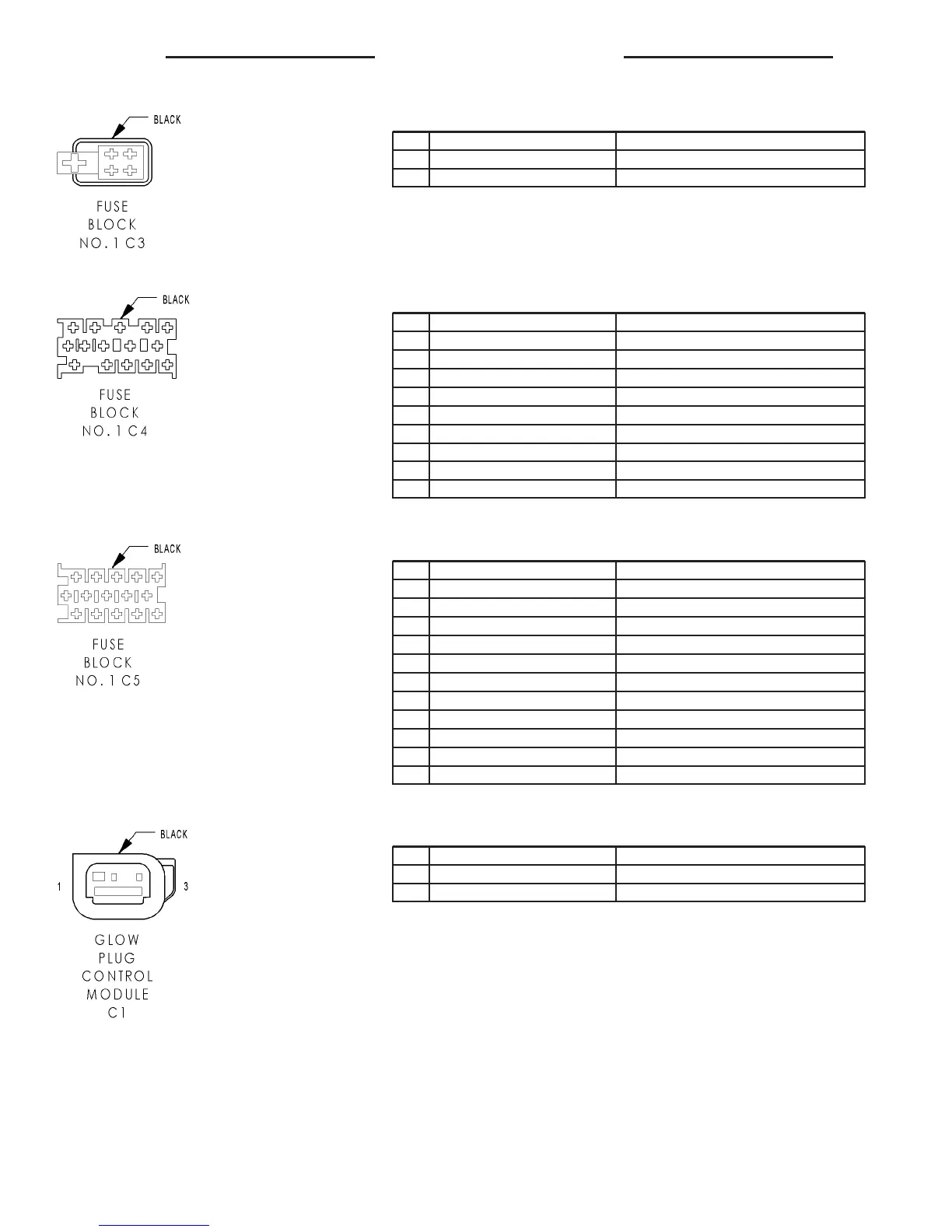

FUSE BLOCK NO. 1 C3 - BLACK
CAV CIRCUIT FUNCTION
2 16BK/VT FUSED IGNITION SWITCH OUTPUT (RUN-START)
5 12RD FUSED B(+)
FUSE BLOCK NO. 1 C4 - BLACK
CAV CIRCUIT FUNCTION
1 16RD/BL FUSED B(+)
4 16BK/RD ENGINE CONTROL RELAY OUTPUT
5 16WT FUSED HIGH BEAM SWITCH OUPUT
7 16BK/YL FUSED IGNITION SWITCH OUTPUT (RUN-START)
8 16BK/YL/WT FOG LAMP RELAY SIGNAL
10 16WT FUSED HIGH BEAM SWITCH OUTPUT
11 16RD/YL FUSED IGNITION SWITCH OUTPUT (RUN-START)
12 16BR/BK WIPER MOTOR CONTROL
14 16WT/BL/RD FUSED IGNITION SWITCH OUTPUT (RUN-START)
FUSE BLOCK NO. 1 C5 - BLACK
CAV CIRCUIT FUNCTION
1 16BK/BL/WT FUSED IGNITION SWITCH (RUN-START)
2 12BK/BL FUSED ENGINE CONTROL RELAY OUTPUT
3 18YL FUSED HEADLAMP SWITCH OUTPUT
4 16GY/BK LEFT LAMP RELAY OUTPUT
5 16BK/DG RIGHT TURN SIGNAL
6 16GY/RD RIGHT LAMP RELAY OUTPUT
7 16GY/DG LAMP DRIVER
8 16BK/WT LEFT TURN SIGNAL
13 16YL FUSED HEADLAMP SWITCH OUTPUT
14 16BK/VT/RD WASHER ON/OFF SWITCH OUTPUT
15 18YL/BL FUSE BLOCK NO.1 C5 CAV 15 COMMON CIRCUIT
GLOW PLUG CONTROL MODULE C1 - BLACK
CAV CIRCUIT FUNCTION
1 20BR GROUND
2 18BK/RD GLOW PLUG MODULE CONTROL
8W - 80 - 38 8W-80 CONNECTOR PIN-OUTS VA
