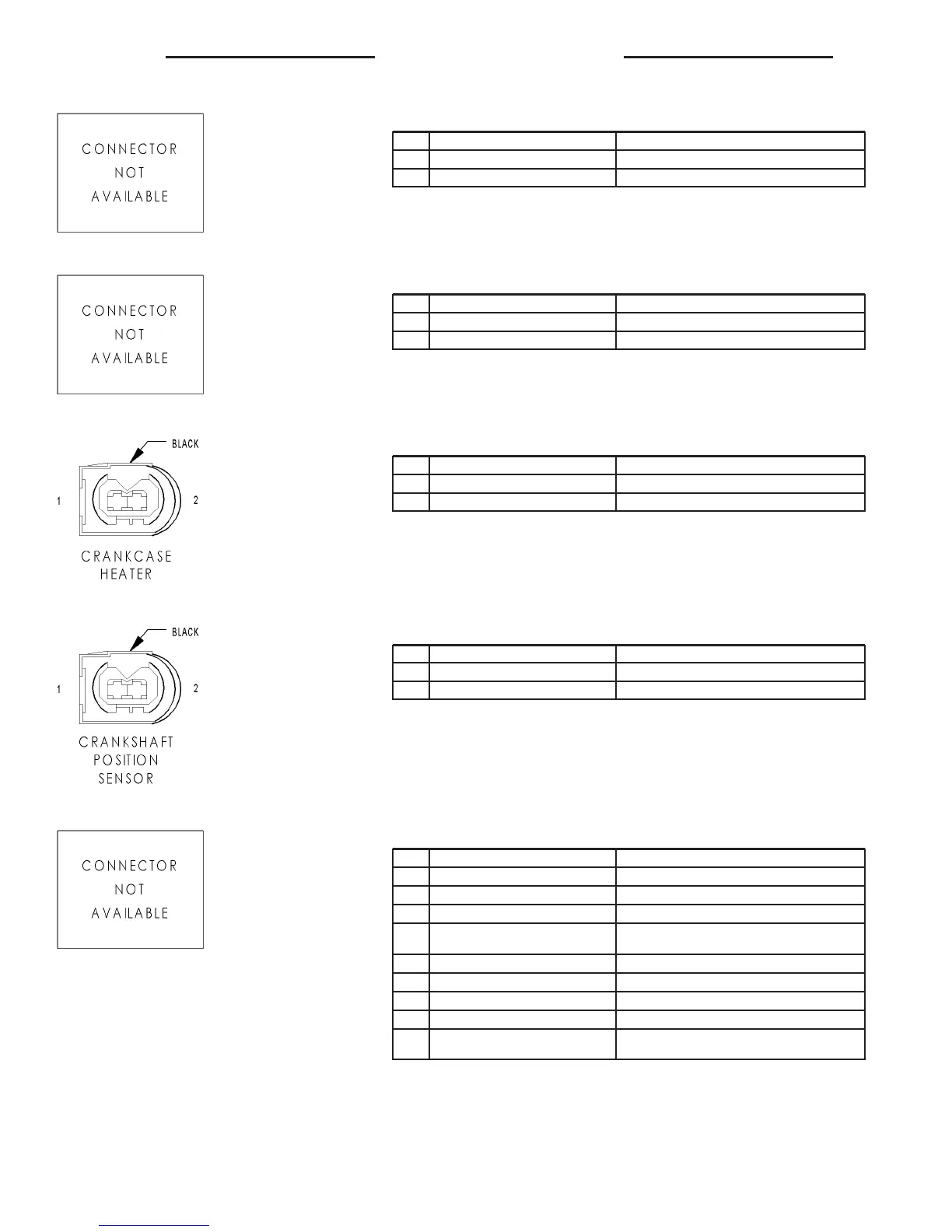

COURTESY LAMP-PASSENGER DOOR
CAV CIRCUIT FUNCTION
1 16RD/YL FUSED B(+)
2 16BR/WT FRONT COURTESY LAMPS CONTROL
COURTESY LAMP-RIGHT SLIDING DOOR
CAV CIRCUIT FUNCTION
1 16RD/YL FUSED B(+)
2 16BR/WT DOOR AJAR SWITCH SENSE
CRANKCASE HEATER - BLACK
CAV CIRCUIT FUNCTION
1 18BR GROUND
2 16BK/RD FUSED ENGINE CONTROL RELAY OUTPUT
CRANKSHAFT POSITION SENSOR - BLACK
CAV CIRCUIT FUNCTION
1 20DG SENSOR GROUND
2 20DG/WT CRANKSHAFT POSITION SENSOR SIGNAL
CTEL CONNECTOR
CAV CIRCUIT FUNCTION
1 16BR GROUND
4 16DG/YL/BK RADIO MUTE
7 18BL/DG SPEAKER-LEFT FRONT DOOR ASSEMBLY (-)
9 18BR CTEL CONNECTOR CAV 9 TO MICROPHONE CON-
NECTOR CAV 1
10 18BK/BL FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
11 18RD/BK/WT FUSED B(+)
12 18BK/BL FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
16 18BL/YL SPEAKER-LEFT FRONT DOOR ASSEMBLY (+)
18 18BL CTEL CONNECTOR CAV 18 TO MICROPHONE CON-
NECTOR
8W - 80 - 28 8W-80 CONNECTOR PIN-OUTS VA
