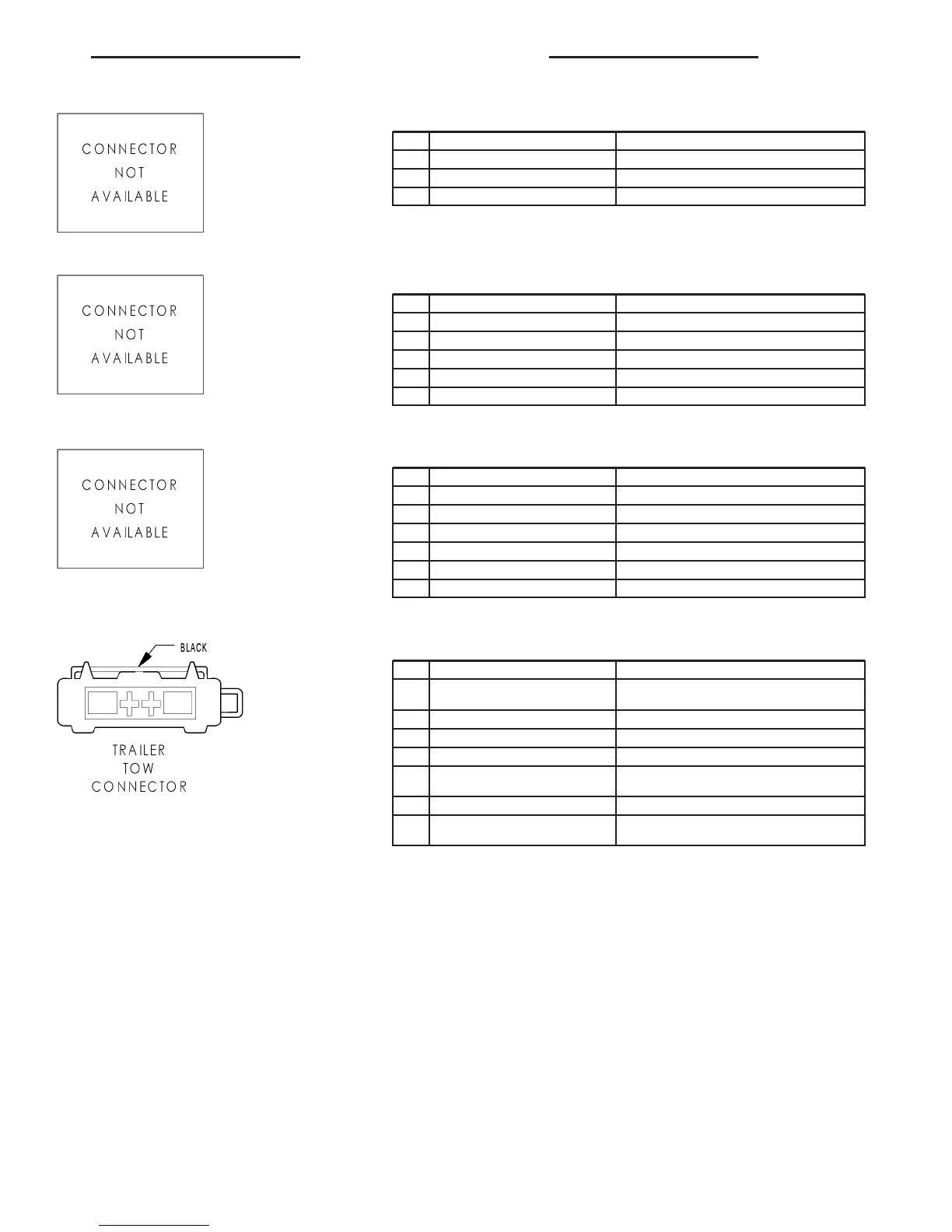

TEMPERATURE SWITCH
CAV CIRCUIT FUNCTION
3 16BR TEMPERATURE SWITCH SENSE
5 16BK TEMPERATURE SWITCH SELECT
9 18GY/DG/RD LAMP DRIVER
TIME DELAY RELAY
CAV CIRCUIT FUNCTION
1 16RD/YL FUSED B(+)
4 16RD/YL FUSED B(+)
7 16BR GROUND
13 16YL INTERIOR LIGHT SWITCH OUTPUT
15 16DG INTERIOR LAMPS DRIVER
TOWING/INTRUSION SENSOR ON/OFF SWITCH
CAV CIRCUIT FUNCTION
1 18GY/DG LAMP DRIVER
3 18GY/YL INTRUSION SENSOR SWITCH SENSE
4 18BR GROUND
8 18GY/BR TOWING SENSOR SWITCH SENSE
9 18VT/DG TOWING/INTRUSION SENSOR INDICATOR DRIVER
10 18BR GROUND
TRAILER TOW CONNECTOR - BLACK
CAV CIRCUIT FUNCTION
2 16BK/DG/GY TT CONNECTOR CAV 2 TO TT CONTROL MODULE C1
CAV D
3 16BK/RD BACK-UP LAMP
4 14RD FUSED B(+)
5 16GY/RD RIGHT LAMP RELAY OUTPUT
7 14RD/BK TT CONNECTOR CAV 7 TO TT CONTROL MODULE C1
CAV F
8 14BR GROUND
10 16BK/RD/WT TT CONNECTOR CAV 10 TO TT CONTROL MODULE
C1 CAV C
VA 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 61
