DISASSEMBLY
(1) Remove retaining ring (5) (Fig. 143) from hol-
low shaft (1).
(2) Remove rear sun gear (4) with the K3 inter-
nally toothed disk carrier and rear freewheeling
clutch F2 (3).
(3) Remove snap-ring (2) (Fig. 143) for freewheel.
(4) Press freewheeling clutch out of sun gear.
(5) Check O-rings (6), replace if necessary.
(6) Check the anti-friction bearing (Fig. 144) in the
rear planetary sun gear for damage. Replace as nec-
essary.

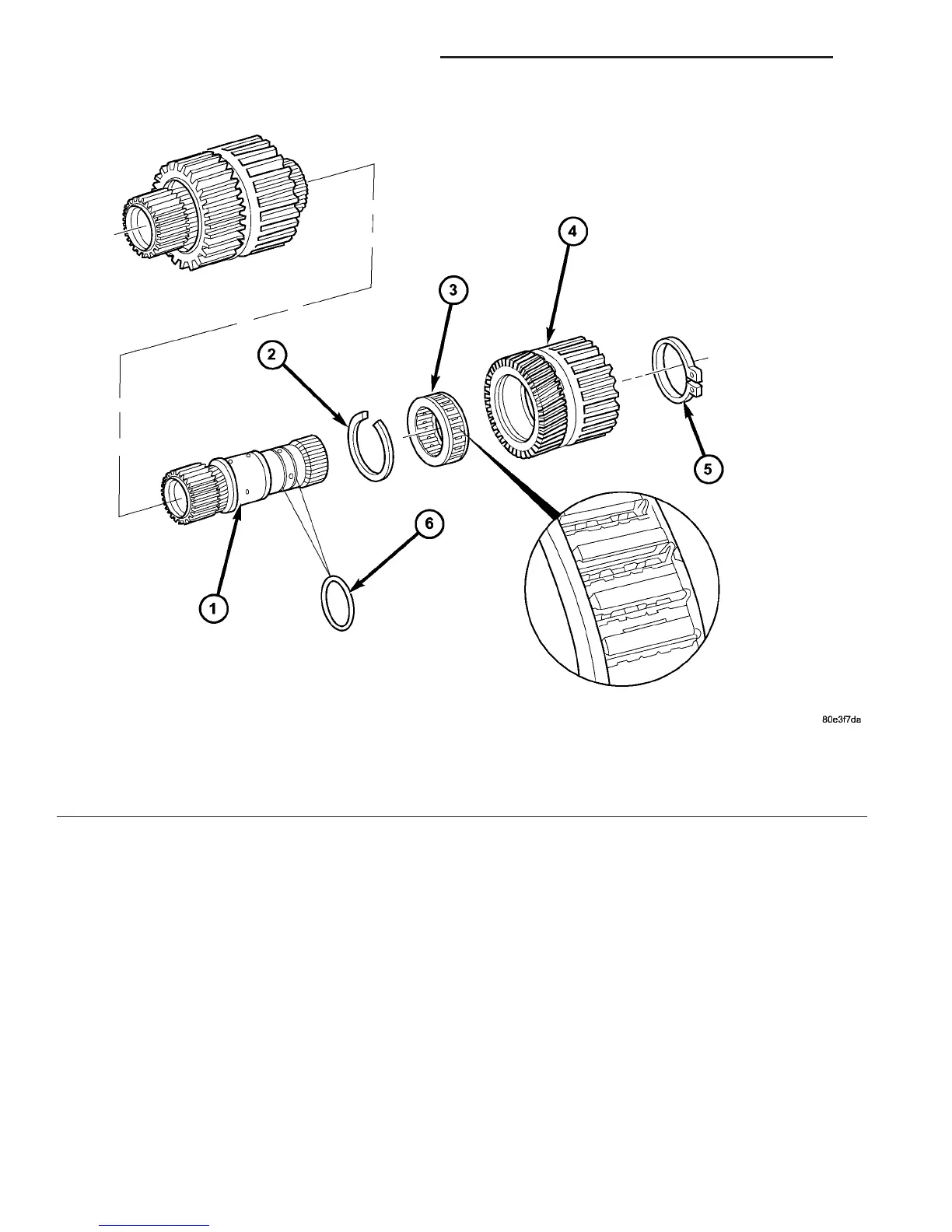

Fig. 143 Freewheeling Clutch F2
1 - HOLLOW SHAFT 4 - K3 INNER DISC CARRIER AND REAR PLANETARY SUN GEAR
2 - SNAP-RING 5 - RETAINING RING
3 - FREEWHEELING CLUTCH F2 6 - O-RINGS
21 - 106 AUTOMATIC TRANSMISSION - NAG1 VA
FREEWHEELING CLUTCH (Continued)
