DOORS - REAR
TABLE OF CONTENTS
page page
CHECK
REMOVAL .............................24
INSTALLATION .........................24
DOOR
REMOVAL .............................25
DISASSEMBLY .........................26
ASSEMBLY ............................28
INSTALLATION .........................30
ADJUSTMENTS
ADJUSTMENT ........................30
DOOR GLASS
REMOVAL .............................31
INSTALLATION .........................31
EXTERIOR HANDLE
REMOVAL .............................32
INSTALLATION .........................33
HINGE
REMOVAL .............................34
INSTALLATION .........................34
INSIDE HANDLE ACTUATOR
REMOVAL .............................34
INSTALLATION .........................34
LATCH
REMOVAL .............................34
INSTALLATION .........................35
TRIM PANEL
REMOVAL .............................35
INSTALLATION .........................35
CHECK
REMOVAL
(1) Open door and disengage check arm from
receiver. (Fig. 1)
(2) Remove the screws and remove the check arm.
(3) Remove the d-pillar trim, if equipped. (Refer to
23 - BODY/INTERIOR/D-PILLAR TRIM -
REMOVAL)
(4) Remove the rivets and remove the receiver.
INSTALLATION
(1) Install the receiver and replace the rivets.
(2) Install d-pillar trim, if equipped. (Refer to 23 -
BODY/INTERIOR/D-PILLAR TRIM - INSTALLA-
TION)
(3) Install check arm and screws.
(4) Tighten the screws to 10 N·m (89 idn. lbs.).

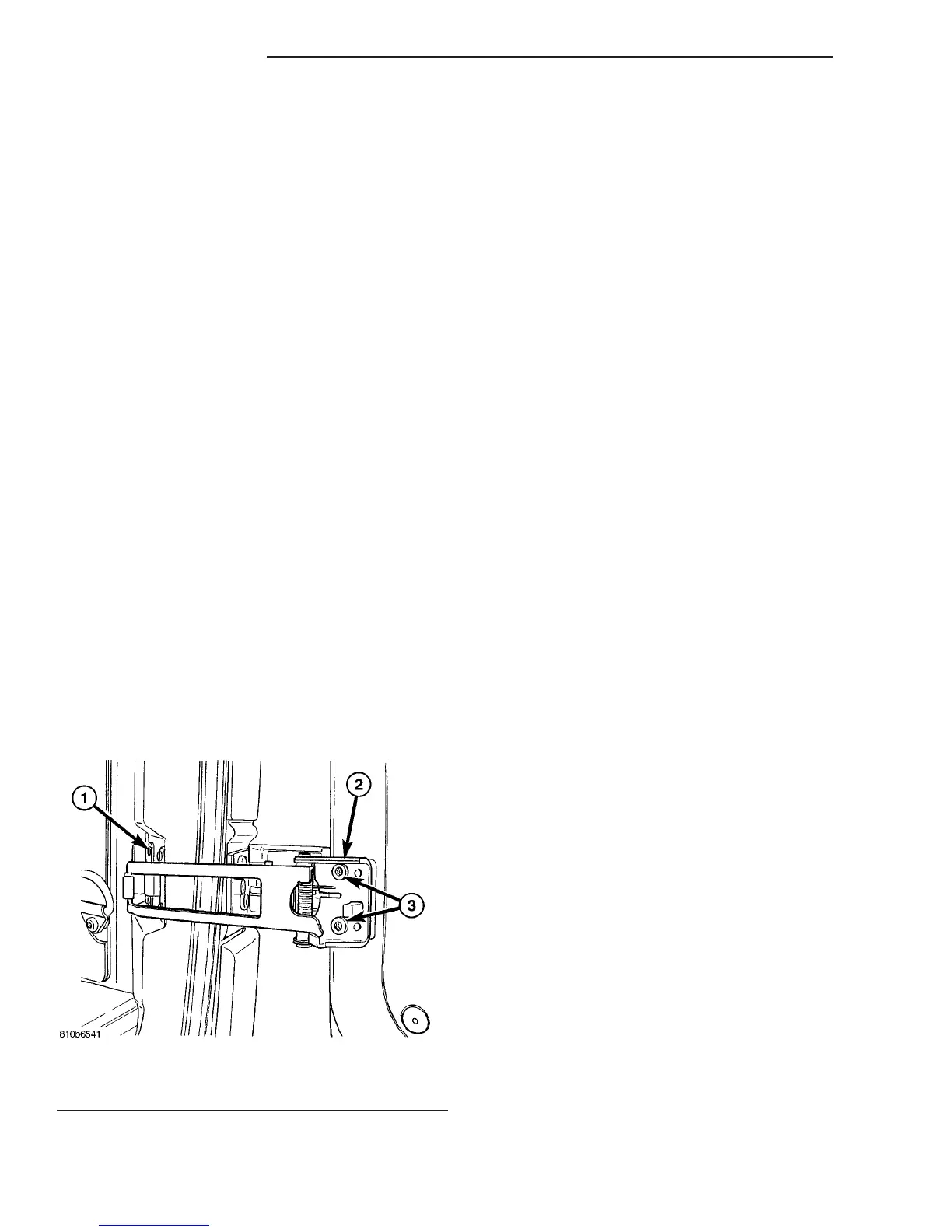

Fig. 1 DOOR CHECK
1 - RECEIVER
2 - DOOR CHECK
3 - SCREWS
23 - 24 DOORS - REAR VA
