(2) Position Special Tool 8433 (Fig. 10) into decou-
pler. Align tool to hex end of generator shaft.
(3) Do not use an adjustable, ratcheting “click
type” torque wrench. Most “click type”
wrenches will only allow torque to be applied
in a clockwise rotation. Use a dial-type or
beam-type wrench. Tighten in counter-clockwise
rotation (Fig. 14). Refer to torque specifications.
(4) Install accessory drive belt, and generator.
Refer to Generator Installation.
(5) Connect negative battery cable.
VOLTAGE REGULATOR
DESCRIPTION
The electronic voltage regulator is attached to the
back of the generator. It is not serviced as a separate
component. If replacement is necessary, the generator
must be replaced.

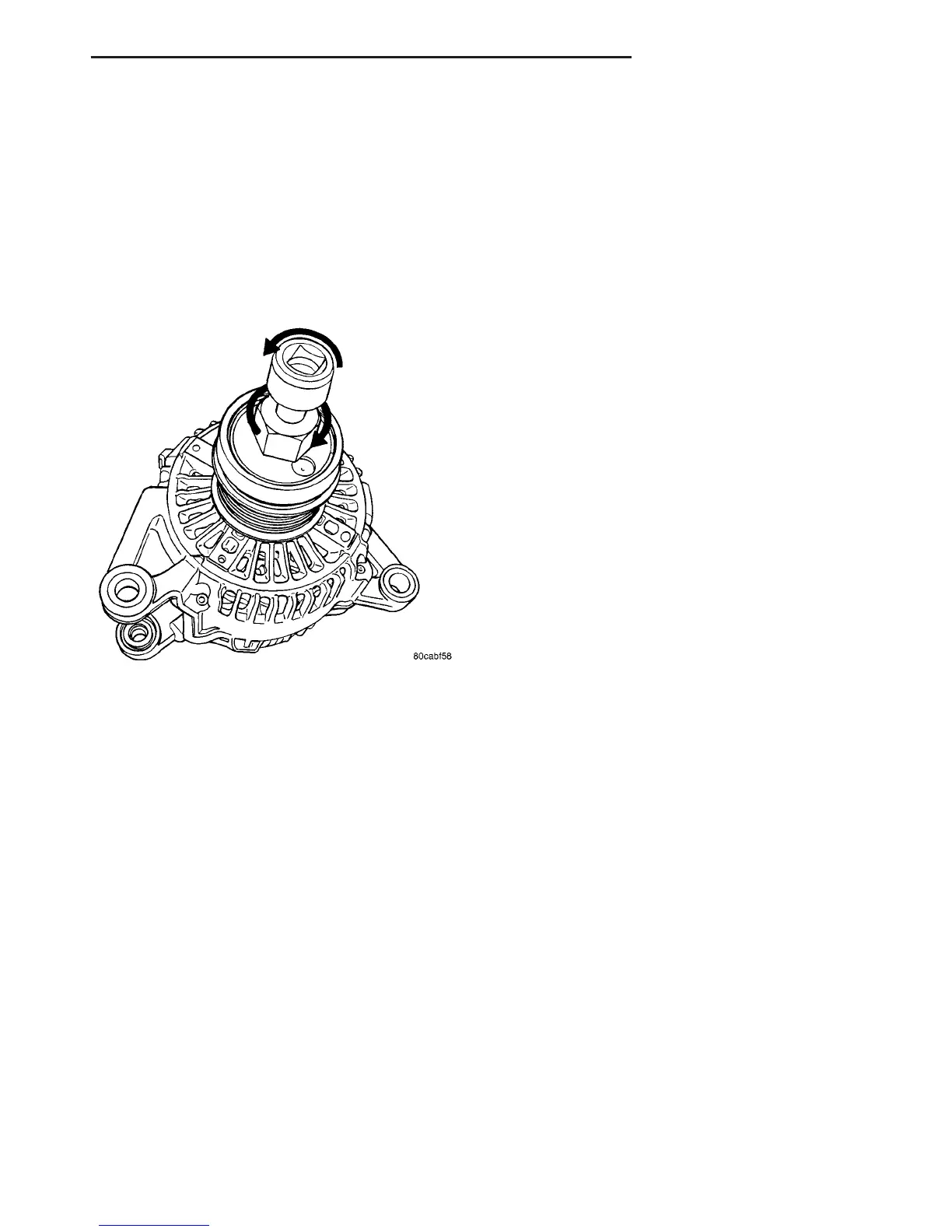

Fig. 14 DECOUPLER INSTALLATION (Litens)
VA CHARGING SYSTEM 8F - 23
GENERATOR DECOUPLER PULLEY (Continued)
