(7) Measure peak to valley height of connecting

rod bushing on inside.

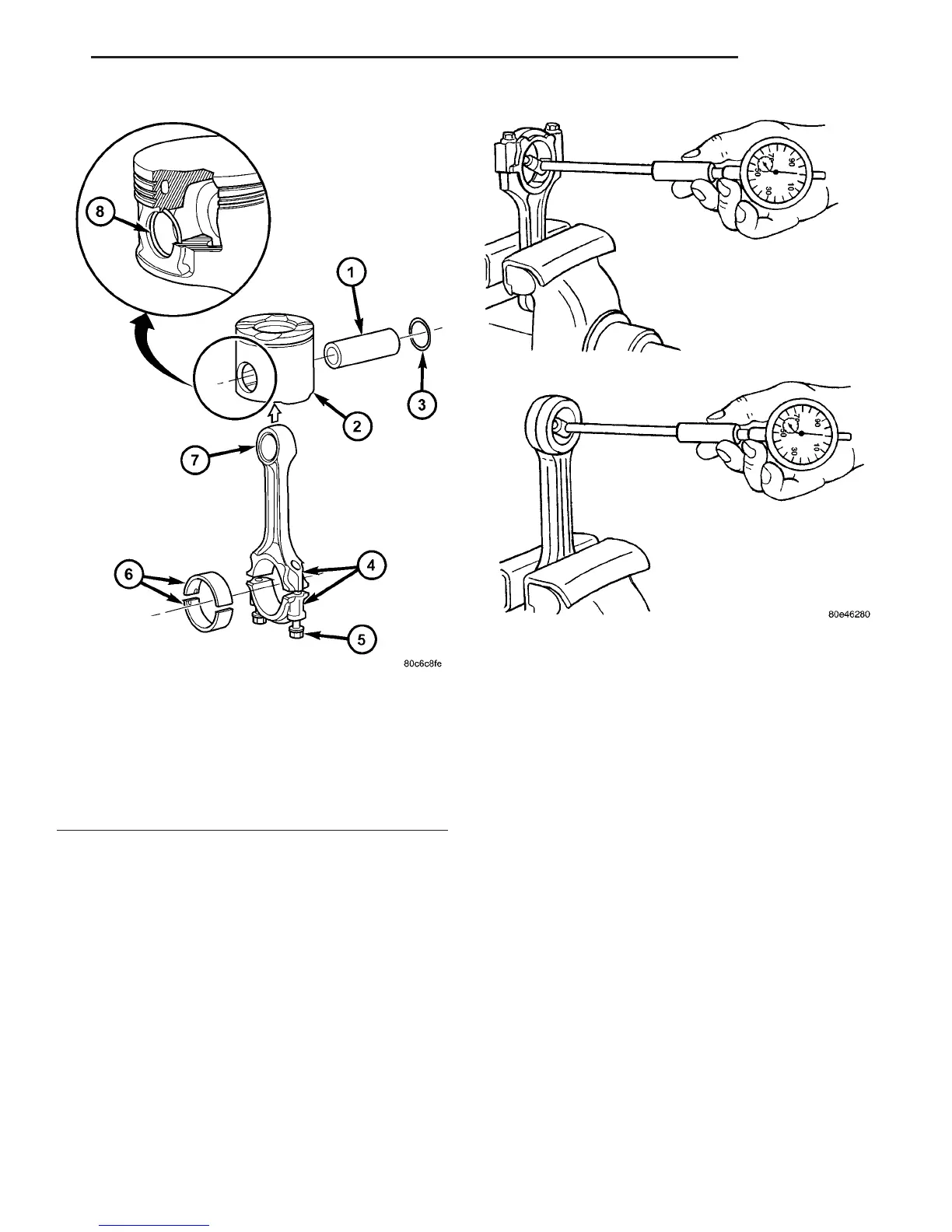

Fig. 33 PISTON AND CONNECTING ROD ASSEMBLY

1 - PISTON PIN

2 - PISTON

3 - SNAP RING

4 - CONNECTING ROD ALIGNMENT NUMBERS

5 - CONNECTING ROD BOLT

6 - CONNECTING ROD BEARING

7 - CONNECTING ROD

8 - SNAP RING

Fig. 34 MEASURING CONNECTING RODS

VA ENGINE 9 - 41

PISTON & CONNECTING ROD (Continued)
