FRONT POSITION LAMP BULB
REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Disengage and swing the retainers that secure
the front lamp unit rear cover to each side of the
lamp housing and remove the cover (Fig. 22).
(3) Pull the position lamp bulb holder straight out
to remove it from the front lamp unit reflector (Fig.
23).
(4) Remove the position lamp bulb from the bulb
holder.
INSTALLATION
(1) Install the position lamp bulb into the bulb
holder (Fig. 23).
(2) Push the position lamp bulb holder straight
into the mounting hole in the front lamp unit reflec-
tor.
(3) Position the front lamp unit rear cover onto the
lamp housing and engage the retainers over each
side of the cover to secure it (Fig. 22).
(4) Reconnect the battery negative cable.
FRONT TURN/PARK/SIDE
MARKER LAMP BULB
REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Locate the turn/park/side marker bulb holder
on the rear outboard side of the front lamp unit
housing (Fig. 24).

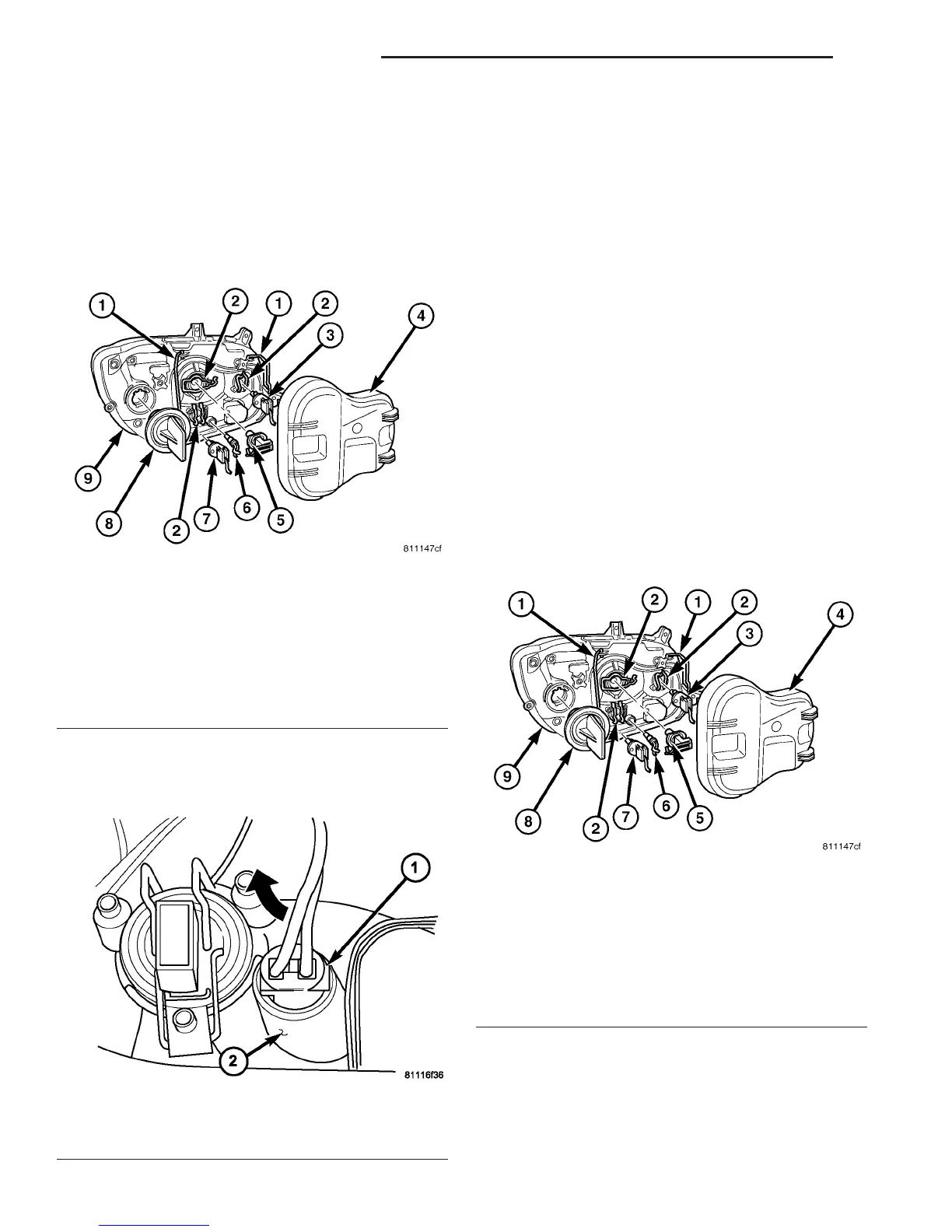

Fig. 22 Front Lamp Unit Bulbs Remove/Install
1 - COVER RETAINER (2)
2 - BULB RETAINER (3)
3 - FOG LAMP BULB (OPTIONAL)
4 - COVER
5 - LOW BEAM BULB
6 - POSITION BULB
7 - HIGH BEAM BULB
8 - TURN/PARK/SIDE MARKER BULB
9 - FRONT LAMP UNIT
Fig. 23 Position Lamp Bulb Remove/Install
1 - BULB HOLDER
2 - LAMP REFLECTOR
Fig. 24 Front Lamp Unit Bulbs Remove/Install
1 - COVER RETAINER (2)
2 - BULB RETAINER (3)
3 - FOG LAMP BULB (OPTIONAL)
4 - COVER
5 - LOW BEAM BULB
6 - POSITION BULB
7 - HIGH BEAM BULB
8 - TURN/PARK/SIDE MARKER BULB
9 - FRONT LAMP UNIT
8L - 14 LAMPS/LIGHTING - EXTERIOR VA
