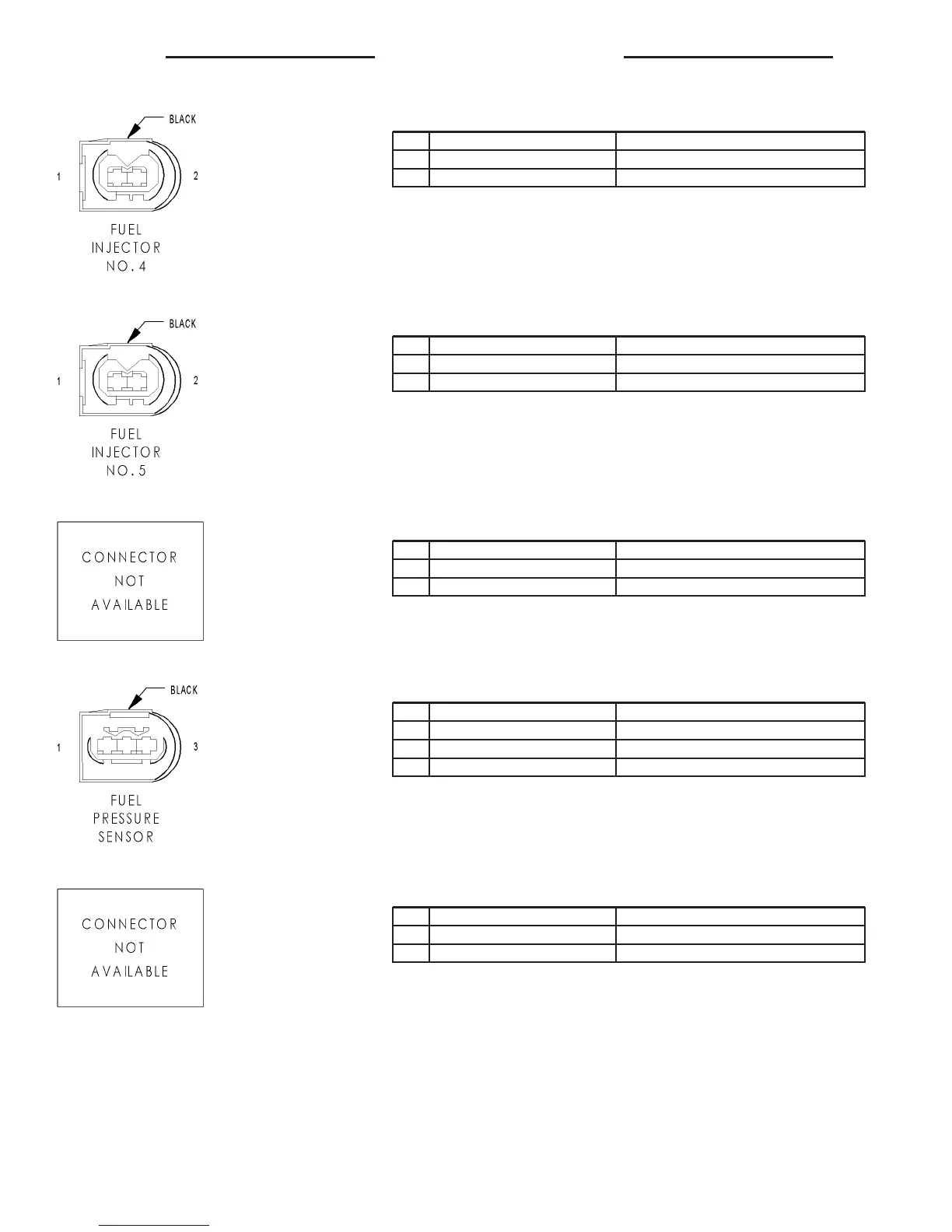

FUEL INJECTOR NO. 4 - BLACK
CAV CIRCUIT FUNCTION
1 14BK/YL FUEL INJECTOR NO. 4 CONTROL
2 14BK COMMON INJECTOR DRIVER NO. 1
FUEL INJECTOR NO. 5 - BLACK
CAV CIRCUIT FUNCTION
1 14BK/DG FUEL INJECTOR NO. 5 CONTROL
2 14BL COMMON INJECTOR DRIVER NO. 2
FUEL LEVEL SENSOR
CAV CIRCUIT FUNCTION
2 20BL/BK FUEL LEVEL SENSOR SIGNAL (+)
3 20BR FUEL LEVEL SENSOR SIGNAL
FUEL PRESSURE SENSOR - BLACK
CAV CIRCUIT FUNCTION
1 20BR/GY SENSOR GROUND
2 20DG/VT FUEL PRESSURE SENSOR SIGNAL
3 20RD/DG FUEL PRESSURE SENSOR 5 VOLT SUPPLY
FUEL PRESSURE SOLENOID
CAV CIRCUIT FUNCTION
1 20BK/WT GROUND
2 20RD/WT FUEL PRESSURE SOLENOID CONTROL
8W - 80 - 36 8W-80 CONNECTOR PIN-OUTS VA
