ASSEMBLY
(1) Press freewheeling clutch F2 (3) (Fig. 145) into
sun gear (4).
(2) Install snap-ring (2) for freewheeling clutch.
(3) Check O-rings (6) (Fig. 145) on hollow shaft,
replace if necessary.
(4) Install rear sun gear (4) with K3 internally
toothed disc carrier and rear freewheeling clutch (3)
onto the hollow shaft.
(5) Install retaining ring (5) onto hollow shaft (1).

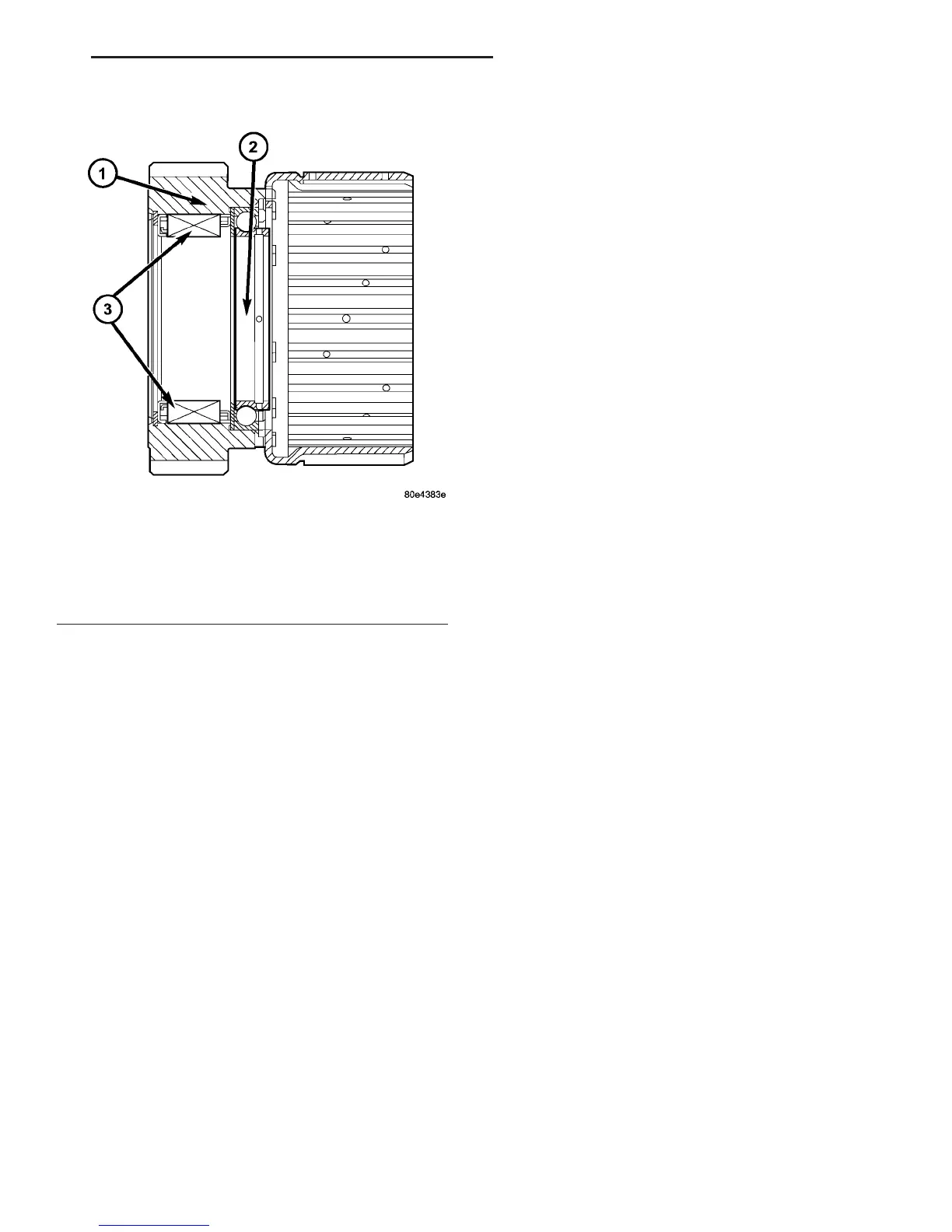

Fig. 144 Freewheeling Clutch F2 Anti-Friction
Bearing
1 - K3 INNER DISC CARRIER AND REAR PLANETARY SUN
GEAR
2 - ANTI-FRICTION BEARING
3 - FREEWHEELING CLUTCH F2
VA AUTOMATIC TRANSMISSION - NAG1 21 - 107
FREEWHEELING CLUTCH (Continued)
