ASSEMBLY
NOTE: Pay great attention to cleanliness for all
work on the shift plate. Fluffy cloths must not be
used. Leather cloths are particularly good. After dis-
mantling, all parts must be washed and blown out
with compressed-air, noting that parts may be
blown away.
(1) Install the pressure supply valve (1) (Fig. 122)
into the valve body.
(2) Install all valves and springs from the valve
body (1) (Fig. 123). Check all valves for ease of move-
ment and shavings.
NOTE: The sleeves and pistons of the overlap reg-
ulating valves must not be mixed up.

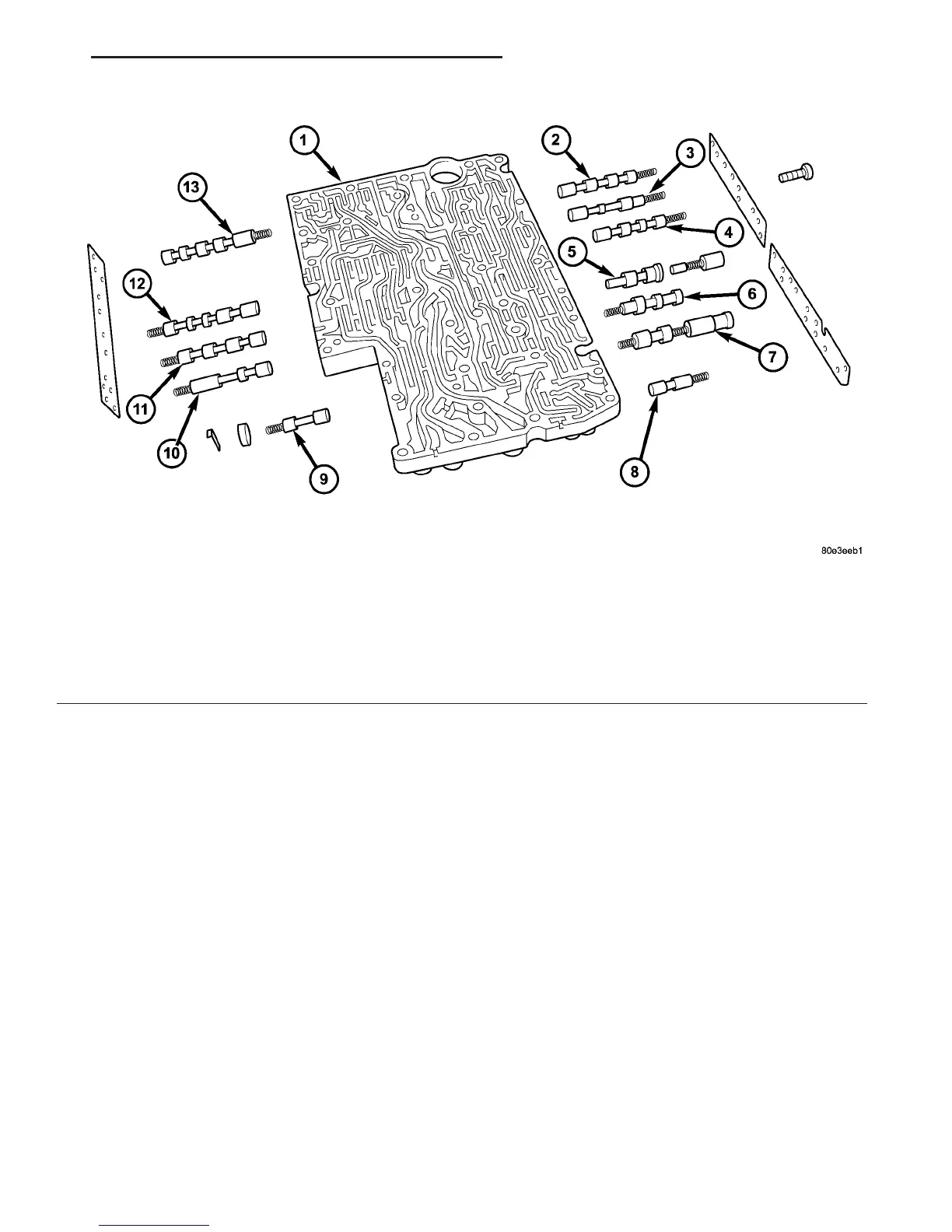

Fig. 119 Valve Body Components
1 - VALVE BODY 8 - SHIFT VALVE PRESSURE REGULATING VALVE
2 - 1-2/4-5 COMMAND VALVE 9 - B2 SHIFT VALVE
3 - 1-2/4-5 HOLDING PRESSURE SHIFT VALVE 10 - 2-3 HOLDING PRESSURE SHIFT VALVE
4 - 1-2/4-5 SHIFT PRESSURE SHIFT VALVE 11 - 2-3 COMMAND VALVE
5 - 1-2/4-5 OVERLAP REGULATING VALVE, SLEEVE, AND PISTON 12 - 2-3 SHIFT PRESSURE SHIFT VALVE
6 - SHIFT PRESSURE REGULATING VALVE 13 - TCC LOCK-UP REGULATING VALVE
7 - REGULATING VALVE PRESSURE REGULATING VALVE
VA AUTOMATIC TRANSMISSION - NAG1 21 - 95
ELECTROHYDRAULIC UNIT (Continued)
