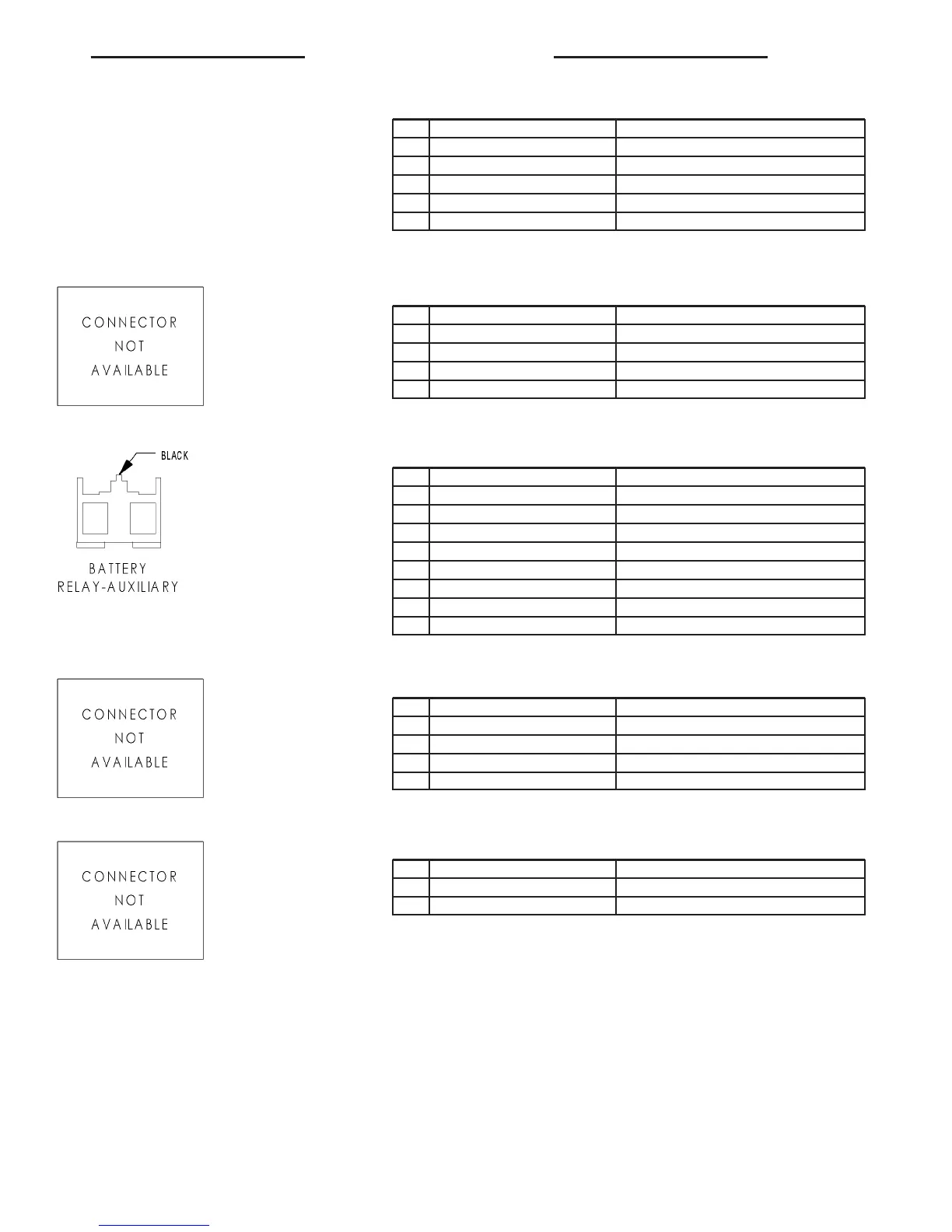

AUXILIARY HEATER RELAY (IN RELAY BLOCK)
CAV CIRCUIT FUNCTION
30 12RD/DG FUSED B(+)
85 18BK FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
86 18BR GROUND
87 12RD/BL AUXILIARY HEATER RELAY OUTPUT
87A - -
AUXILIARY HEATER SWITCH
CAV CIRCUIT FUNCTION
1 16GY/DG/RD DAYTIME RUNNING LAMP RELAY OUTPUT
3 16RD/YL FUSED B(+)
7 16YL CABIN HEATER CONTROL
10 16BR GROUND
BATTERY RELAY-AUXILIARY - BLACK
CAV CIRCUIT FUNCTION
30 6YL (EXCEPT HEAVY DUTY) AUXILIARY B(+)
30 4RD (HEAVY DUTY) AUXILIARY B(+)
85 16BR GROUND
86 16RD/DG/VT (EXCEPT HEAVY DUTY) FUSED D(+) RELAY NO. 1 OUTPUT
86 16BR/DG (HEAVY DUTY) FUSED D(+) RELAY NO. 1 OUTPUT
87 6RD (EXCEPT HEAVY DUTY) B(+)
87 4RD (HEAVY DUTY) B(+)
87A - -
BLOWER MOTOR RESISTOR BLOCK
CAV CIRCUIT FUNCTION
1 12YL/BK BLOWER MOTOR M2 DRIVER
2 12YL BLOWER MOTOR LOW DRIVER
3 12BK/WT BLOWER MOTOR M1 DRIVER
4 12DG BLOWER MOTOR HIGH DRIVER
BLOWER MOTOR RESISTOR BLOCK C1
CAV CIRCUIT FUNCTION
1 12RD/BL FUSED B(+)
2 12WT BLOWER MOTOR HIGH DRIVER
VA 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 9
