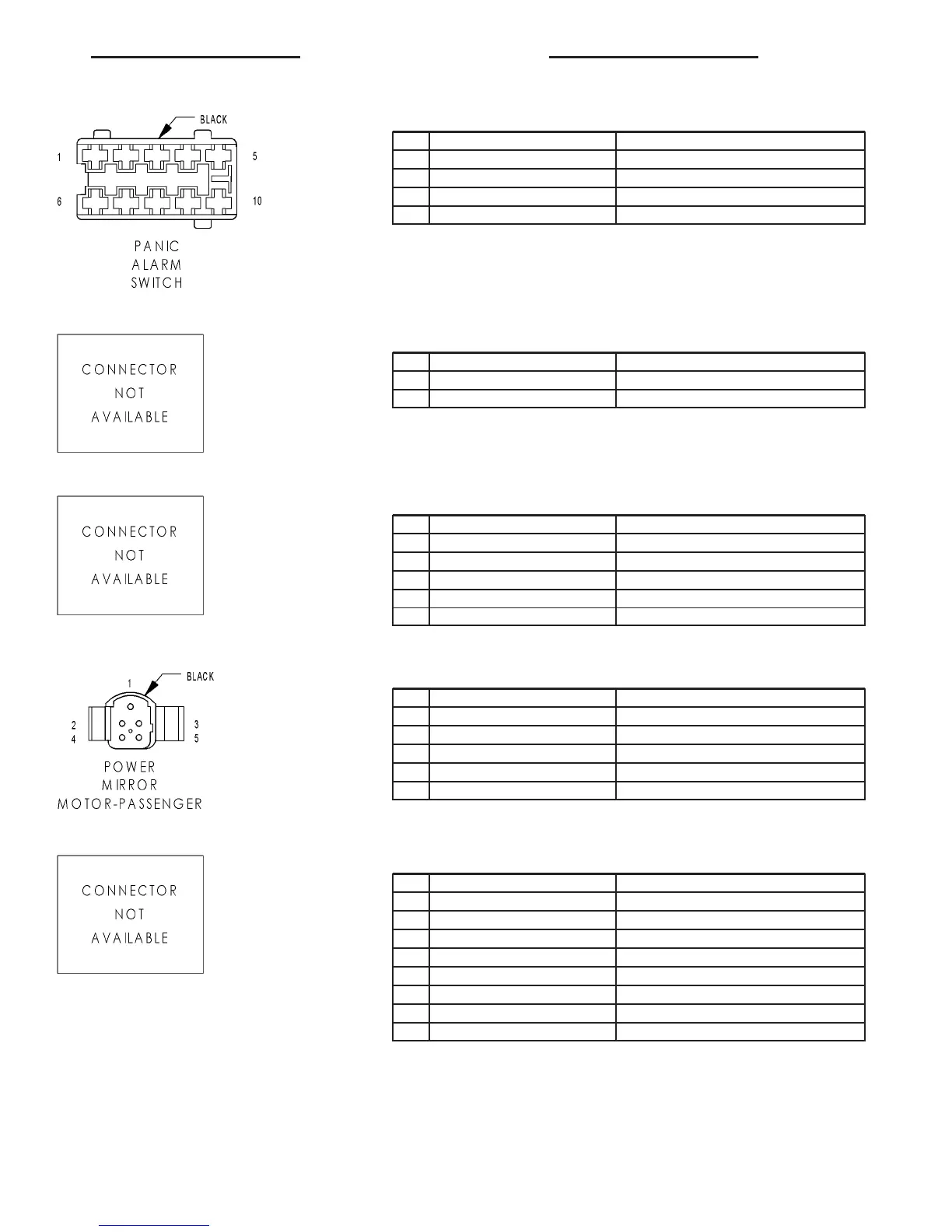

PANIC ALARM SWITCH - BLACK
CAV CIRCUIT FUNCTION
1 18GY/DG/RD LAMP DRIVER
3 18BR GROUND
7 18GY/WT PANIC SWITCH SENSE
10 18BR GROUND
PARKING BRAKE SWITCH
CAV CIRCUIT FUNCTION
1 20BR/BK PARKING BRAKE SIGNAL
2 16BR GROUND
POWER MIRROR MOTOR-DRIVER
CAV CIRCUIT FUNCTION
1 16BK/RD FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
2 18BR GROUND
3 16BK DRIVER MIRROR HORIZONTAL MOTOR DRIVER
4 16DG DRIVER MIRROR VERTICAL MOTOR DRIVER
5 16BL DRIVER MIRROR COMMON DRIVER
POWER MIRROR MOTOR-PASSENGER - BLACK
CAV CIRCUIT FUNCTION
1 18BK/RD FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
2 18BR GROUND
3 18WT/GY PASSENGER MIRROR HORIZONTAL MOTOR DRIVER
4 18DG PASSENGER MIRROR VERTICAL MOTOR DRIVER
5 18BL/DG PASSENGER MIRROR COMMON DRIVER
POWER MIRROR SWITCH
CAV CIRCUIT FUNCTION
1 18WT/GY PASSENGER MIRROR HORIZONTAL MOTOR DRIVER
2 18WT/DG DRIVER MIRROR HORIZONTAL MOTOR DRIVER
3 18BL/DG PASSENGER MIRROR COMMON DRIVER
6 18BR GROUND
7 18BK/RD FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
8 18DG/RD DRIVER MIRROR VERTICAL MOTOR DRIVER
9 18DG PASSENGER MIRROR VERTICAL MOTOR DRIVER
10 18BL/BR DRIVER MIRROR COMMON DRIVER
VA 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 53
