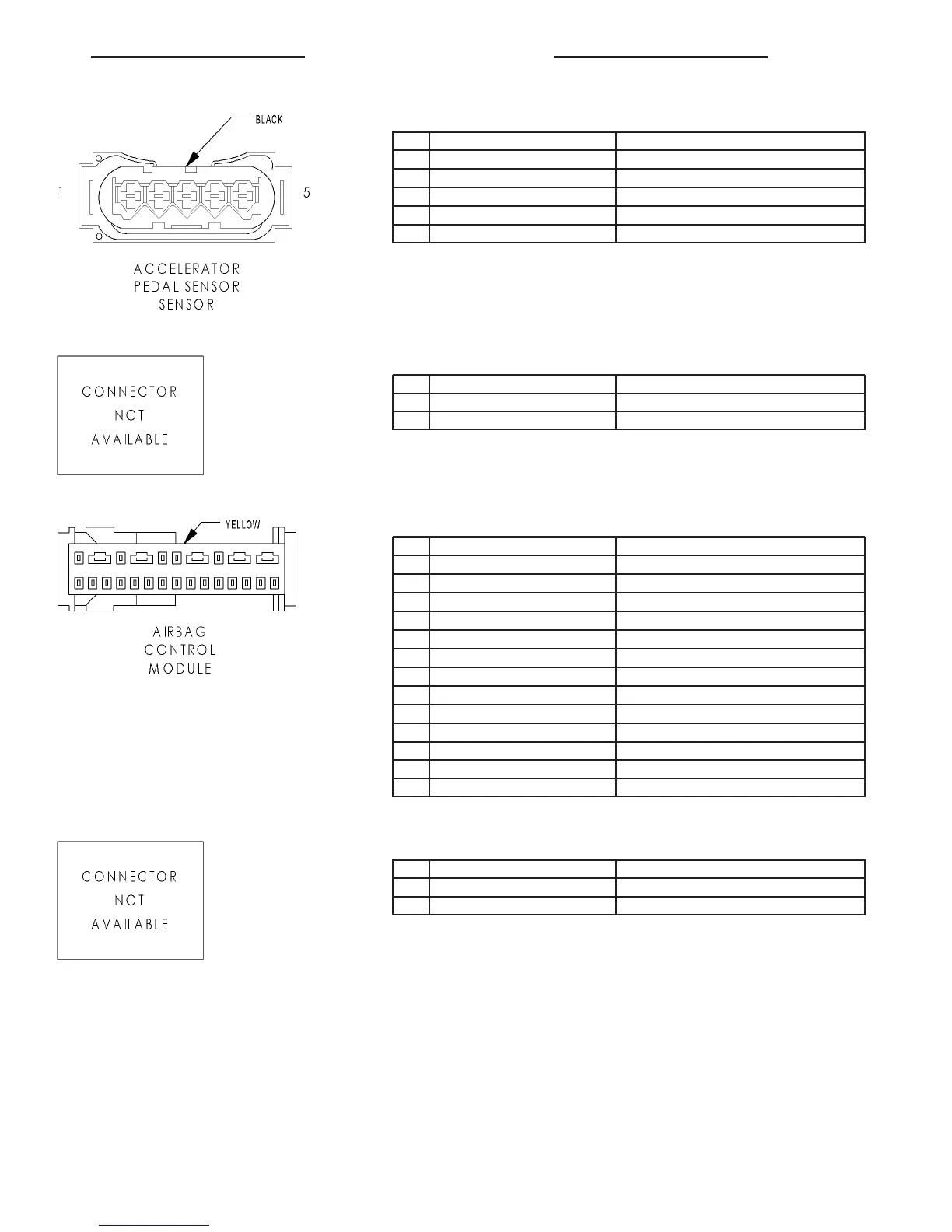

ACCELERATOR PEDAL POSITION SENSOR - BLACK
CAV CIRCUIT FUNCTION
1 18BL/RD ACCEL PEDAL POSITION SENSOR 5 VOLT SUPPLY
2 18BR/BL SENSOR GROUND
3 18BL/DG ACCEL PEDAL POSITION SENSOR SIGNAL NO. 1
4 18BR/GY SENSOR GROUND
5 18GY/DG ACCEL PEDAL POSITION SENSOR SIGNAL NO. 2
AIR OUTLET TEMPERATURE SENSOR
CAV CIRCUIT FUNCTION
1 18BR/GY AIR OUTLET TEMPERATURE SENSOR SIGNAL
2 18BR/BL SENSOR GROUND
AIRBAG CONTROL MODULE - YELLOW
CAV CIRCUIT FUNCTION
1 20BL DRIVER SEAT BELT TENSIONER LINE 2
2 20BR/YL DRIVER SEAT BELT TENSIONER LINE 1
3 20BL PASSENGER SEAT BELT TENSIONER LINE 2
4 20BR PASSENGER SEAT BELT TENSIONER LINE 1
5 20BK FUSED IGNITION SWITCH OUTPUT (RUN-START)
6 20BR GROUND
7 20YL AIRBAG WARNING INDICATOR DRIVER
9 20BK/RD K-ACM
10 20DG DRIVER AIRBAG SQUIB 1 LINE 2
11 20VT DRIVER AIRBAG SQUIB 1 LINE 1
13 20BL/DG PASSENGER AIRBAG SQUIB 1 LINE 2
14 20BR/DG PASSENGER AIRBAG SQUIB 1 LINE 1
20 20DG ENHANCED ACCIDENT REPORT DRIVER
AIRBAG SQUIB-DRIVER
CAV CIRCUIT FUNCTION
1 20DG DRIVER AIRBAG SQUIB 1 LINE 2
2 20VT DRIVER AIRBAG SQUIB 1 LINE 1
VA 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 5
