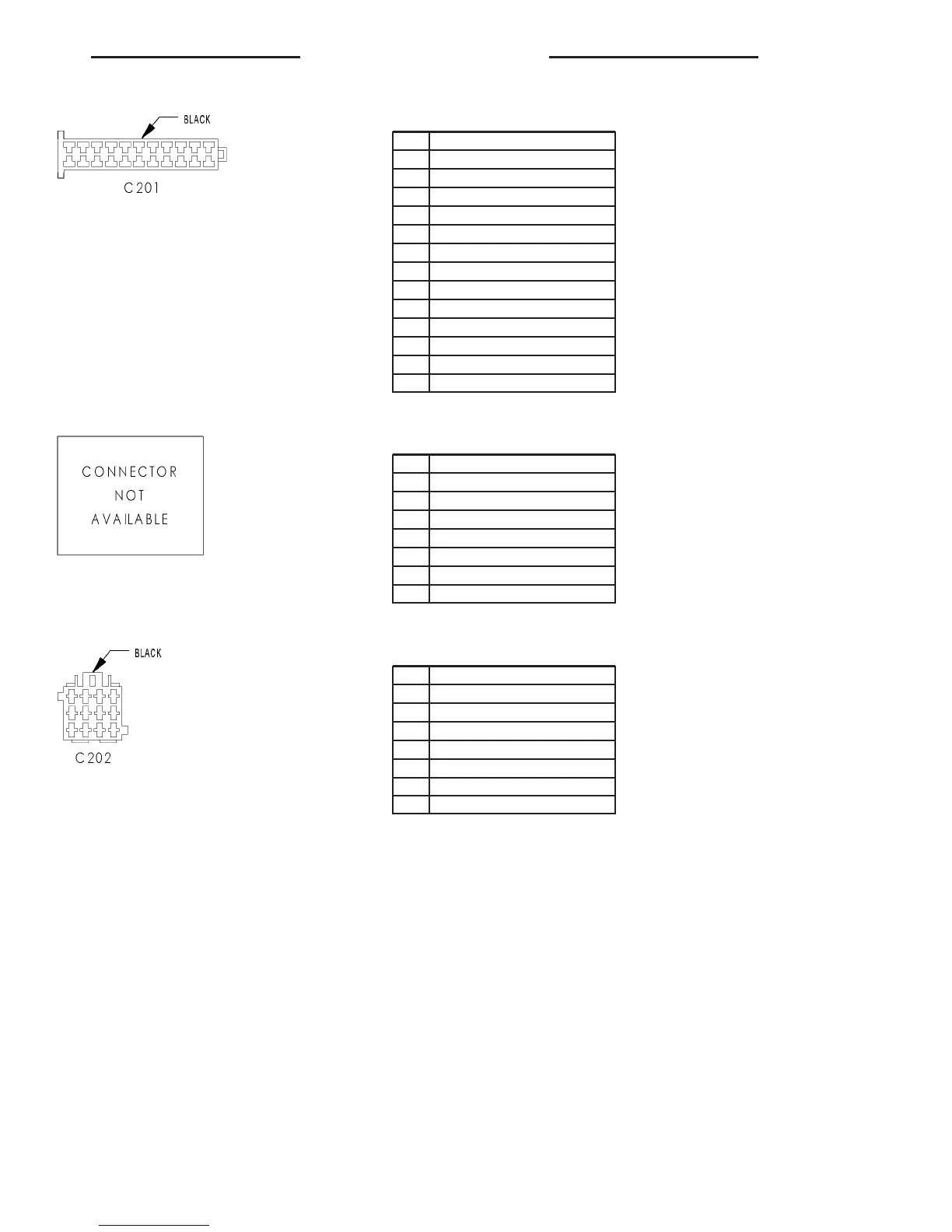

C201 - BLACK (MAIN BODY SIDE)

CAV CIRCUIT

2 16GY/DG/RD

3 16RD/BL

4 16RD/YL/WT

4 20BL/VT

5 16VT/WT

6 20BL/RD/WT

7 16BK/RD

8 16RD/YL

9 16BK/RD

10 18BK/BL

11 16YL

13 16RD

15 18RD/BK

C202 - (DASH SIDE)

CAV CIRCUIT

1 16WT/RD

2 16WT/BL/RD

3 20BK/BL/RD

4 20BL/DG

6 18BK/DG

7 20DG/WT

8 20DG

C202 - BLACK (MAIN BODY SIDE)

CAV CIRCUIT

1 16WT/RD

2 16WT/BL/RD

3 20BK/BL/RD

4 20BL/DG

6 18BK/DG

7 20DG/WT

8 20DG

VA 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 15
