(28) Detach intermediate plate (3) (Fig. 40) from
converter housing (2).
(29) Remove multiple-disc pack B3 (2) (Fig. 41)
and spring washer (3) by removing snap-ring (1) in
transmission housing. To facilitate removal of the
snap-ring (1), compress the multiple-disc pack B3 (2).
(30) Unscrew Torx socket bolts (7) (Fig. 41).
(31) Remove multiple-disc brake B2 (4) (Fig. 41)
from transmission housing. The externally toothed
disc carrier for multiple-disc holding clutch B2 is also
the piston for multiple-disc holding clutch B3.
(32) Remove parking lock gear (5) (Fig. 41).
ASSEMBLY
(1) Insert parking lock gear (5) (Fig. 42).
(2) Install multiple-disc holding clutch B2 (4) in
transmission housing (6) (Fig. 42).
(3) Screw in Torx socket bolts (7). Tighten the bolts
to 16 N·m (141 in.lbs.).

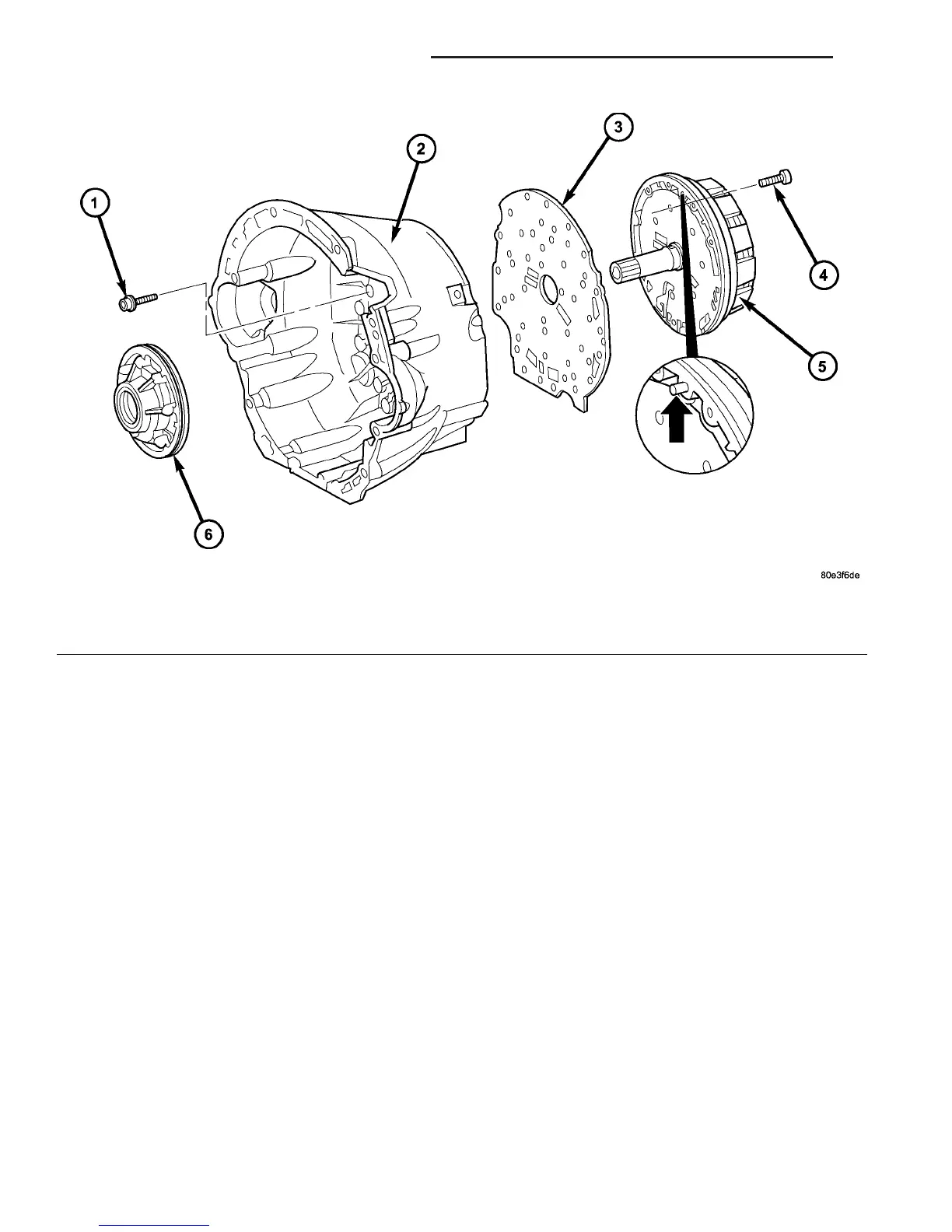

Fig. 40 Remove Holding Clutch B1 and Oil Pump
1 - BOLTS - M6X32 4 - BOLTS - M8X35
2 - CONVERTER HOUSING 5 - HOLDING CLUTCH B1
3 - INTERMEDIATE PLATE 6 - OIL PUMP
21 - 34 AUTOMATIC TRANSMISSION - NAG1 VA
AUTOMATIC TRANSMISSION - NAG1 (Continued)
