(3) Rotate the bulb holder counterclockwise about
30 degrees and pull it straight out from the lamp
housing (Fig. 25).
(4) Remove the bulb from the front turn/park/side
marker bulb holder.
INSTALLATION
(1) Install the bulb into the front turn/park/side
marker bulb holder.
(2) Insert the bulb holder straight into the front
lamp unit housing and rotate the bulb holder clock-
wise about 30 degrees to lock it into place (Fig. 25).
(3) Reconnect the battery negative cable.
HEADLAMP LEVELING MOTOR
REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Disengage and swing the retainers that secure
the front lamp unit rear cover to each side of the
lamp housing and remove the cover (Fig. 26).
(3) Disconnect the front lamp unit wire harness
connector from the connector receptacle for the head-
lamp leveling motor (Fig. 27).

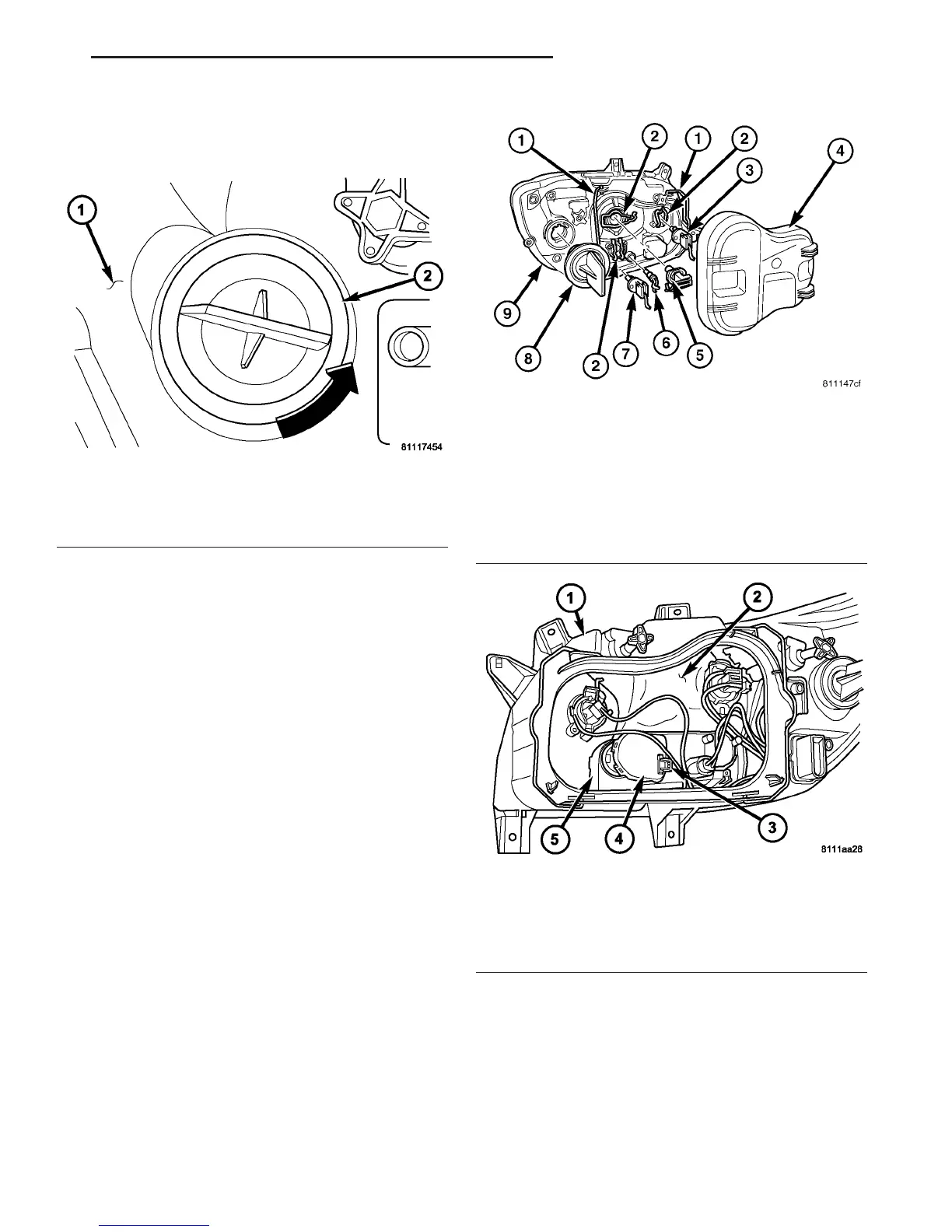

Fig. 25 Front Turn/Park/Side Marker Bulb Remove/
Install
1 - LAMP HOUSING
2 - BULB HOLDER
Fig. 26 Front Lamp Unit Bulbs Remove/Install
1 - COVER RETAINER (2)
2 - BULB RETAINER (3)
3 - FOG LAMP BULB (OPTIONAL)
4 - COVER
5 - LOW BEAM BULB
6 - POSITION BULB
7 - HIGH BEAM BULB
8 - TURN/PARK/SIDE MARKER BULB
9 - FRONT LAMP UNIT
Fig. 27 Headlamp Leveling Motor
1 - HOUSING
2 - REFLECTOR
3 - CONNECTOR
4 - MOTOR
5 - MOUNT
VA LAMPS/LIGHTING - EXTERIOR 8L - 15
FRONT TURN/PARK/SIDE MARKER LAMP BULB (Continued)
