SEAT - REAR
REMOVAL
(1) Turn all release levers on the legs of the appro-
priate rear seat up. (Fig. 6) and (Fig. 7)
(2) Lift seat up and out of the seat mounting cups.
INSTALLATION
(1) With seat facing forward, insert mounting legs
into the respective mounting cups.
(2) Slide seat forwards with some force as far as it
will go, until the release levers are heard to engage
and all release levers are parallel to the vehicle floor.
REAR SEAT BACK SHIELD
REMOVAL
(1) Remove the screws and remove the panel. (Fig.
8)
INSTALLATION
(1) Install the panel and install the screws.

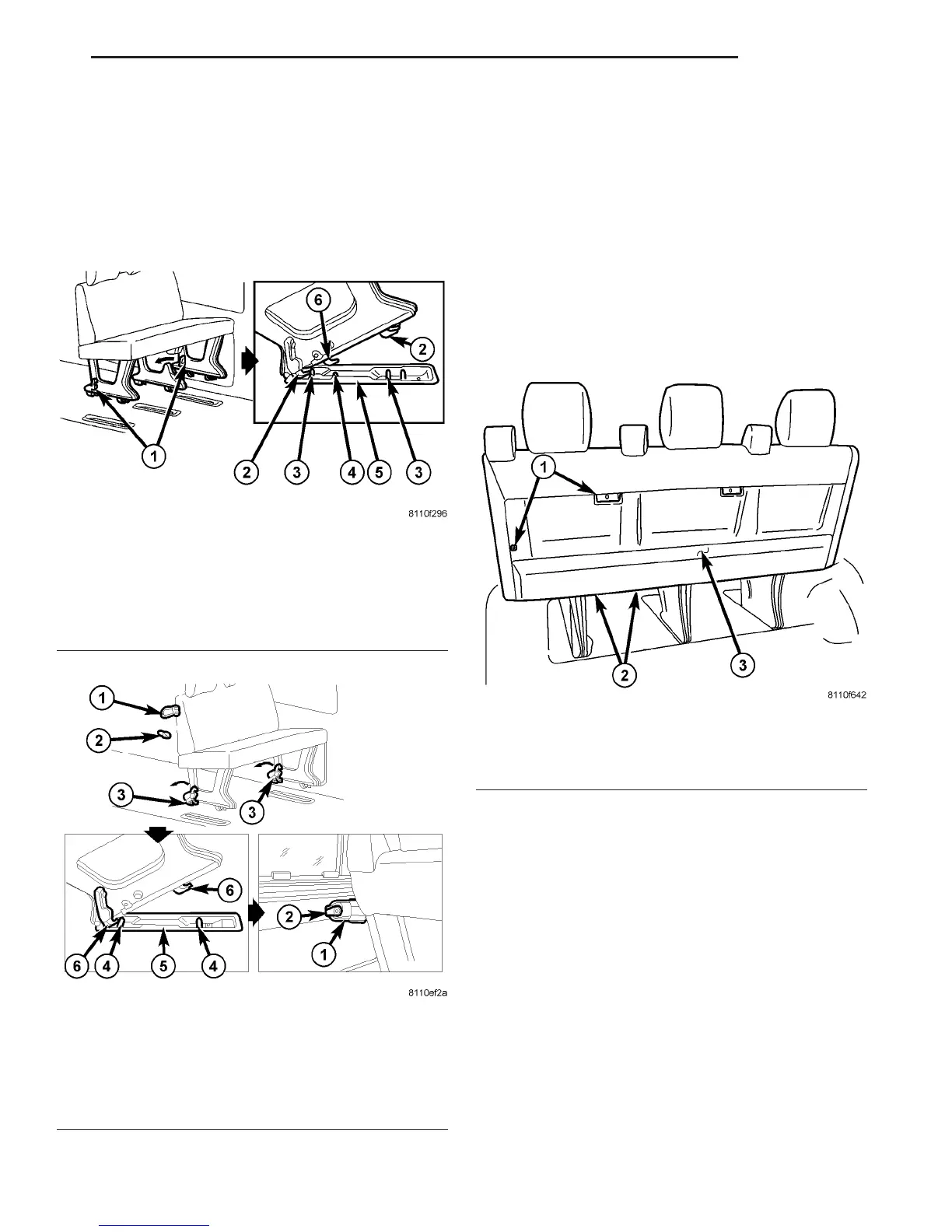

Fig. 6 THREE PASSENGER BENCH
1 - RELEASE LEVERS
2 - MOUNTING LEGS
3 - RETAINING BOLT
4 - RETAINING BOLT
5 - MOUNTING CUP
6 - MOUNTING LEG
Fig. 7 TWO PASSENGER BENCH
1 - RESTRAINT CABLE
2 - HOOK
3 - RELEASE LEVERS
4 - RETAINING BOLT
5 - MOUNTING CUP
6 - MOUNTING LEGS
Fig. 8 REAR SEAT
1 - SCREWS (4)
2 - SCREWS (6)
3 - PANEL
VA SEATS 23 - 79
