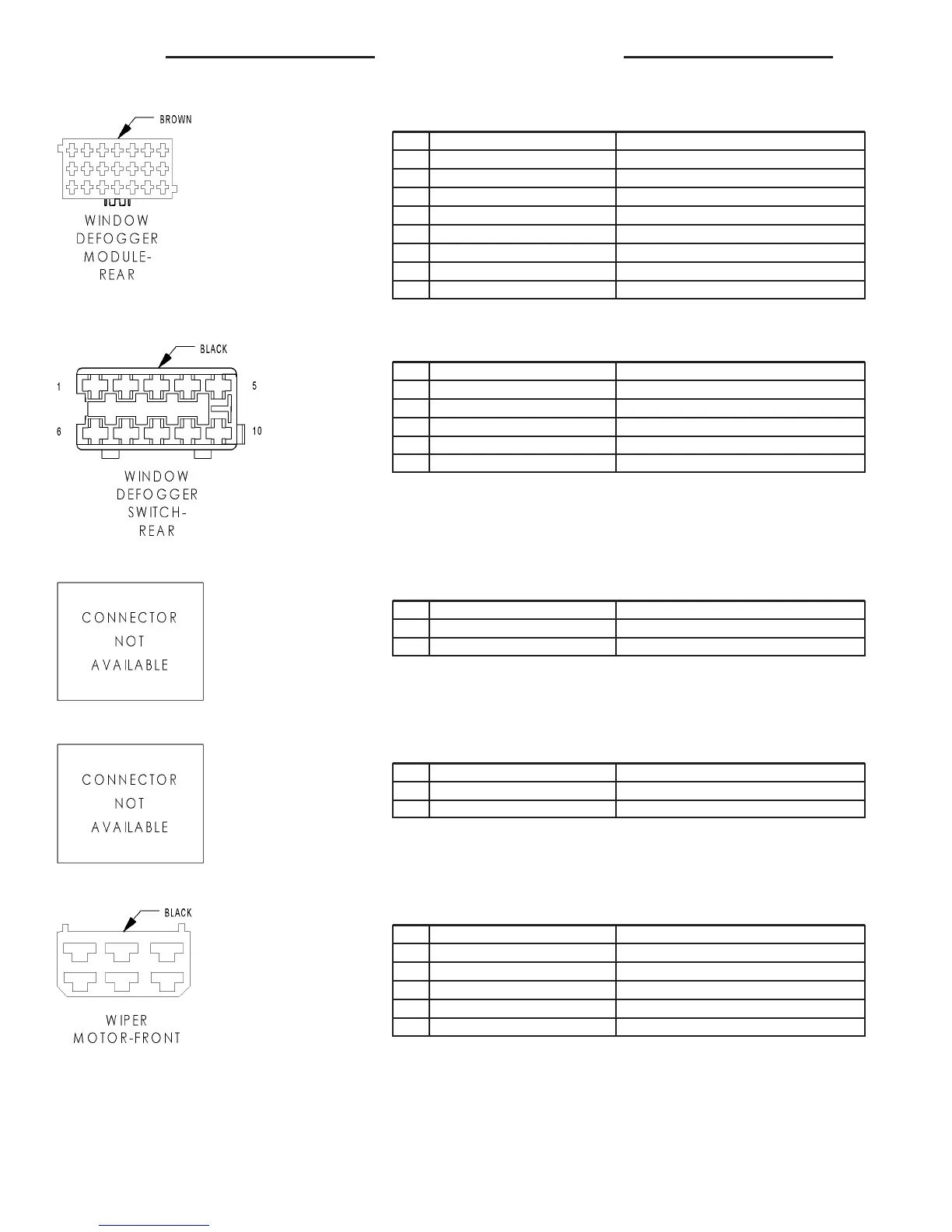

WINDOW DEFOGGER MODULE-REAR - BROWN
CAV CIRCUIT FUNCTION
1 14RD/DG FUSED B(+)
4 16RD/BK FUSED D(+) RELAY NO. 1 OUTPUT
6 14RD/DG FUSED B(+)
7 16BR GROUND
10 16GY/RD WINDOW DEFOGGER RELAY-RIGHT REAR CONTROL
13 16GY WINDOW DEFOGGER SWITCH-REAR OUTPUT
15 16GYDG WINDOW DEFOGGER RELAY-LEFT REAR CONTROL
16 16GY/DG LAMP DRIVER
WINDOW DEFOGGER SWITCH-REAR - BLACK
CAV CIRCUIT FUNCTION
1 18GY/DG/RD LAMP DRIVER
3 16BK/YL FUSED IGNITION SWITCH OUTPUT (RUN-START)
7 16GY WINDOW DEFOGGER SWITCH-REAR OUTPUT
9 16GY/DG LAMP DRIVER
10 18BR GROUND
WINDOW DEFOGGER-LEFT REAR
CAV CIRCUIT FUNCTION
1 16GY WINDOW DEFOGGER RELAY-LEFT REAR OUTPUT
2 16BR GROUND
WINDOW DEFOGGER-RIGHT REAR
CAV CIRCUIT FUNCTION
1 16GY WINDOW DEFOGGER RELAY- RIGHT REAR OUTPUT
2 16BR GROUND
WIPER MOTOR-FRONT - BLACK
CAV CIRCUIT FUNCTION
1 16BR GROUND
2 16BR/BK WIPER ON/OFF RELAY OUTPUT
3 16BK/VT FUSED IGNITION SWITCH OUTPUT (RUN-START)
5 16BK WIPER MOTOR CONTROL
6 16BK/GY/RD WIPER SWITCH OUTPUT
8W - 80 - 66 8W-80 CONNECTOR PIN-OUTS VA
