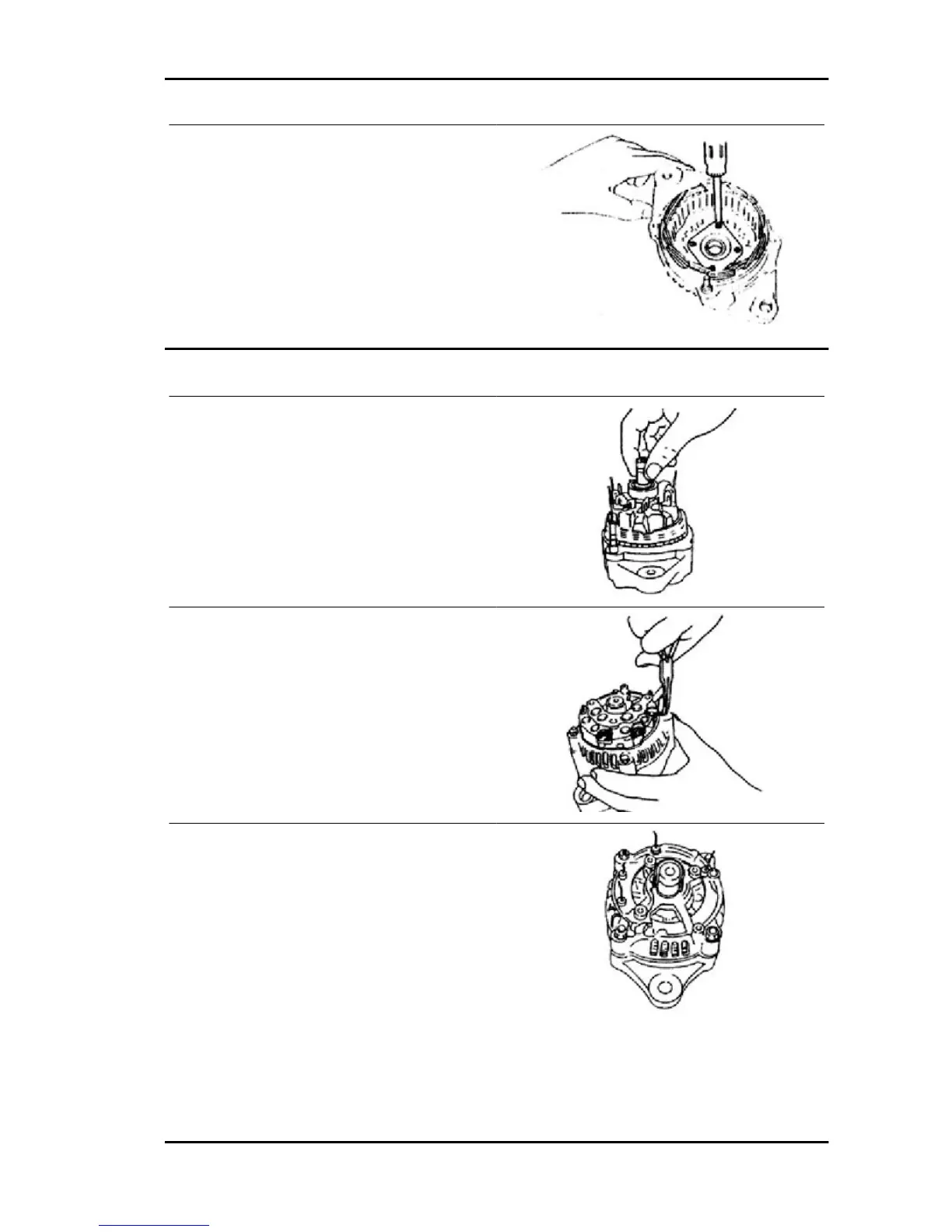

4. Refit the plate with the 4 screws.
Refitting
Assembly
1. Fit the rotor in the relevant housing.
2. Refitting the rectifier housing cover.
Fit the rectifier housing cover by using two bolts
and nuts.
- PAY ATTENTION NOT TO DAMAGE THE STATOR CA-
BLES DURING REFITTING.
- IF FITTING TURNS OUT DIFFICULT, SLIGHTLY PRESS BY
TAPPING WITH A PLASTIC HAMMER.
3. Refitting the rectifier support, regulator and the
brush holder.
•
Fix the rectifier support to the cover,
with the stator coil wires passing
through the rectifier support holes.
PORTER 1.3 16V Electrical system
ES - 123
