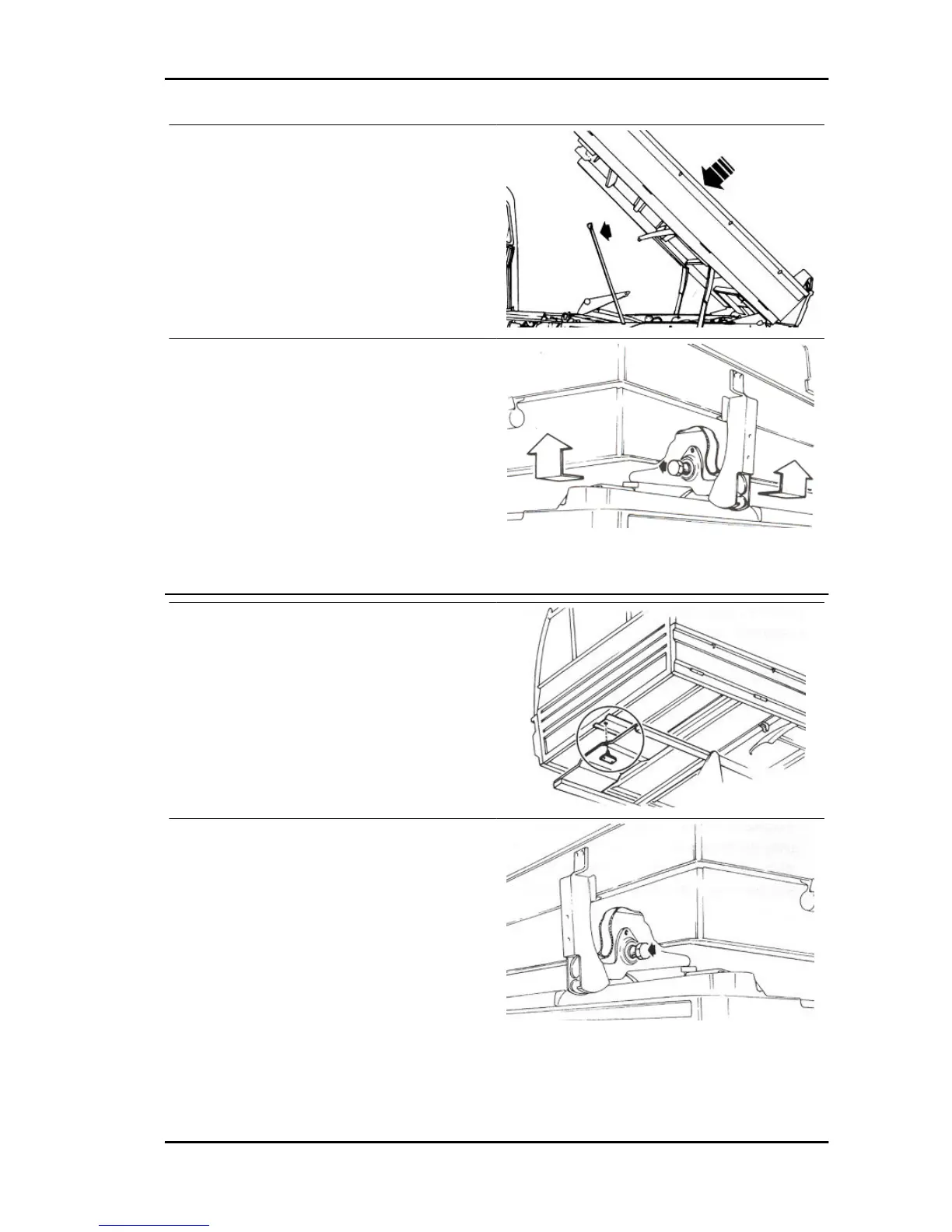

Now it is necessary to lower the tipper to continue
removal.
Slightly lift the tipper and release the safety prop,
then lower the loading deck carefully.
PERFORM THIS OPERATION VERY CAREFULLY, IT
COULD BE EXTREMELY HAZARDOUS FOR THE OPERA-
TOR.
Remove the two screws which act as a pin for the
hinge.
To perform this operation, it is necessary to slightly
lift the loading deck so that the two pins can be
released. Slide off the screw from its seat, and pull
the tailboard unlocking lever.
Now the tipper can be removed by lifting and then
resting it on the ground using two supports so that
the mudguards do not touch the ground.
Tipper refit
To refit the tipper, it is necessary to lift it from the
ground and place it on the vehicle with the aid of
the front reference pin as shown in the figure.
Fit the screws with the tailboard locking lever in the
hinges following the removal operations but in re-
verse order. To facilitate this operation it is neces-
sary to slightly move the deck vertically or
horizontally so as to align the deck and the vehicle
chassis holes. Once this operation is finished,
place the relevant nut with washer on the screw
but do not tighten it.
PORTER 1.3 16V Tipper version
