Water pipe fitting
Fit the water pipe to the cylinder block to use the
throttle body.
Fit the relevant clamps.

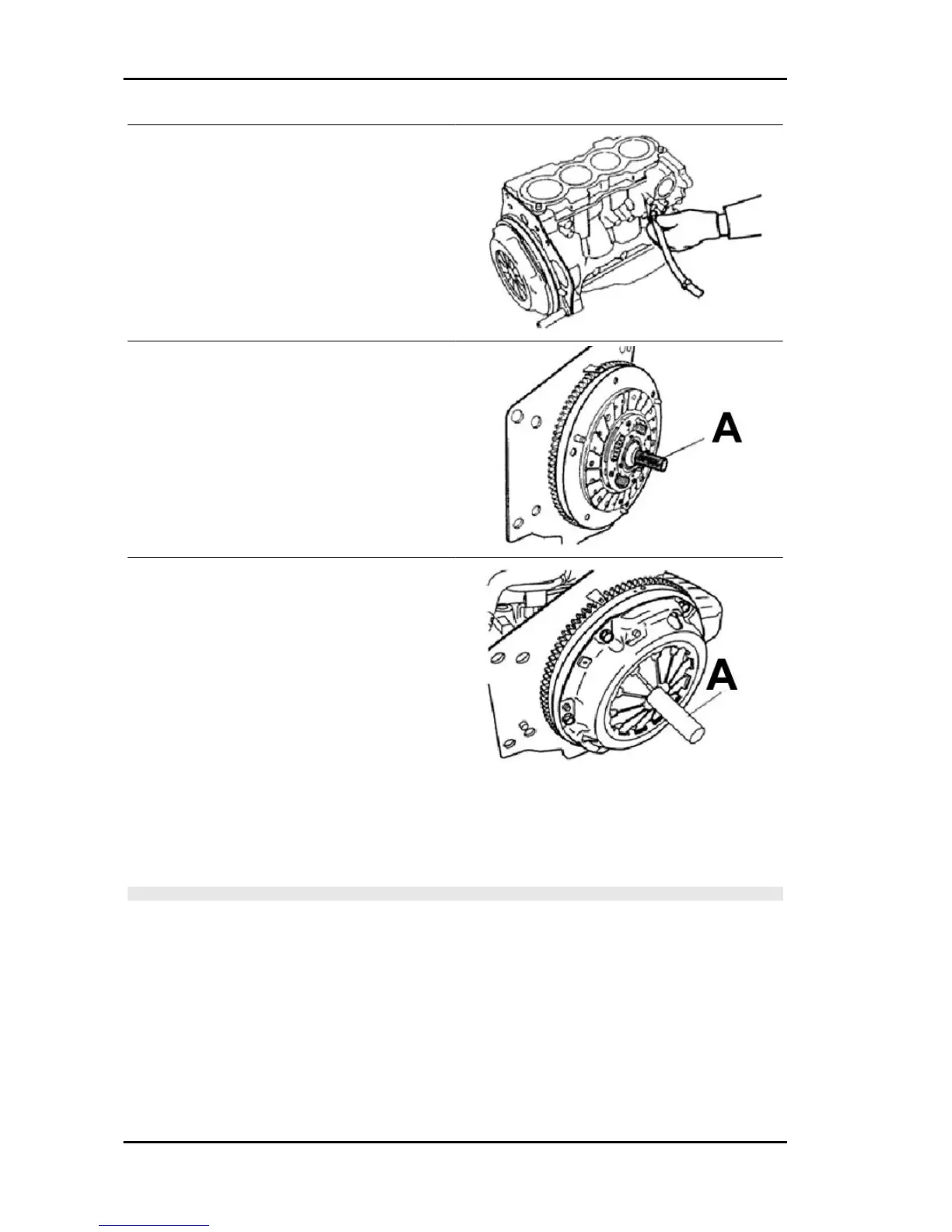

Fitting the clutch disc and driven plate
1. Fit the special tool A in the rear end of the crank-
shaft.
2. Fit the clutch disc.
Specific tooling
020196y Clutch guiding tool
3. Fit the clutch cover, aligning the reference pin
of the same cover.
Tighten the fixing bolts to the prescribed torque.
Locking torques (N*m)
Clutch cover 15÷22
Flywheel fitting
1. Fit the flywheel on the crankshaft.
2. Application of sealant to the flywheel screws.
•
Wash the flywheel screws, then, remove grease and dry them.
N.B.
- WHEN GREASE IS REMOVED FROM SCREWS, CLEAN COMPLETELY EVERY TRACE OF OIL,
USING SOLVENT.
- MAKE SURE THAT THERE ARE NO TRACES OF ADHESIVE OR FOREIGN MATTER, (DUST),
ON SCREWS.
- ALSO WHEN USING NEW SCREWS, CARRY OUT THIS OPERATION.
•
Check for possible damage to the flywheel screws. Replace each damaged flywheel screw.
- CARRY OUT OPERATIONS OF POINT (1) ALSO WHEN A NEW SCREW IS USED.
•
Clean the threaded seats of the crankshaft. Remove grease and dry them.
- MAKE SURE THAT THERE ARE NO TRACES OF SEALANT OR FOREIGN MATTER, AS FOR
EXAMPLE DUST, IN THE FLYWHEEL THREADS.
Engine PORTER 1.3 16V
EN - 324
