Characteristic
Specified value:
102.5 - 141.7 Nm
4. Adjusting crown gear clearance and differential clearance in axial direction
Characteristic
Specified value:
0.1 ÷ 0.2 mm
5. Checking and adjusting the coupling area between the crown gear and the control pinion
6.Checking operations described at points 4 and 5 above

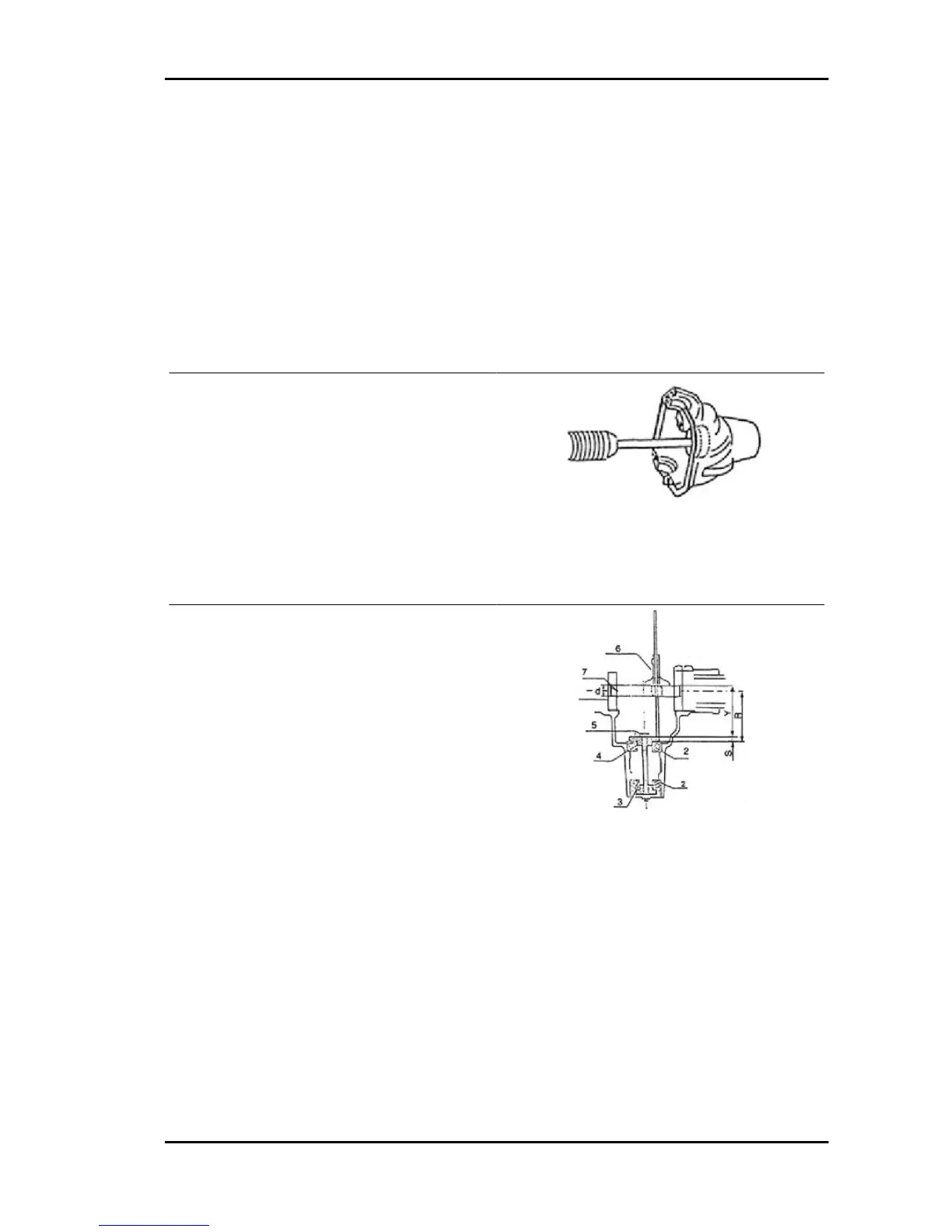

Adjusting control pinion protrusion
1 Fit the following parts, with the following special
tool.
2 Fit the bearing internal rolling fifth wheel in the
differential support.
Specific tooling
020188y Axial hub support and driving pinion
tool series - Front axle bearing and differential
pinion replacement kit
3 To determine the size of the shim washer to be
interposed between the pinion and the bearing,
position two opposed flanges, as shown in the fig-
ure. Tighten bolt (5) so that bearings can turn
freely.
4 Position the bearing supports on the differential
unit and tighten the bolts two by two.
5 Measure diameter (d) of the bearing seats.
6 Position pin (7) between the bearing seats and
measure size (Y) with a gauge.
- BE CAREFUL NOT TO TIGHTEN EXCESSIVELY.
Specific tooling
020284y Tool to adjust pinion position
PORTER 1.3 16V Differential
DI - 603
