Connect the positive (+) terminal to the
ST terminal. Make sure that the pinion
advances. If this does not occur, re-
place the remote control.
2. Pinion engagement upholding test
After having performed the test described above,
detach the remote control negative terminal. Make
sure that the guide pinion remains advanced.
If this does not occur, replace the remote control.
3. Pinion return check
After performing the pinion maintenance check,
disconnect the negative of the motor casing. Make
sure that the pinion is in the relevant housing. If
this is not met, replace the remote control.
4. Checking performance without load applied

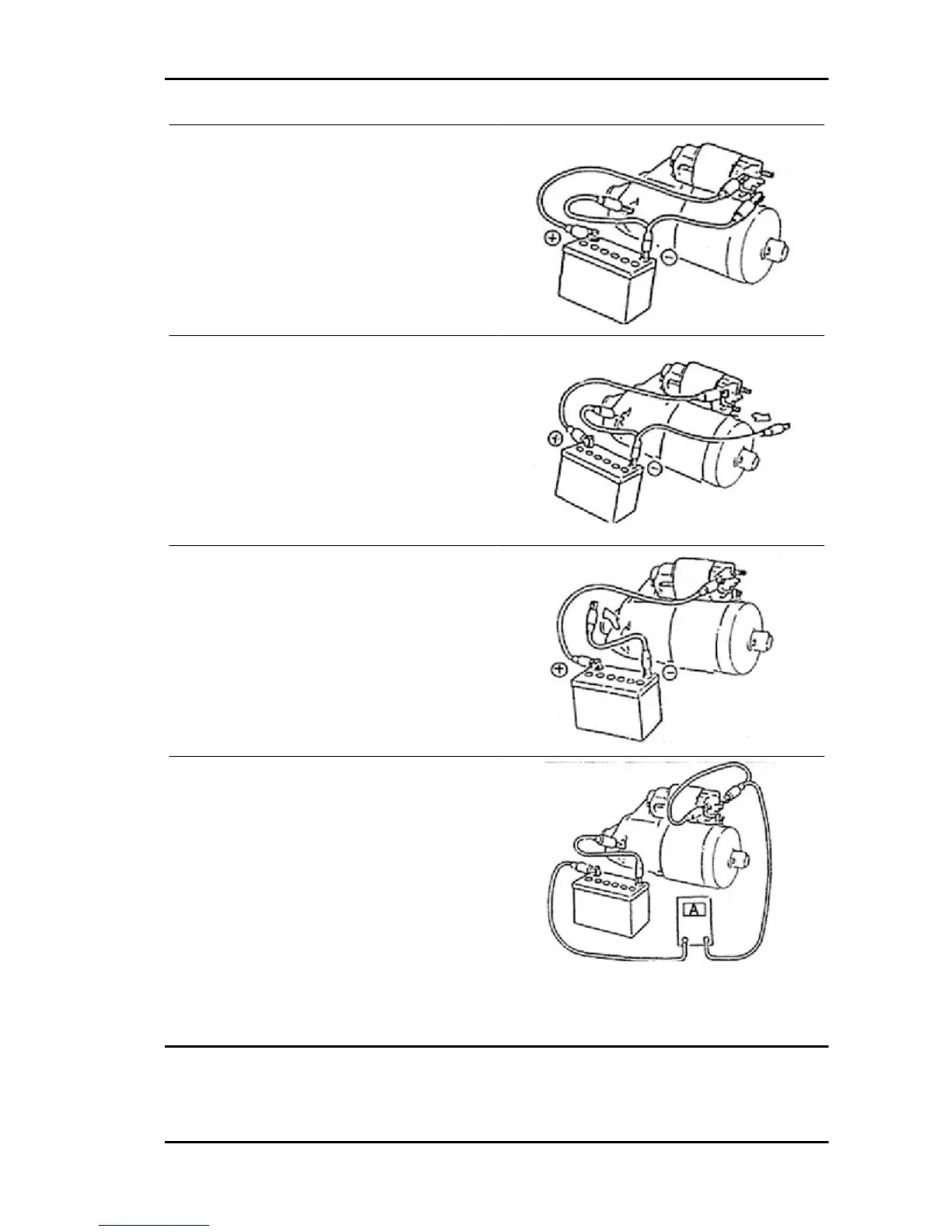

Connect the battery to the starter motor by inter-
posing an ammeter as shown in the figure.
Make sure that the motor rotates regularly while
the pinion advances. Measure the current as in the
figure:
- CONNECT THE CABLE TO THE REMOTE CONTROL, BE-
FORE PERFORMING THE TEST.
Characteristic
Prescribed current:
less than 50 A at 11 V
