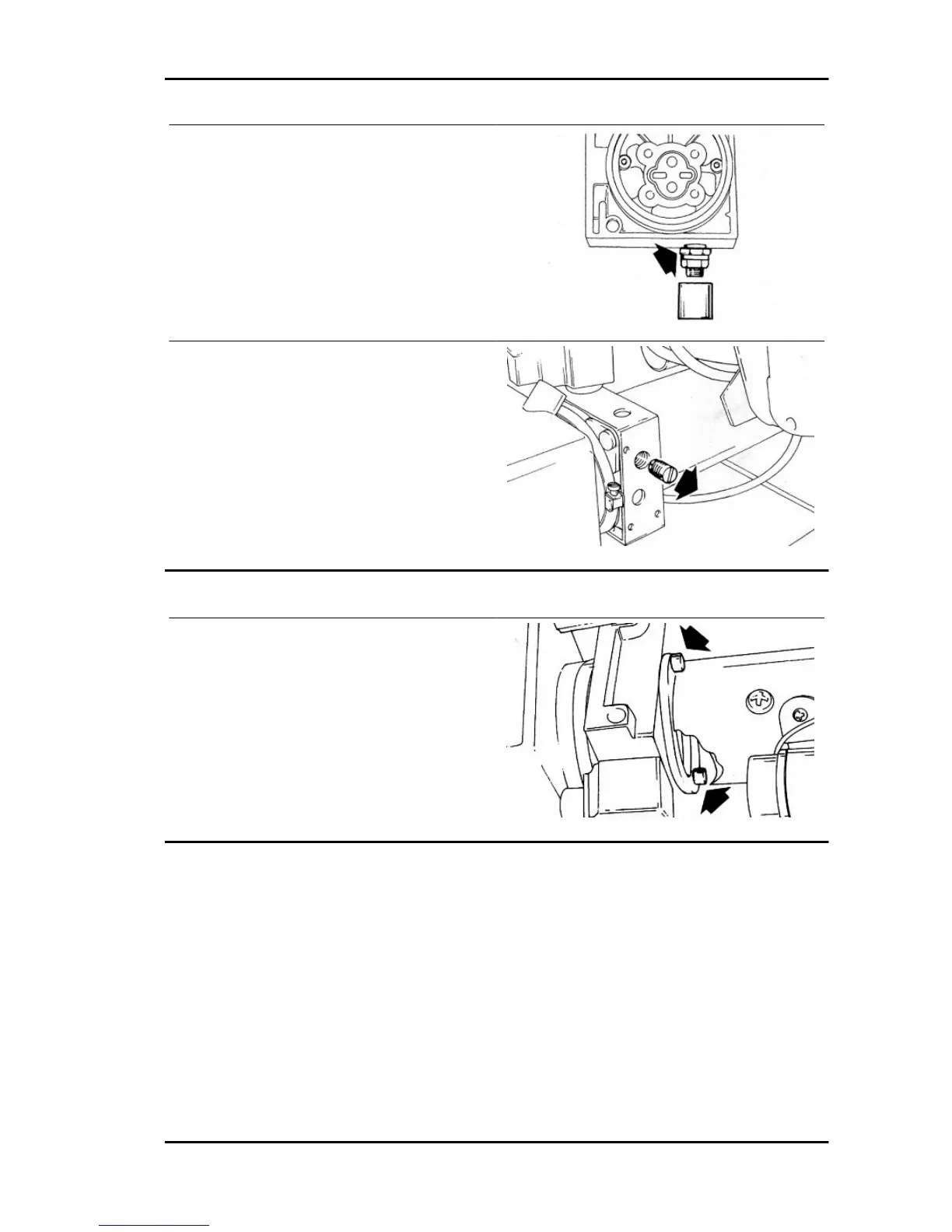

Successively insert the one-way valve in its seat
and the pressure relief valve, locking it to the pre-
scribed torque.
Locking torques (N*m)
One-way valve for valve body 25 - 30 Nm
Insert the flow control valve in its seat and start it
until it has reached the stop. Afterwards, tighten to
the prescribed torque, the appropriate socket head
cap on the head.
Locking torques (N*m)
Flow control valve for valve body 20 - 25 Nm
Montaggio corpo valvole dal motore elettrico
Fitting the valve body to the electric motor
For this operation proceed with the fitting opera-
tions but in reverse order and tighten to the pre-
scribed locking torque.
Locking torques (N*m)
valve body for electric motor 10 - 12 Nm
Montaggio particolari
Assembly of pump parts
Fit the oil filter after cleaning and blowing it with compressed air, and lock it by tightening the three
screws to the prescribed torque.
Locking torques (N*m)
hydraulic oil filter 8 Nm
Before carrying out the following operation make sure that the contact surfaces between the valve body
and the pump are perfectly smooth and have no dents.
Fit a new O-ring in the specific slot located in the valve body. Before this operation, immerse the O-ring
in oil for about 10 min.
PORTER 1.3 16V Tipper version
VR - 735
