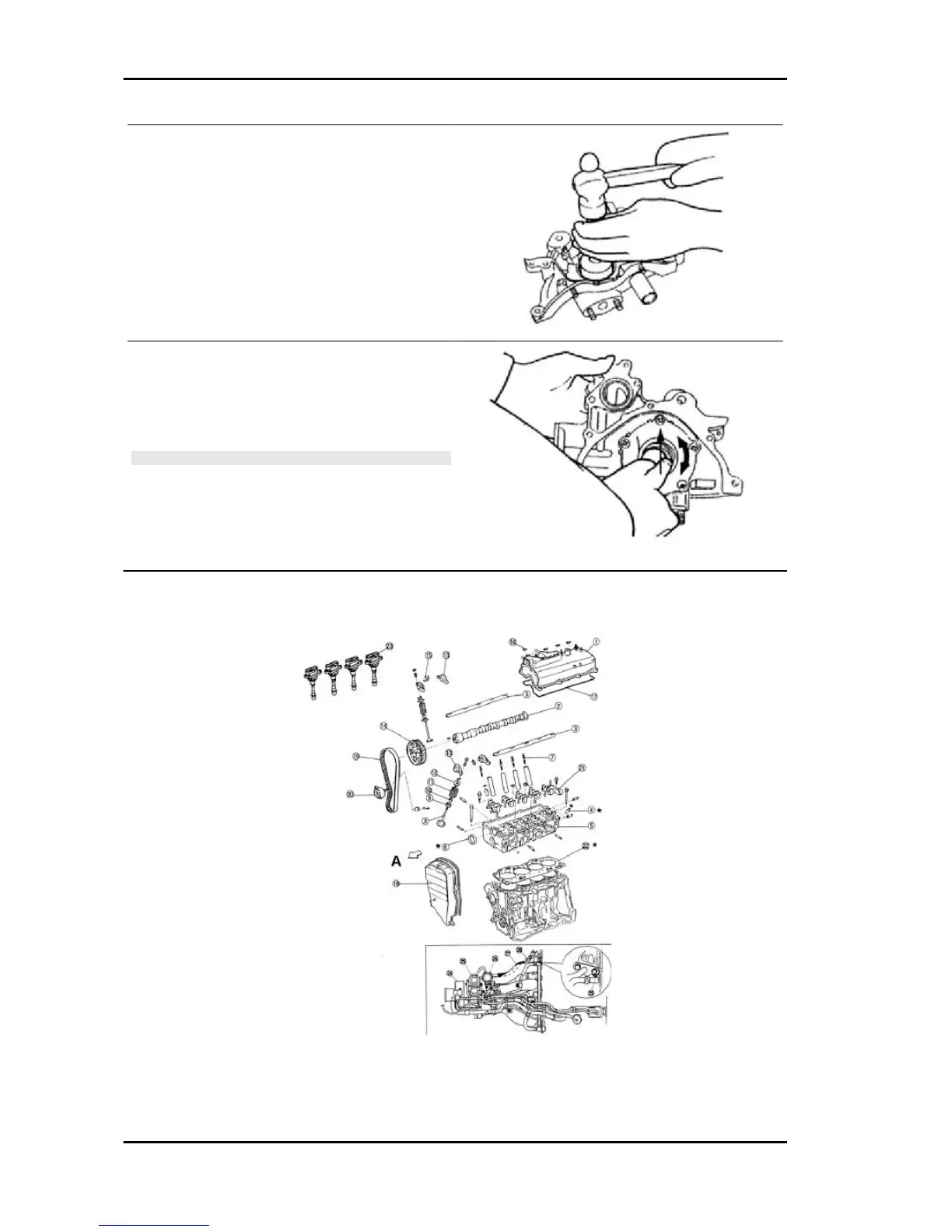

6. Insert a new sealing ring in the right position with
the following special tool.
- BE CAREFUL NOT TO DAMAGE THE OIL PUMP DURING
FITTING.
- MAKE SURE THAT THE SEALING RING IS NOT PLACED
DIAGONALLY.
Specific tooling
020384Y TOOL FOR TIMING SIDE CRANK-
SHAFT OIL SEAL
7. Turn rotors by hand. Check that rotors turn free-
ly.
If rotor jamming is detected, carry out a pump
service.
N.B.
- THE FUNCTIONAL TEST PROCEDURE OF THE OIL PUMP
IS DESCRIBED IN THE 'LUBRICATION SYSTEM' SECTION .
Cylinder head assembly
Cylinder head unit
KEY:
1. Cylinder head cover
Engine PORTER 1.3 16V
EN - 254
