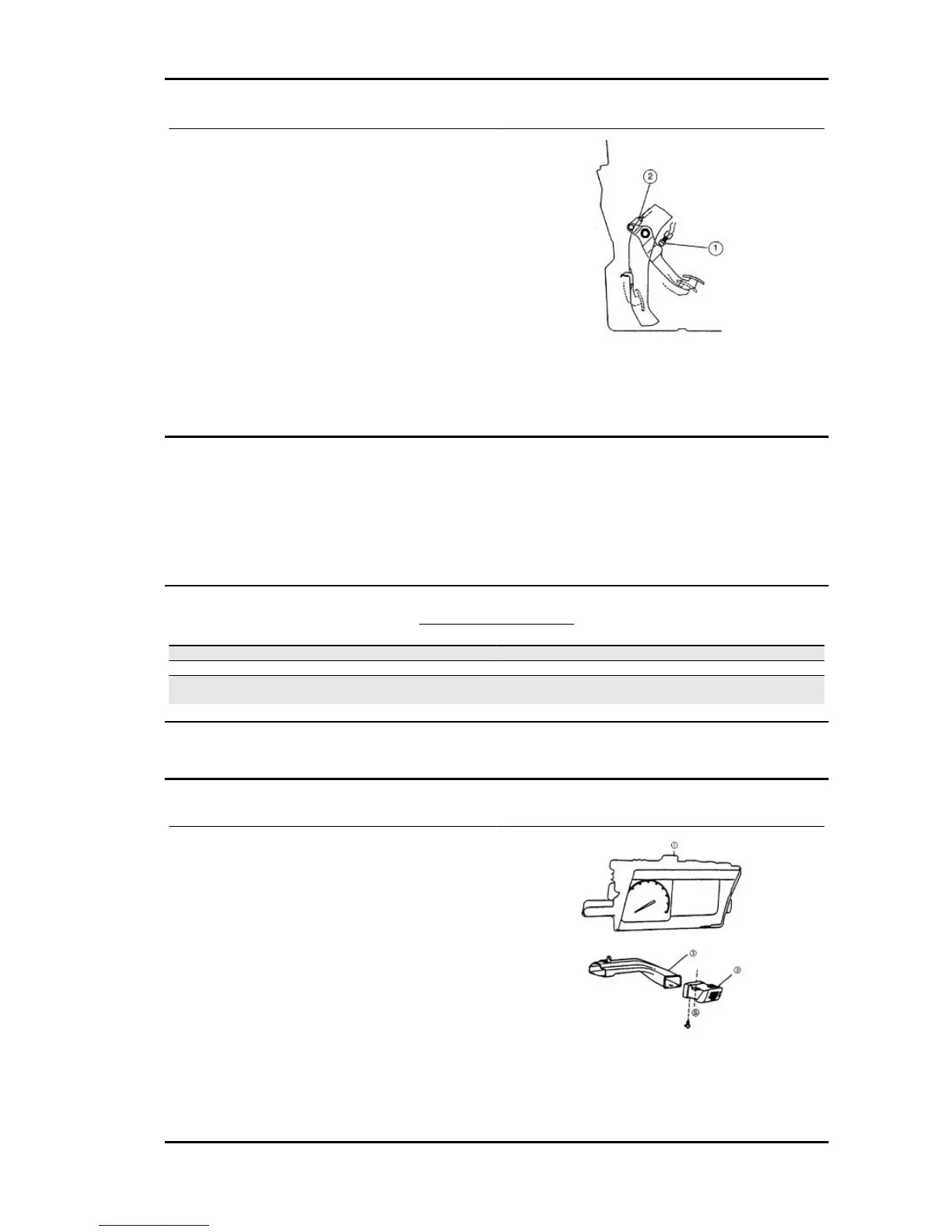

Pedal height adjustment
1. Remove the fixing pin of the push rod.
2. Disconnect the stop light switch connector.
Loosen the nut 1 and insert the switch so as to
adjust the pedal height according to the specifica-
tion. Then tighten the nut 1.
3. Loosen the nut 2 and align the u-bolt with the
pin hole. Fit the pin.
4. Adjust the pedal travel and tighten the nut 2.
5. Once adjustment is finished, make sure that the
rear stop light works properly.
Adjusting the reserve travel of the brake pedal
1. Run the engine at idle speed.
2. With the parking brake lever lowered, push the brake pedal exercising 30 kg. force. Then measure
the distance between the brake pedal pushed and the front panel.
SPECIFIED VALUE: NOT LESS THAN 85 MM
SPECIFIED VALUES
Specification
Desc./Quantity
Pedal height in mm 132 - 142
Pedal travel in mm 2 - 7
Pedal reserve travel Not less than 85 mm [When the force applied on the pedal is
30 kg]
Brake fluid reservoir
Removal
Removal
Remove the parts, following the numerical order
illustrated.
FIT AND REMOVE THE MAIN RESERVOIR/CYLINDER AS-
SEMBLY FROM THE INSTRUMENT PANEL LOWER SIDE.
PORTER 1.3 16V Braking system
BS - 615
