WEAR OF FRICTION MATERIAL

Specification Desc./Quantity

Friction material thickness: 4.0 mm

Maximum limit allowed: 1.0

BRAKE DRUM WEAR

Specification Desc./Quantity

Drum diameter: 200 mm

Maximum limit allowed: 201.5 mm

Check that the brake drum is not damaged, that

there are no signs of wear on the internal surface,

scoring or irregular wear.

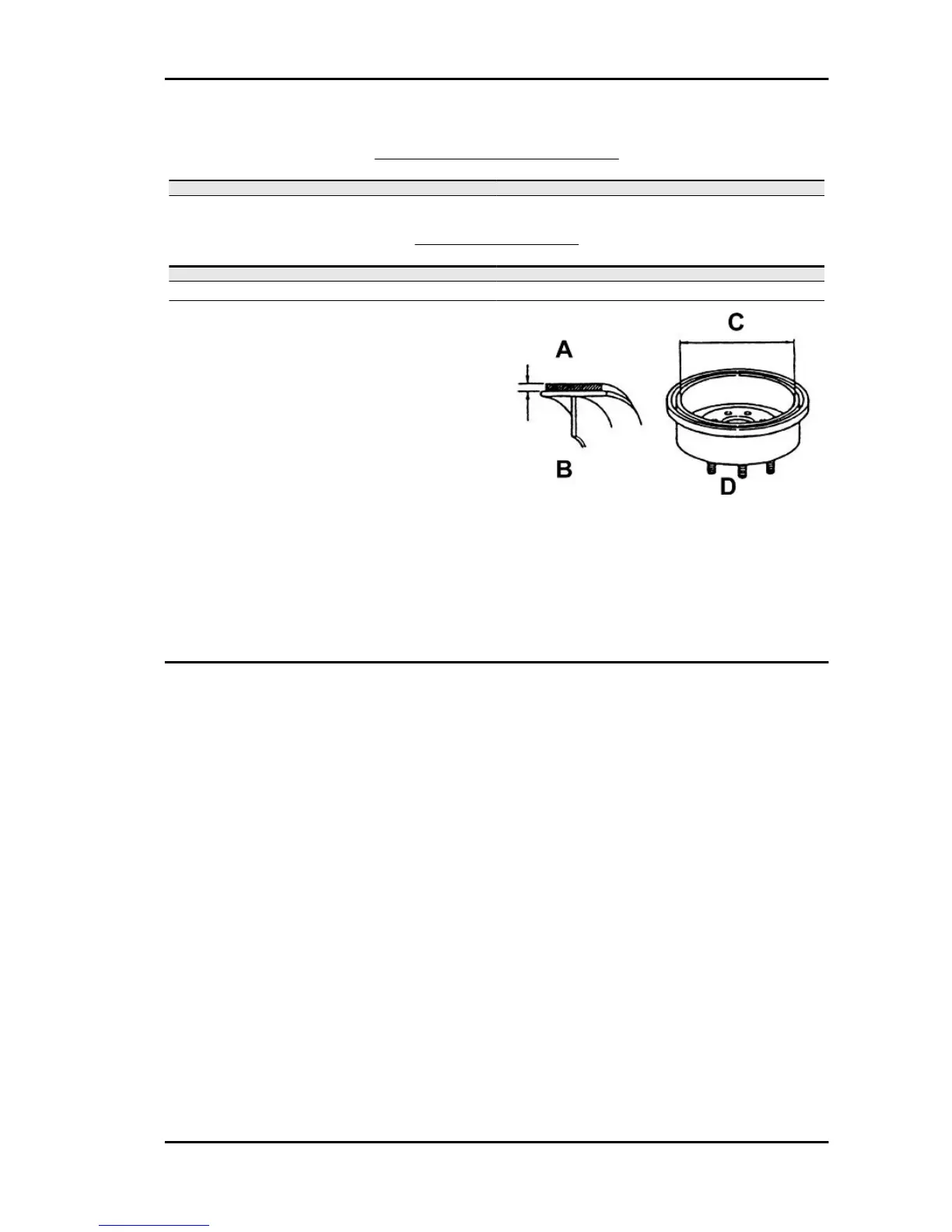

KEY:

A. Thickness

B. Gasket

C. Diameter

D. Drum

Installation

Fit the parts, following the numerical order illustrated

PORTER 1.3 16V Braking system

BS - 631
