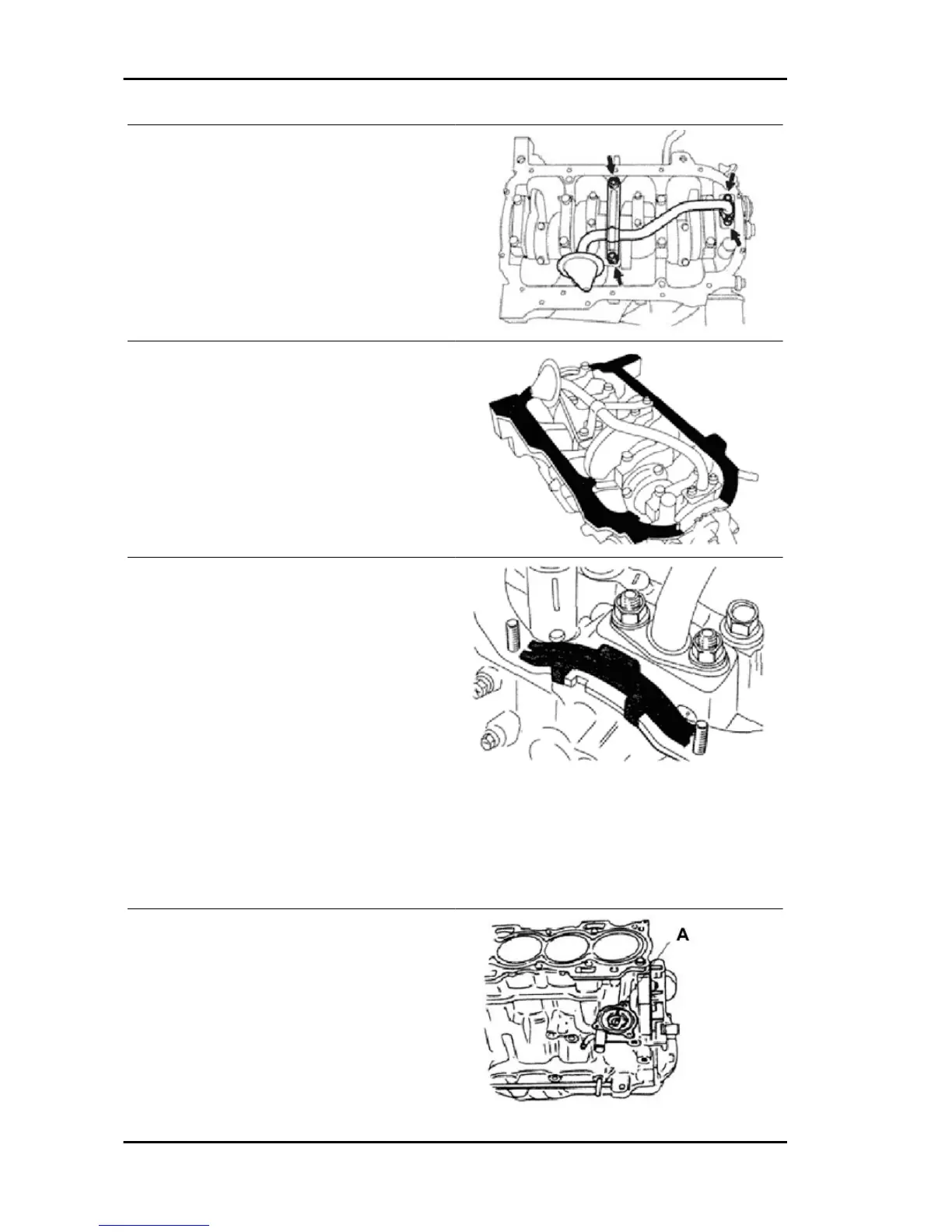

Oil suction system fitting
Fit the oil suction system interposing a new gasket
and spacer.
Lock the nuts.
Locking torques (N*m)
Nut locking 15 ÷ 22
Oil sump fitting
1. Apply sealant onto the cylinder block surface.
- APPLY THE RIGHT SEALANT QUANTITY IN ORDER TO
AVOID THE FORMATION OF EXCESSIVE RESIDUES IN-
SIDE THE ENGINE.
Recommended products
Three Bond 1207C SEALANT
-
2. Position the oil sump gaskets.
- MAKE SURE THAT THE FINAL SECTION OF THE OIL
SUMP GASKET OVERLAPS AT LEAST 10 MM WITH AD-
HESIVE.
3. Fit the oil sump
Tighten the screws and nuts fixing the oil sump to the specified torque value evenly and operate in two
or three stages.
Locking torques (N*m)
Oil sump - Cylinder block 7÷12
Fitting the thermostat in the cylinder block
Fit the thermostat in the cylinder block so that the
wander plug section A can be placed on the upper
side.
- BE CAREFUL TO FIT THE THERMOSTAT WANDER PLUG
IN THE RIGHT DIRECTION. FAILURE TO OBSERVE THIS
SAFETY MEASURE CAN CAUSE OVERHEATING.
Engine PORTER 1.3 16V
EN - 336
