Gearbox
This section of the manual describes the gear components and shows the removal/fitting operations.
Precautions
Before removing and fitting a new gear, it is necessary to observe the following precautions:
•
It is advisable to use the following special tools, so that parts are not damaged.
•
The gear removal procedure has been omitted, since the procedure above is the same
applied to the gears used so far.
•
It is advisable to carry out removal operations after the checks (as for example: the proper
operation of the gear and excessive clearance, etc.) that can be only lead when the gear is
assembled.
•
It is advisable to check the tightening torque when it is detected that the main section bolts
are loosened.
•
From checking confirmations, it is possible to discover which can be the cause of the problem
which has rendered the removal necessary (for example: oil leakage, abnormal noise, etc.).
•
As regards those sections which require measurements and accurate surveys, which may
be conducted more easily when the assembly is fitted (as for example: the gear fork as-
sembly and hub, the thrust clearance of each gear, etc.:), it is advisable to conduct those
measurements also during removal.
FOR REMOVING AND FITTING THE CONICAL SPRING WASHER
Specification
Desc./Quantity
Total width 75.00 mm
Total width 70.00 mm
Total inside width 65.00 mm
Height 40.00 mm
Thickness 5.00 mm

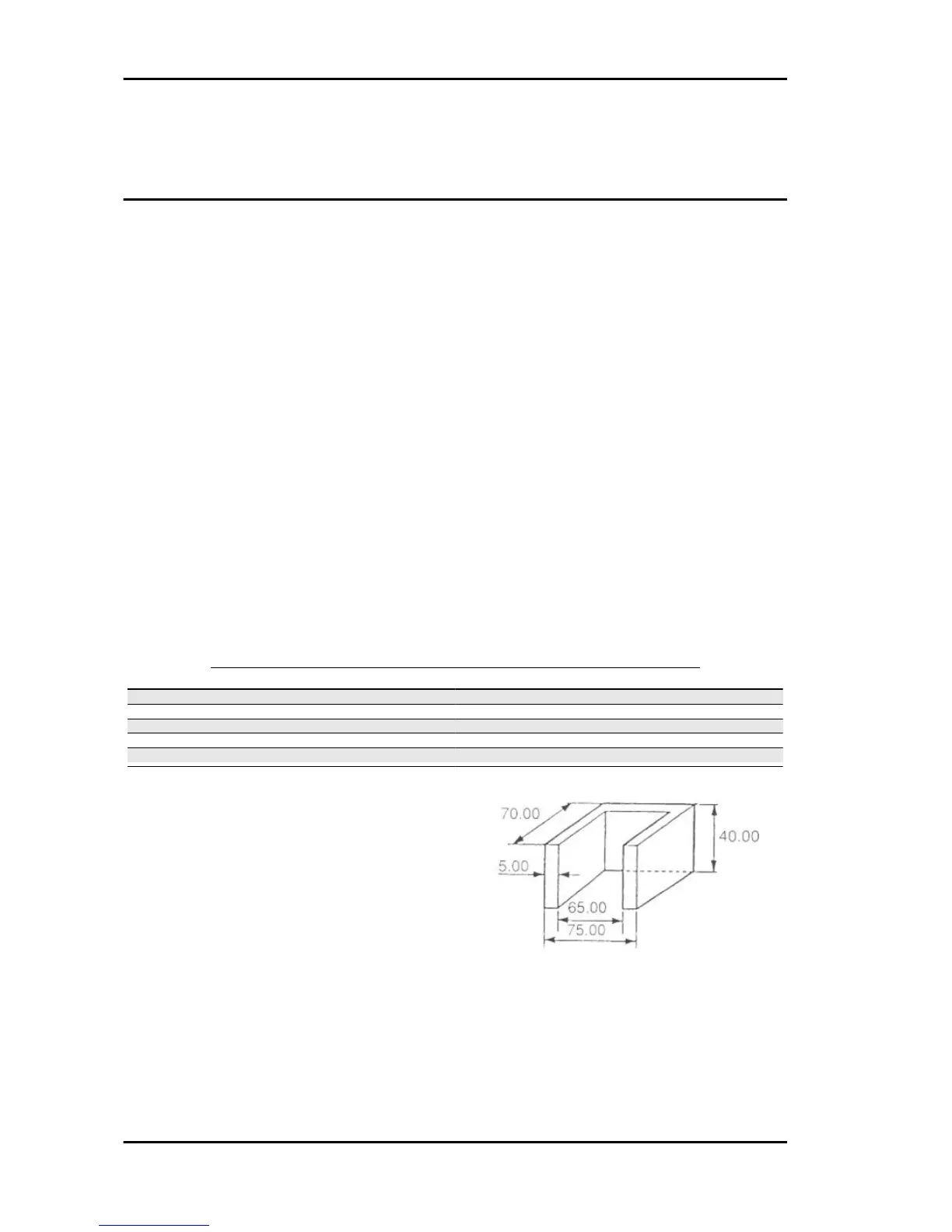

The figure shows positions related to the special
tool Drw. 020277Y - bracket.
Gear-box PORTER 1.3 16V
GE - 546
