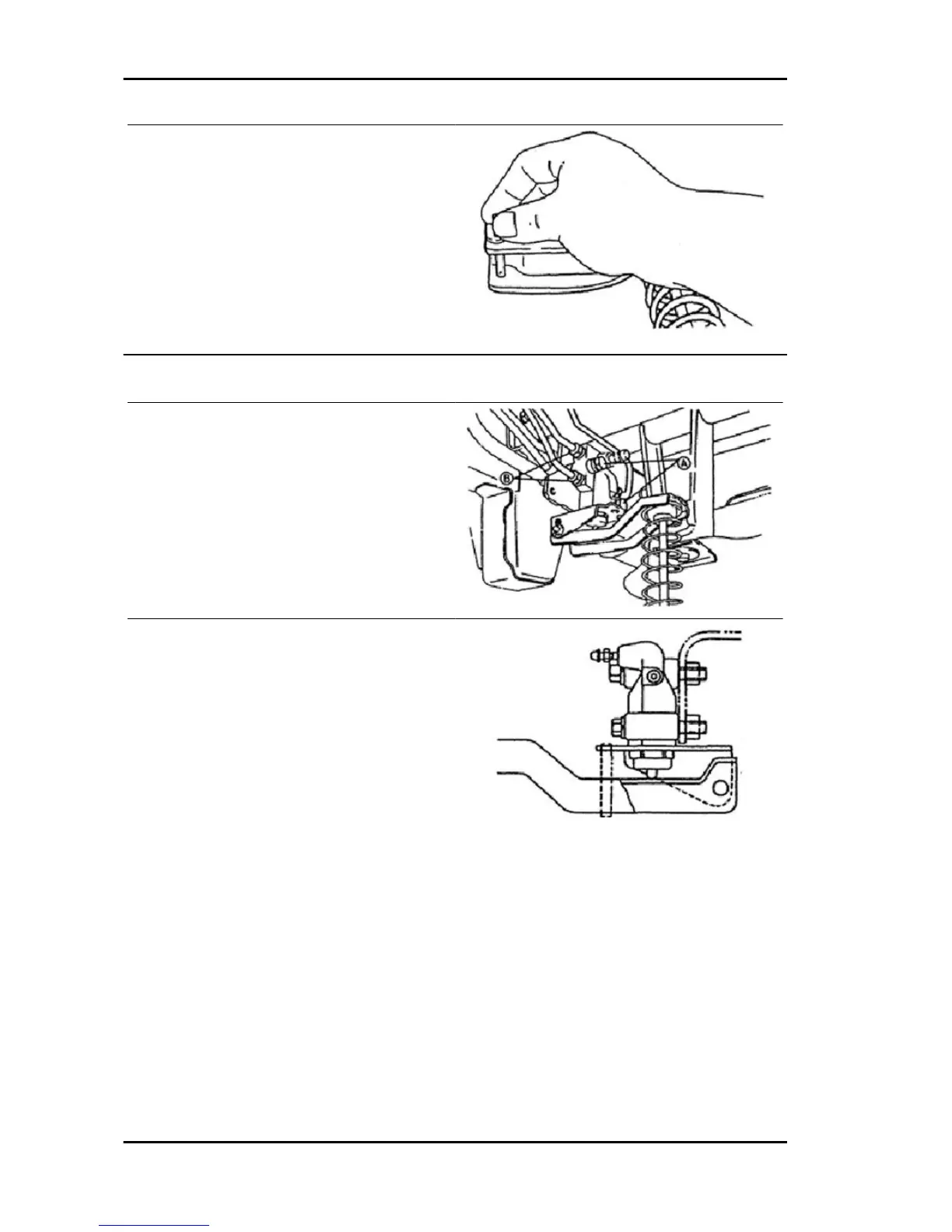

5. Fit the cotter pin
Installation
1. Fit the LSPV unit on chassis A.
Afterwards, connect the brake pipe B.
Tighten to the prescribed torque's.
Locking torques (N*m)
LSPV brake calibrator - Bracket 15 ÷ 22 Brake
calibrator - Brake pipe 13 ÷ 18
2. Fix the LSPV articulation lever to the valve
bracket through a belt or other similar object.
WHILE FIXING, MAKE SURE THAT THE PISTON END
COMES INTO CONTACT WITH THE ARTICULATION LEV-
ER COMPLETELY.
Arrange the weight on the rear axle as in the table:
DO NOT EXCEED 10 KG OF DIFFERENCE BETWEEN RIGHT AND LEFT
Characteristic
Rear axle weight for Pickup
363 ±5 Kg
Rear axle weight for Van
417±5 Kg
Braking system PORTER 1.3 16V
BS - 652
