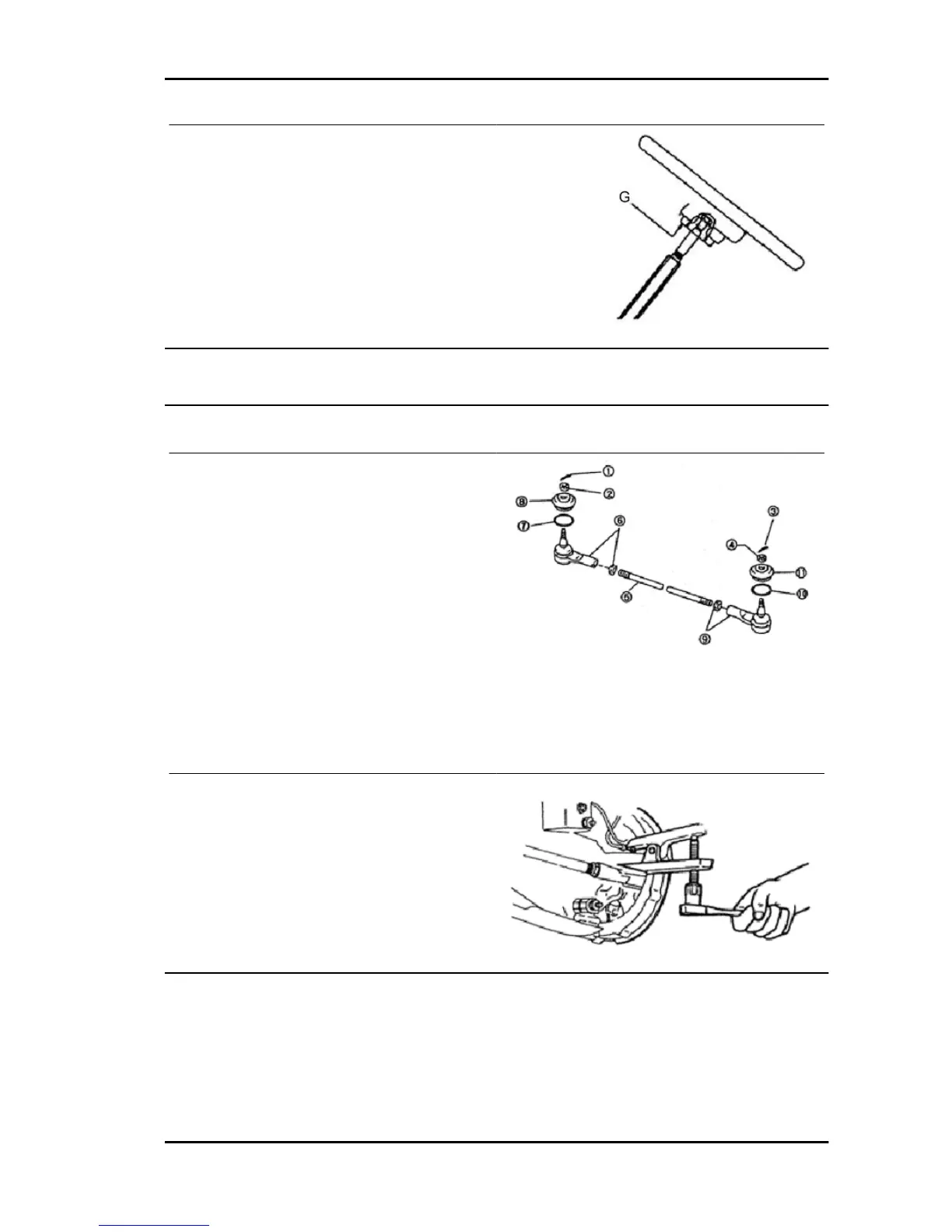

9. Apply grease at the indicated point G.
Tie-rods
Removal
Remove the parts, following the numerical order of
the figure shown below.
1. Cotter pin
2. Nut
3. Cotter pin
4. Nut
5. Tie rods
6. Arm head
7. Dust-protection ring
9. Arm head
10. Ring
11. Dust guard
1. Lift the vehicle with a jack.
2. Remove the tie rod assembly using the special
tool.
Specific tooling
020231Y Extractor for articulated heads
PORTER 1.3 16V Steering column
SC - 681
