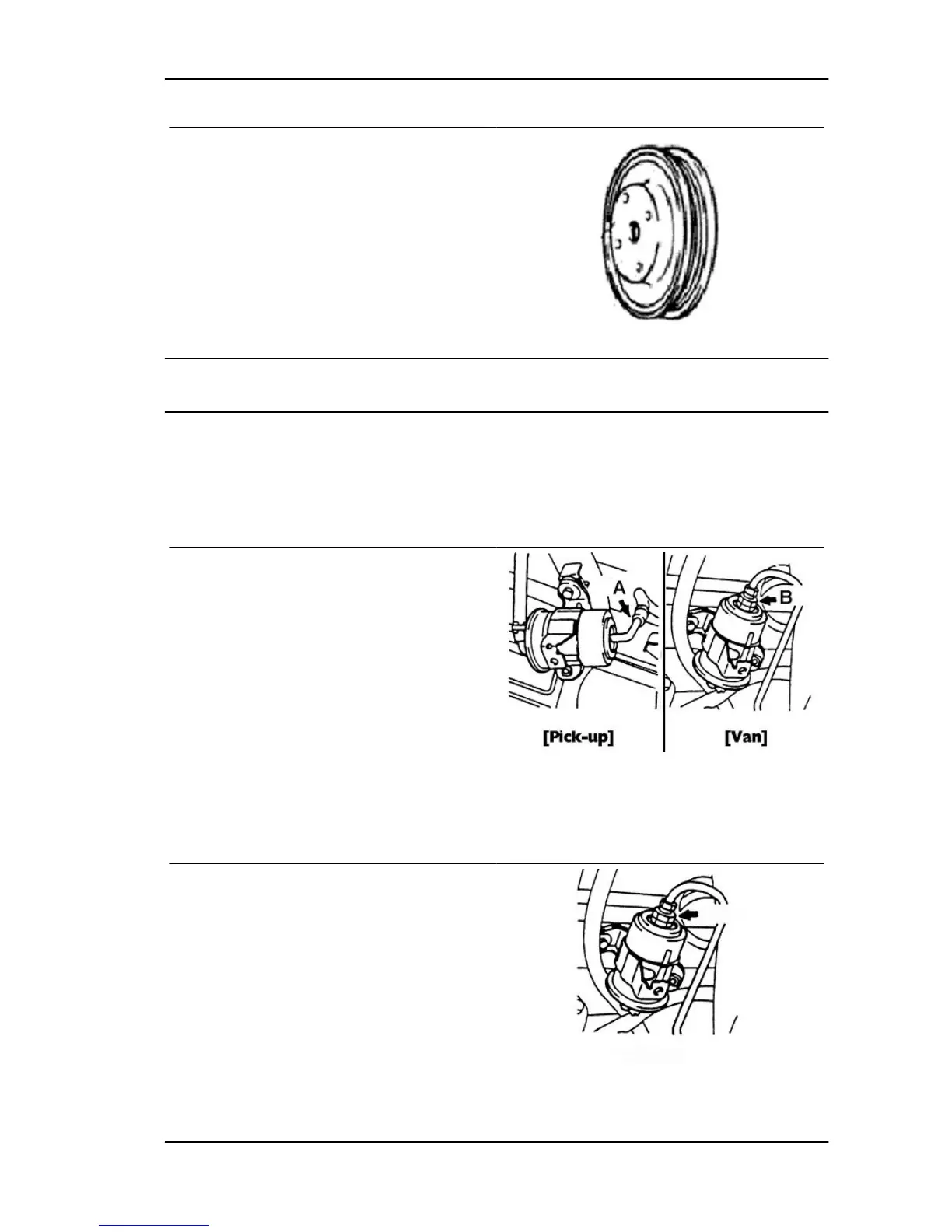

Water pump pulley test
1. Visually check the water pump pulley.
•
Check the water pump pulley attach-
ment seat for deformations or worn
areas.
•
Check the belt groove for deformations
or worn areas. Replace the water
pump pulley, if necessary.
Injection fuel system
Fuel filter
Fuel filter
Fuel filter replacement
- DO NOT OPERATE NEAR NAKED FLAMES. DO NOT WORK NEAR THE OPEN TANK. FAILURE
TO OBSERVE THIS INDICATIONS CAN CAUSE FIRE.
1. Check the ignition switch is placed on OFF.
2. Open the fuel tank cap.
3. Place a collecting container or a cloth under the
fuel filter.
4. Loosen the fuel filter nut slowly, avoiding fuel
splashes.
- HOLD THE FUEL FILTER WITH A WRENCH OR SIMILAR
OBJECT TO PREVENT ITS ROTATION.
- CAREFULLY AVOID FUEL SPLASHES ON THE BODY-
WORK OR RUBBER PARTS, ETC., SINCE FUEL LEAKAGE
WILL BE PROFUSE.
KEY:
A= Fuel
B= Filter
5. Disconnect the pipe clamp from the fuel filter.
6. Disconnect the fuel pipe from the filter.
7. Remove the pipe clamp and fit a new one.
8. Remove the fuel filter unscrewing both fastening
bolts.
9. Install the new fuel filter screwing both fastening
bolts.
Locking torques (N*m)
Cylinders lock for water inlet 5.9 ÷ 8.8 Nm
10. Connect the pipe to the fuel filter, fasten the new clamp in the correct position.
PORTER 1.3 16V Engine
EN - 361
