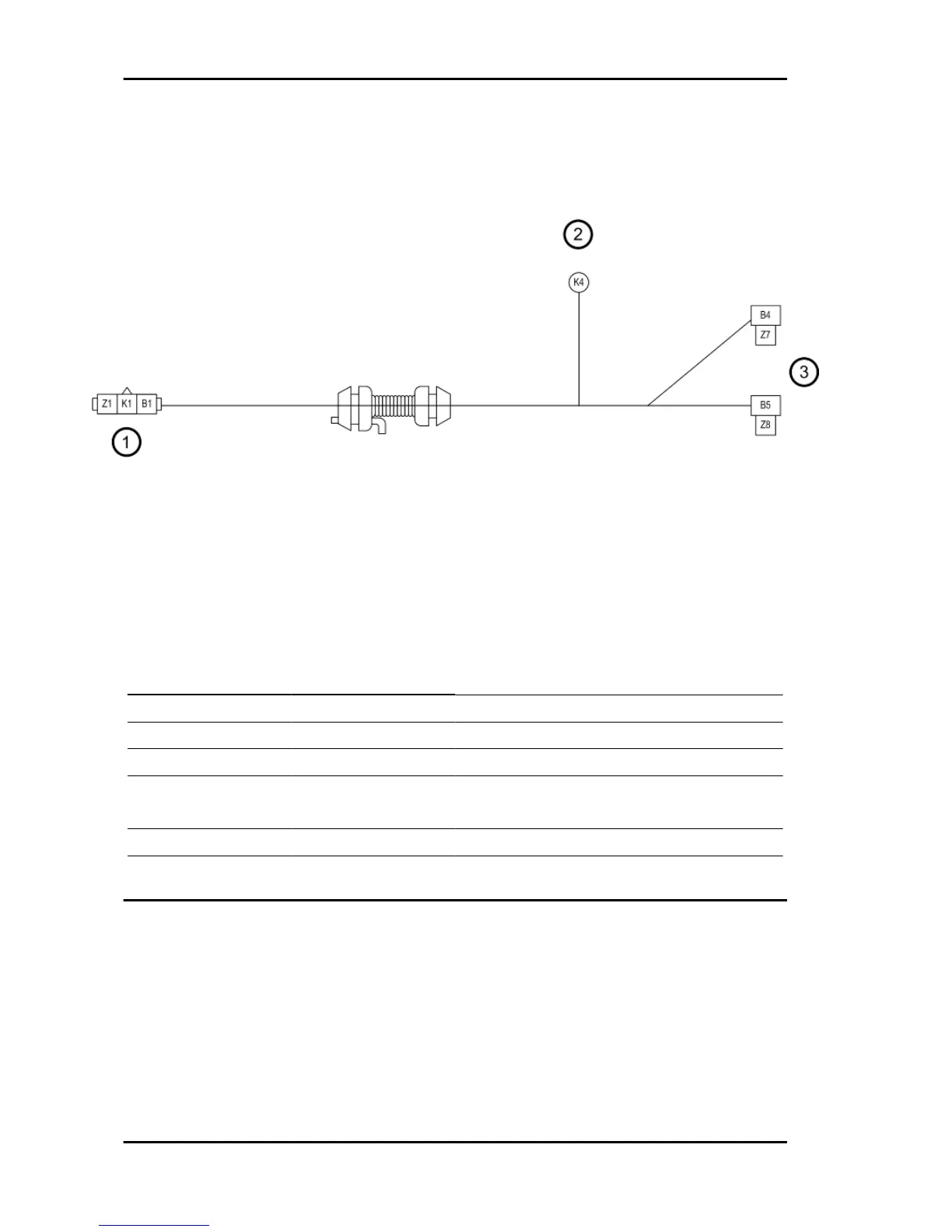

Tail door cable harness No.1 (Van)
1. To the chassis cable harness
2. Heated rear window defroster
3. License plate light
From A
Position Terminal Terminal Position
Light switch B1 B4 License plate light (+)
License plate light (+) B4 B5 License plate light (+)
Heated rear window defroster
switch
K1 K4 Heated rear window defroster
(+)
Chassis ground Z1 Z7 License plate light (-)
License plate light (-) Z7 Z8 License plate light (-)
Electrical system PORTER 1.3 16V
ES - 186
