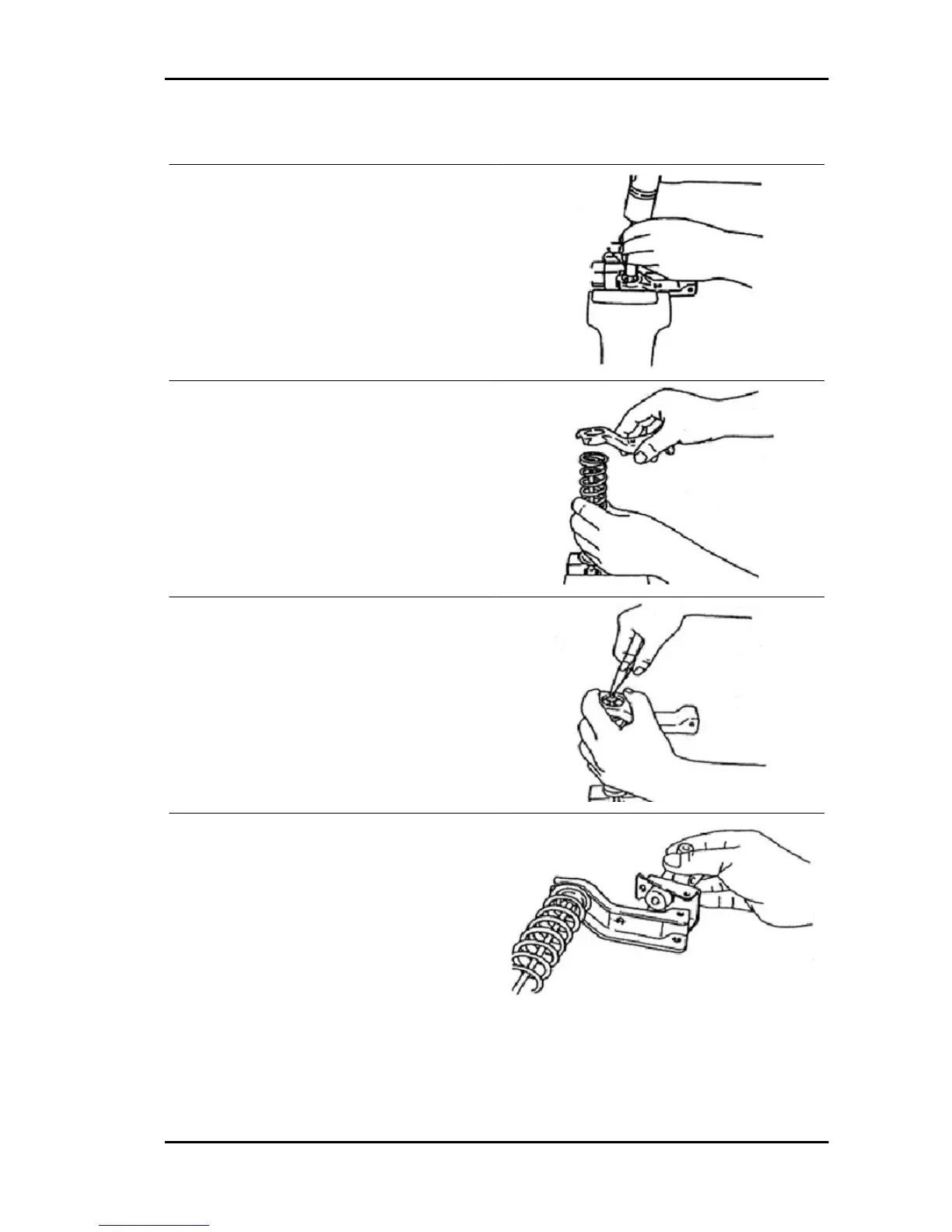

Lspv assembly
1. Fit the new guide bushing, with the special tool.
Specific tooling
020196Y Clutch guiding tool
2. Assemble the following parts on the bar:
•
Spring stop
•
Spring
•
Valve adjustment lever
•
Guide bushing
•
Washer
3. Fit the new cotter pin
4. Fit the LSPV with the bracket on the control lever
and fit the pin.
PORTER 1.3 16V Braking system
BS - 651
