Smontaggio
Inspection

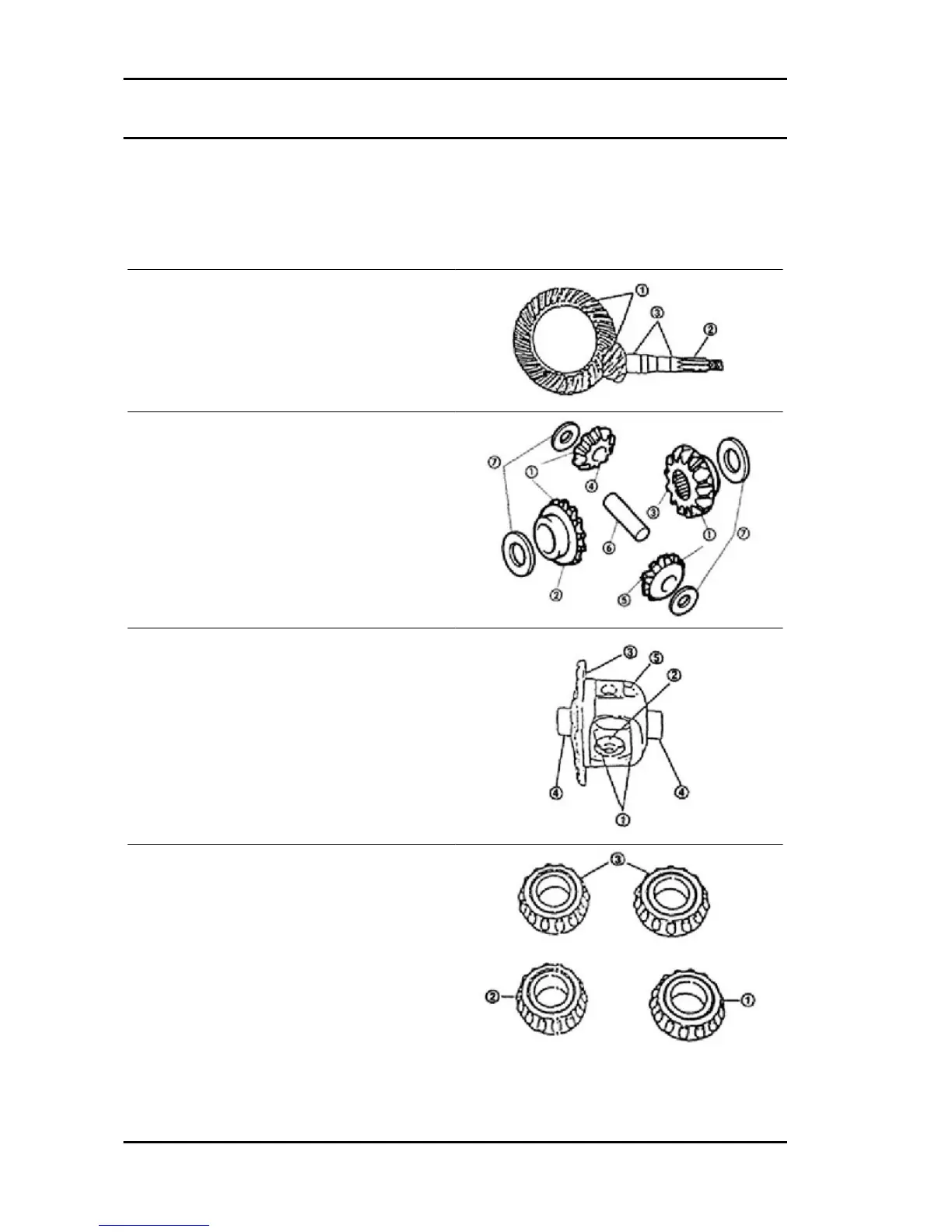

Check each section of the following parts, searching for possible damage, wear or excessive clearance.
Replace all the defective parts.
Control pinion and crown gear
1. Gear teeth
2. Pinion grooved section
3. Bearing seat
Side pinion gear and pinion
1. Gear teeth
2. Side pinion gear hub section
3. Side pinion gear toothed section
4. Pin shaft adjustment hole
5. Differential housing of the crown wheel gear
6. Pinion shaft
7. Thrust washer
Differential housing
1. Contact section of the side pinion gear hub (pin-
ion and crown)
2. Pinion contact section
3. Crown gear attachment section
4. Coupling section, bearing side
5. Differential housing
Bearings
1. Front bearing
2. Rear bearing
3. Side bearing
Make sure that bearings turn freely without jam-
ming or noise.
