Smontaggio - Montaggio pianale ribaltabile
Tipper removal
Brake the vehicle.
Lift the tipper via the button located in the cab up
to its maximum height.

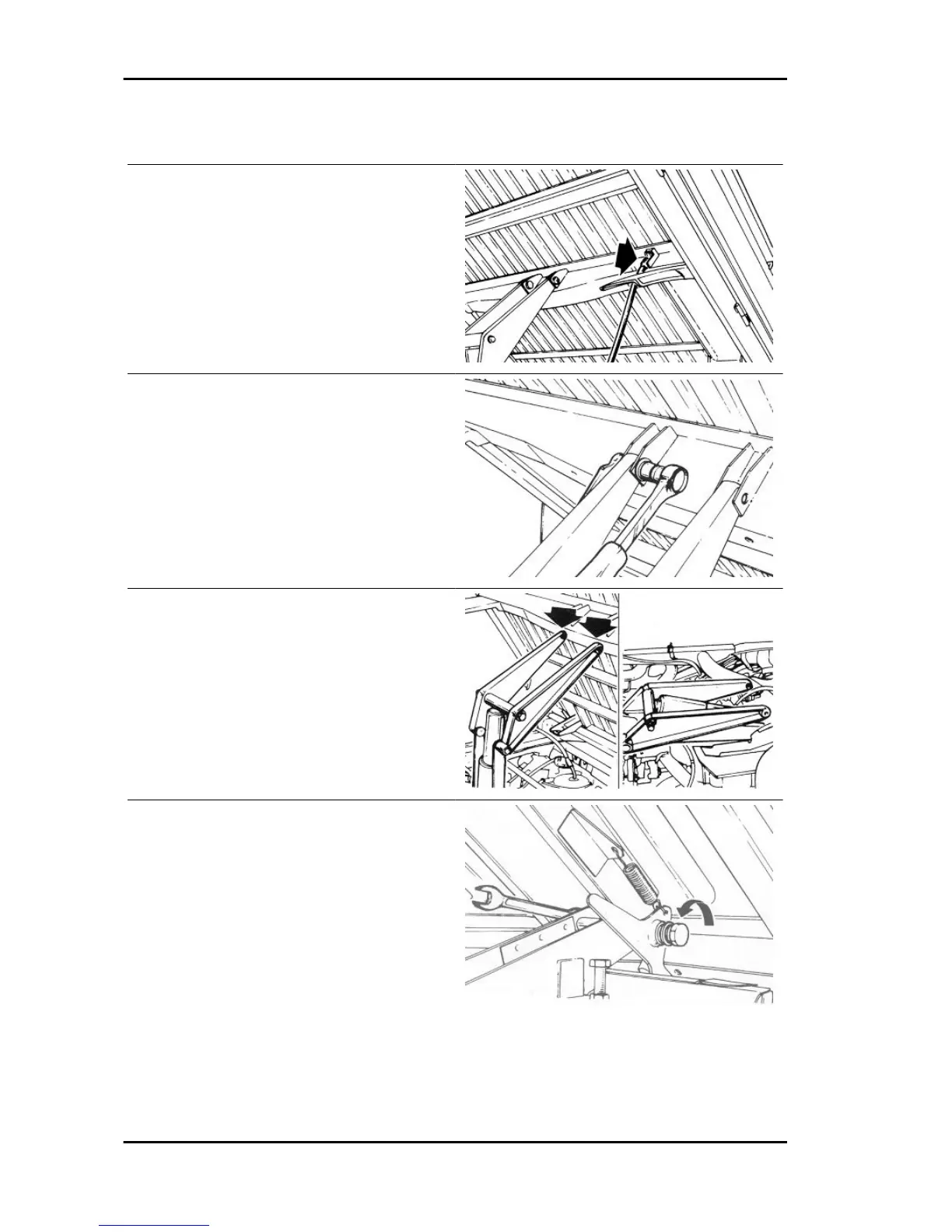

Insert the safety rod as in the figure, afterwards,
slightly lower the tipper so that the weight is un-
loaded onto the rod.
Remove the two clamps which connect the tipper
to the lifting arm.
Press and hold down the button for the descent,
cause the lifting arm to fold by applying force on it
so as to simulate the force applied by the tipper
during regular operation.
MAKE SURE THAT THE THRUST PISTON RE-ENTERS
COMPLETELY.
At this stage, the only constraint to removing the
tipper is the two hinges shown in the figure.
With the two spanners, remove the nut and release
the spring. Do not remove the pin during this op-
eration.
Tipper version PORTER 1.3 16V
VR - 728
