If clearance values calculated exceed the values
allowed, replace the valve guide and valve.
Valve springs
Valve spring check

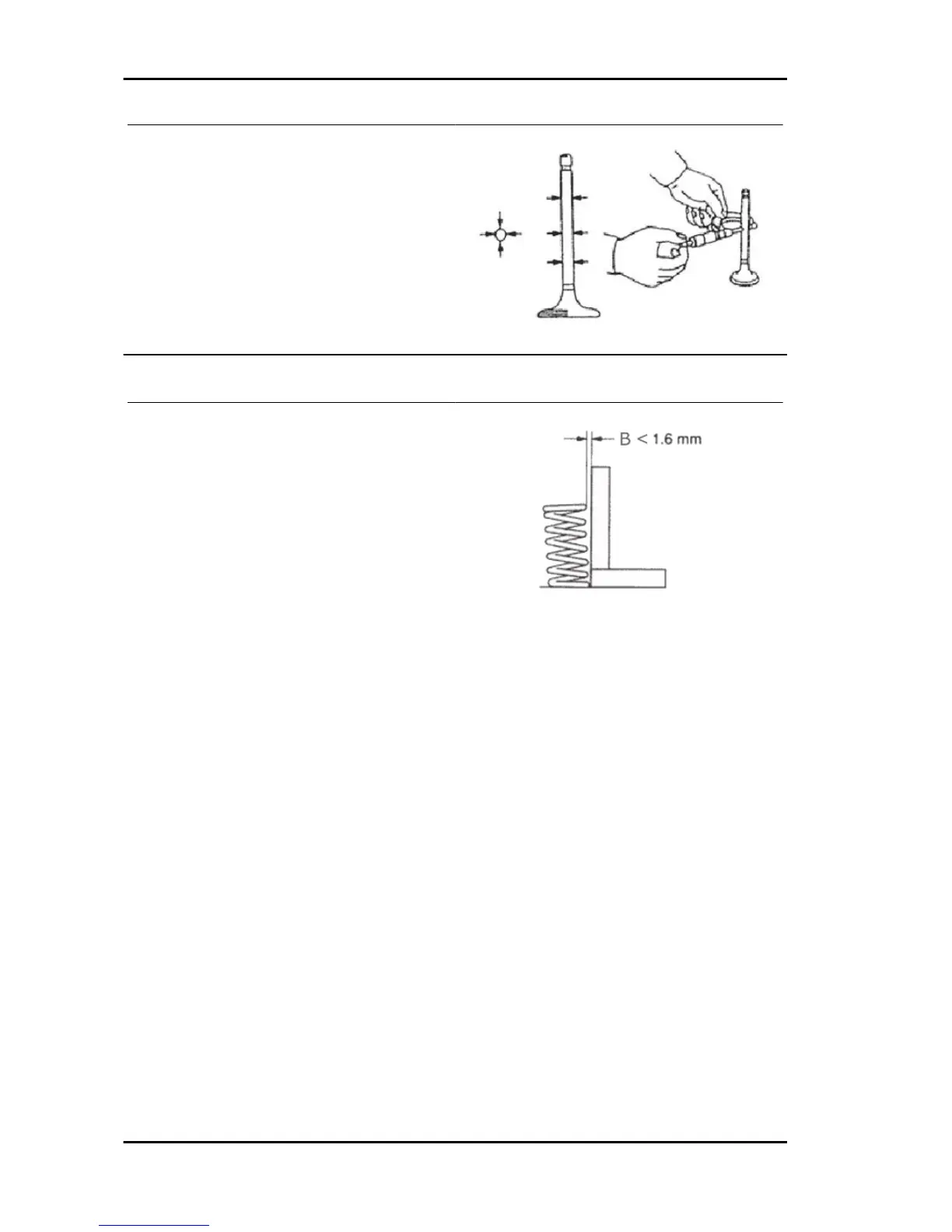

1. Check the valve spring obliquity, with a carpen-
ter's square.
Characteristic
Valve spring maximum out of square
< 1.6 mm
KEY:
B = Lower than 1.6 mm
If the inclination exceeds the maximum limit, replace the valve spring.
2. With the special tool measure the unloaded length and tension of the valve spring.
Characteristic
Valve spring minimum unloaded length (marked in PINK)
43.9 mm
Valve spring minimum unloaded length (marked in ORANGE)
46.1 mm
Valve spring preloading (marked in PINK)
244.9 N to 38.0 mm (Standard fitting height)
Valve spring preloading (marked in ORANGE)
208.9 N to 38.0 mm (Standard fitting height)
Engine PORTER 1.3 16V
EN - 274
