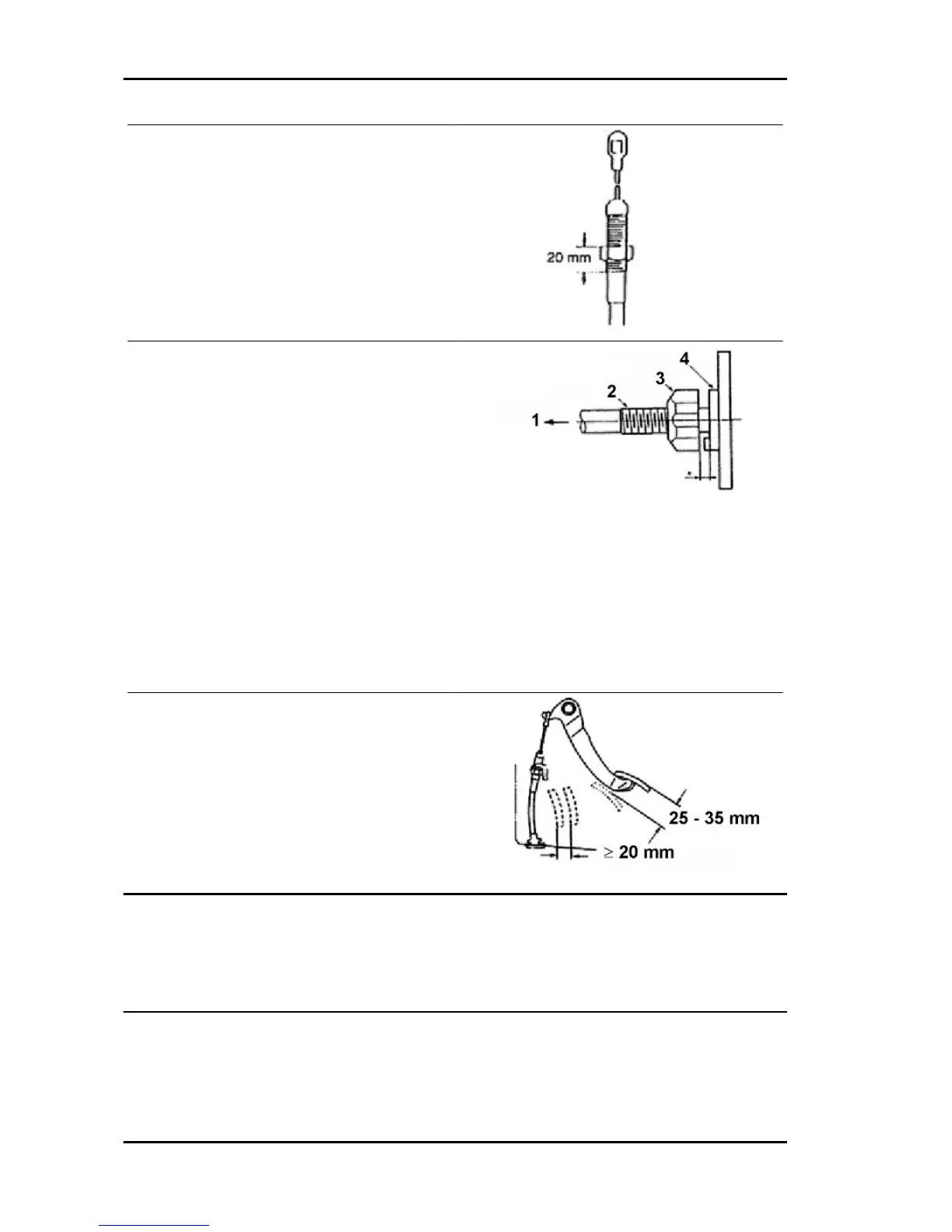

Free and residual travel of the pedal
1. Pull the sheath towards the bottom. Then, turn
the adjusting nut until reaching the position shown
in the figure.
Characteristic
Nut position:
20 mm
2. Position the adjusting nut, gear side, as follows:
Pull the cable with a force of 19.6 - 39.2 N in the
direction indicated by the arrow. At this stage, turn
the set nut until the interval between the adjusting
nut and the cable guide ring reaches the value 2.5
- 4 mm. Lock the adjusting nut, after aligning the
cable guide ring protrusion with the grooves of the
nut.
KEY:
1. Front
2. Sheath
3. Nut
4. Ring
3. Check the following adjustment values. Pedal
residual travel: 25 - 35 mm Pedal residual travel:
not less than 20 mm (Distance between the point
where the clutch is detached and the stop vertical
line).
Lubrication system
This section of the manual provides information to check the proper operation of the lubrication system.
The removal and fitting operations are described as well.
Engine PORTER 1.3 16V
EN - 348
