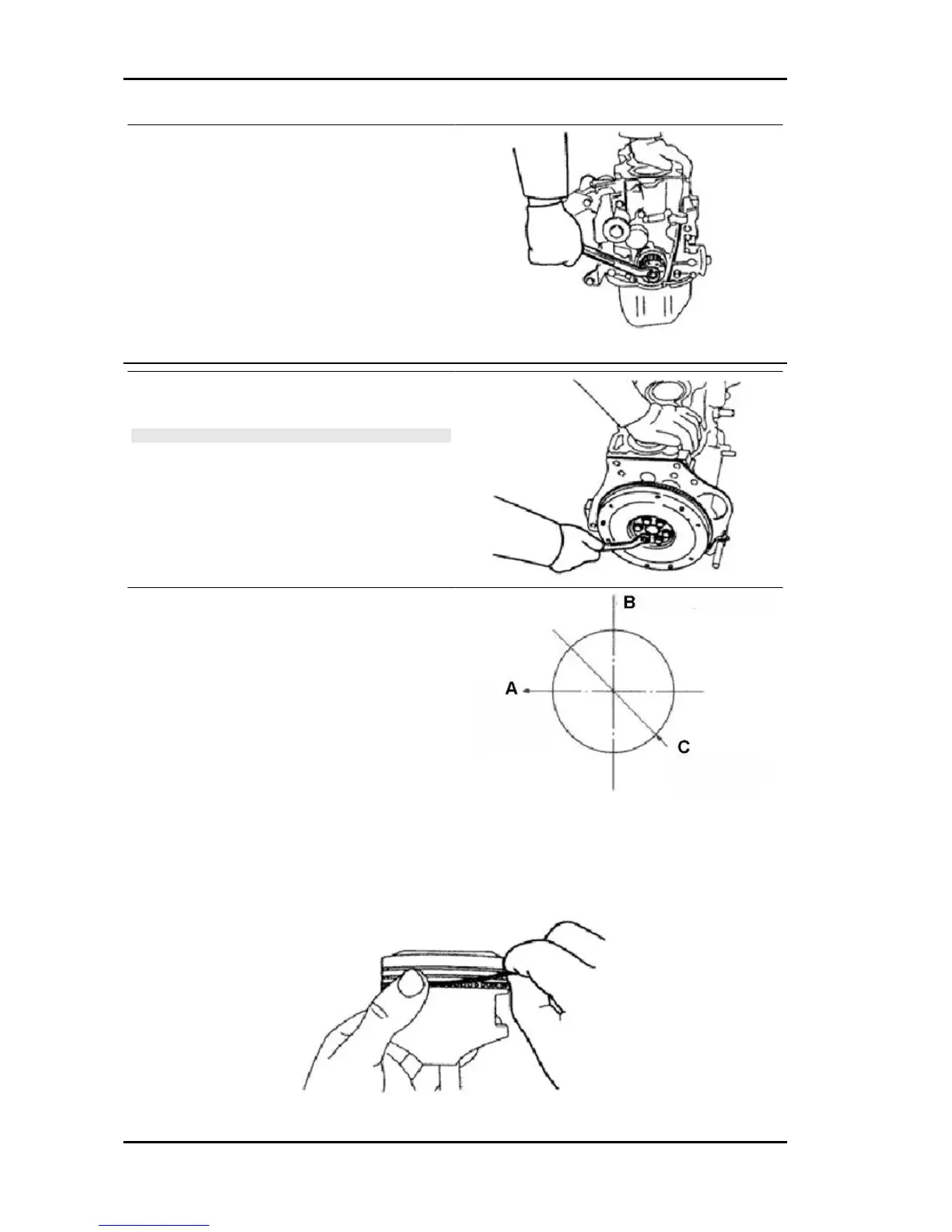

Fitting the timing pinion fixing screw
Fit the timing pinion fixing screw Tighten the screw
to the specified torque.
- AVOID THE ROTATION OF THE CRANKSHAFT BY USING
THE SPECIAL TOOL BELOW.
Specific tooling
020184Y FLYWHEEL LOCKING TOOL
Locking torques (N*m)
Crankshaft - Crankshaft belt pulley 88÷98
Piston and connecting rod fitting
Temporarily fit the flywheel on the crankshaft.
N.B.
- DO NOT LUBRICATE SCREWS AND THREADED HOLES
OF THE FLYWHEEL.
1. Fit the oil scraper spring in the relevant seat.
Make sure that the end is positioned as in the fig-
ure.
- DO NOT OPEN THE SPRING MORE THAN NECESSARY.
2. Fit the oil scraper upper ring, so that it fits in the spring edge.
- MAKE SURE THAT THE END OF THE RING IS MOVED 90° TO THE RIGHT WITH RESPECT TO
THE SPRING END.
- DO NOT EXTEND THE RING MORE THAN NECESSARY.
- MAKE SURE THAT THE OIL SCRAPER RING CAN BE EASILY TURNED.
Engine PORTER 1.3 16V
EN - 332
