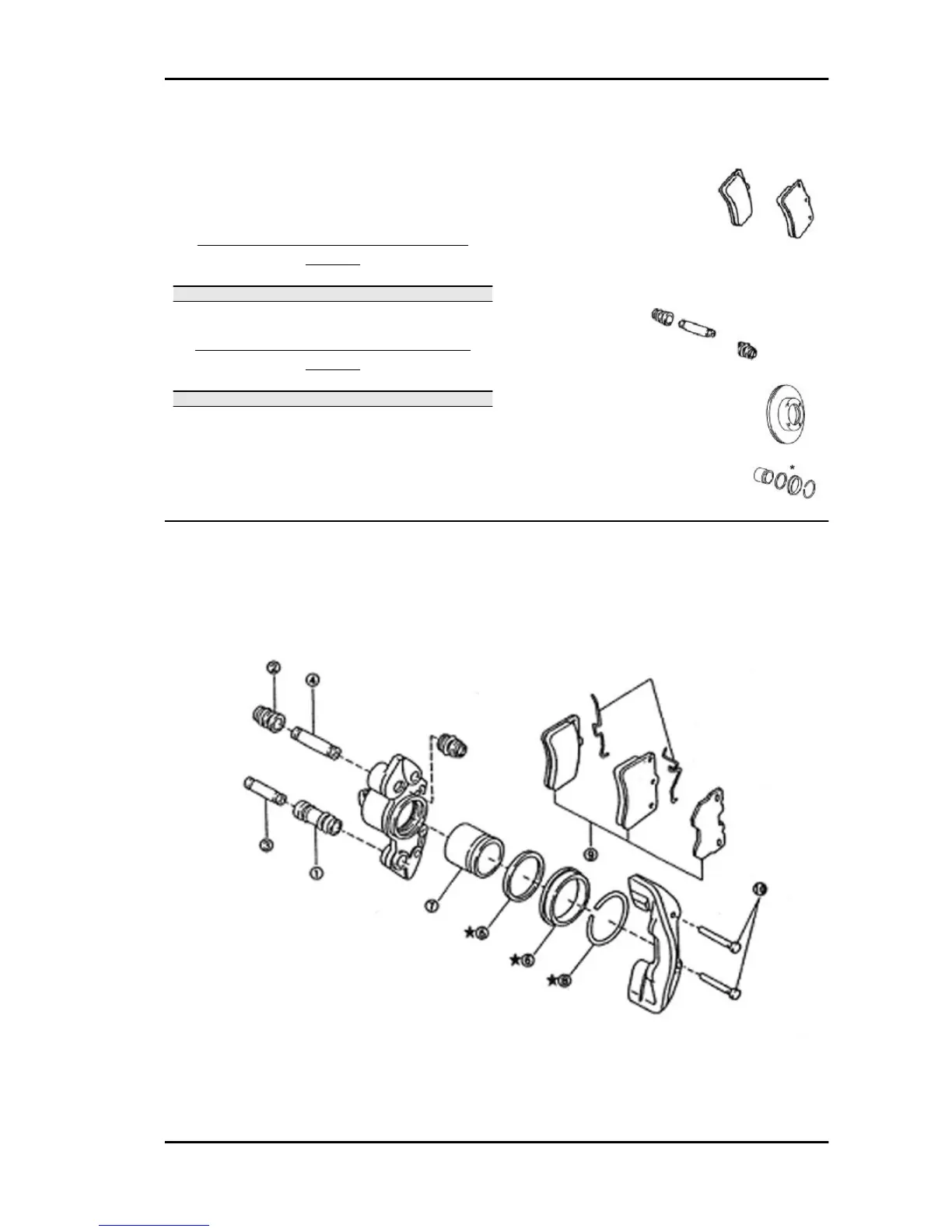

Inspection
Check the pads and brake discs. Always replace
parts indicated with *.
PAD THICKNESS AND IRREGULAR
WEAR:
Specification Desc./Quantity
Specified thickness: 9 mm
Limit: 1 mm
DISC THICKNESS AND IRREGULAR
WEAR:
Specification Desc./Quantity
Specified thickness: 16 mm
Limit: 5 mm
Refitting
Assembly
Assemble the parts, following the numerical order illustrated.
KEY:
1. Bushing
2. Pin cover
PORTER 1.3 16V Braking system
BS - 627
